Distributor: Locations

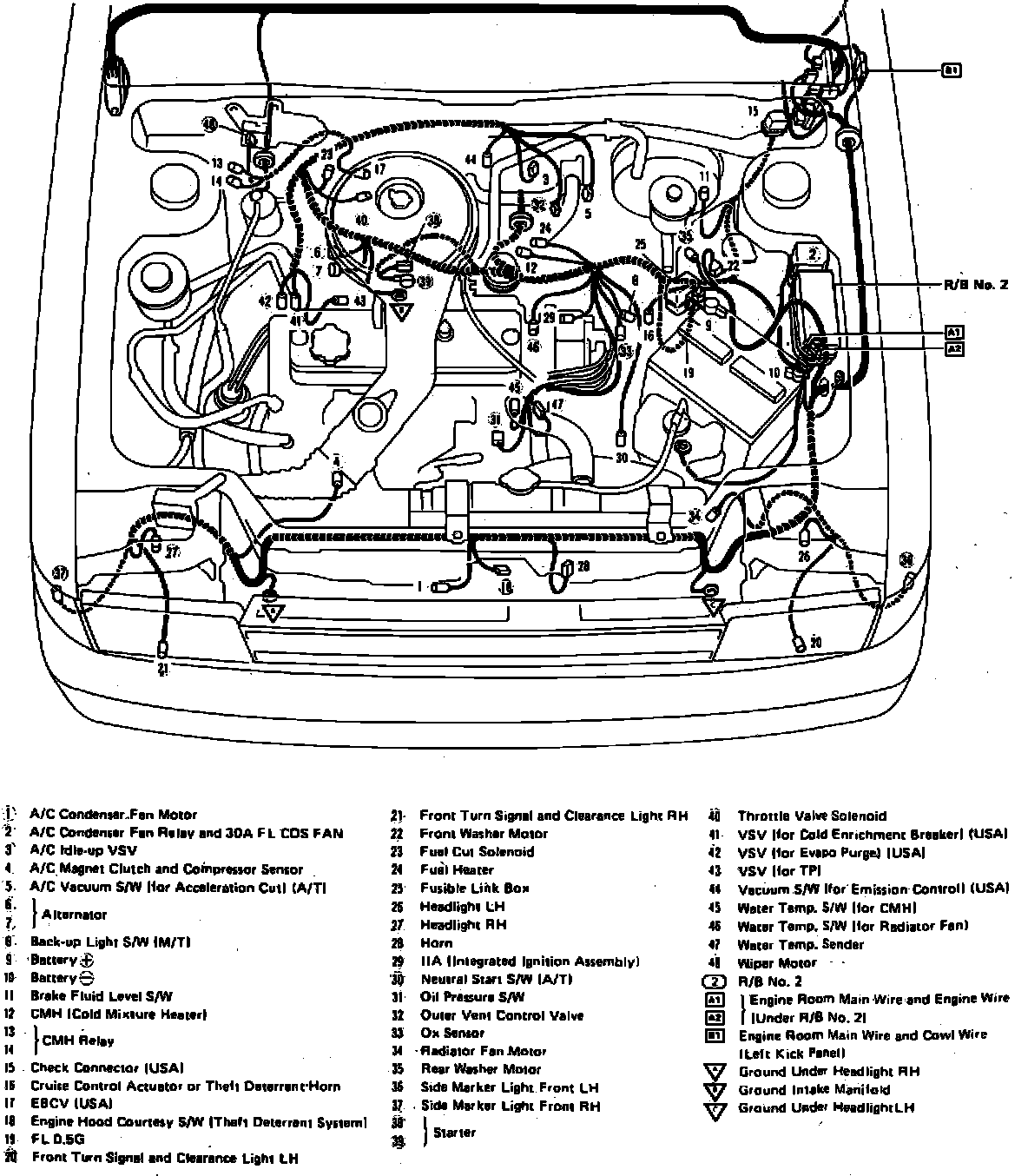

Engine Compartment Connectors.:




Top Rear Of Engine

Applicable to: 1987 Tercel Sedan

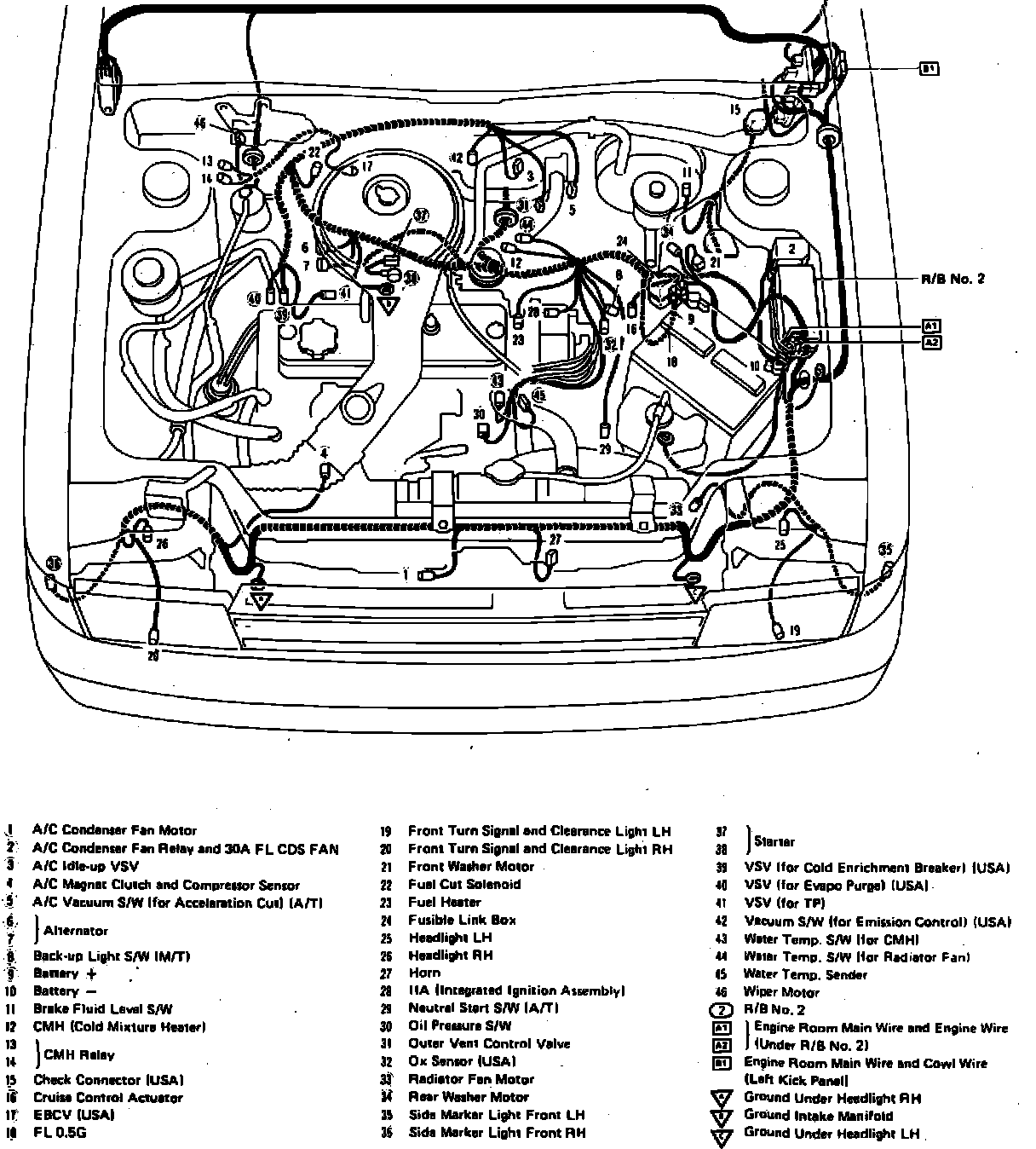

Engine Compartment Connectors.:




Top Rear Of Engine

Applicable to: 1988 Tercel Sedan
