Toyota
>>
1987
>>
Van Wagon 2WD L4-2237cc 2.2L (4Y-EC)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
A/T Technical Data
A/T Technical Data

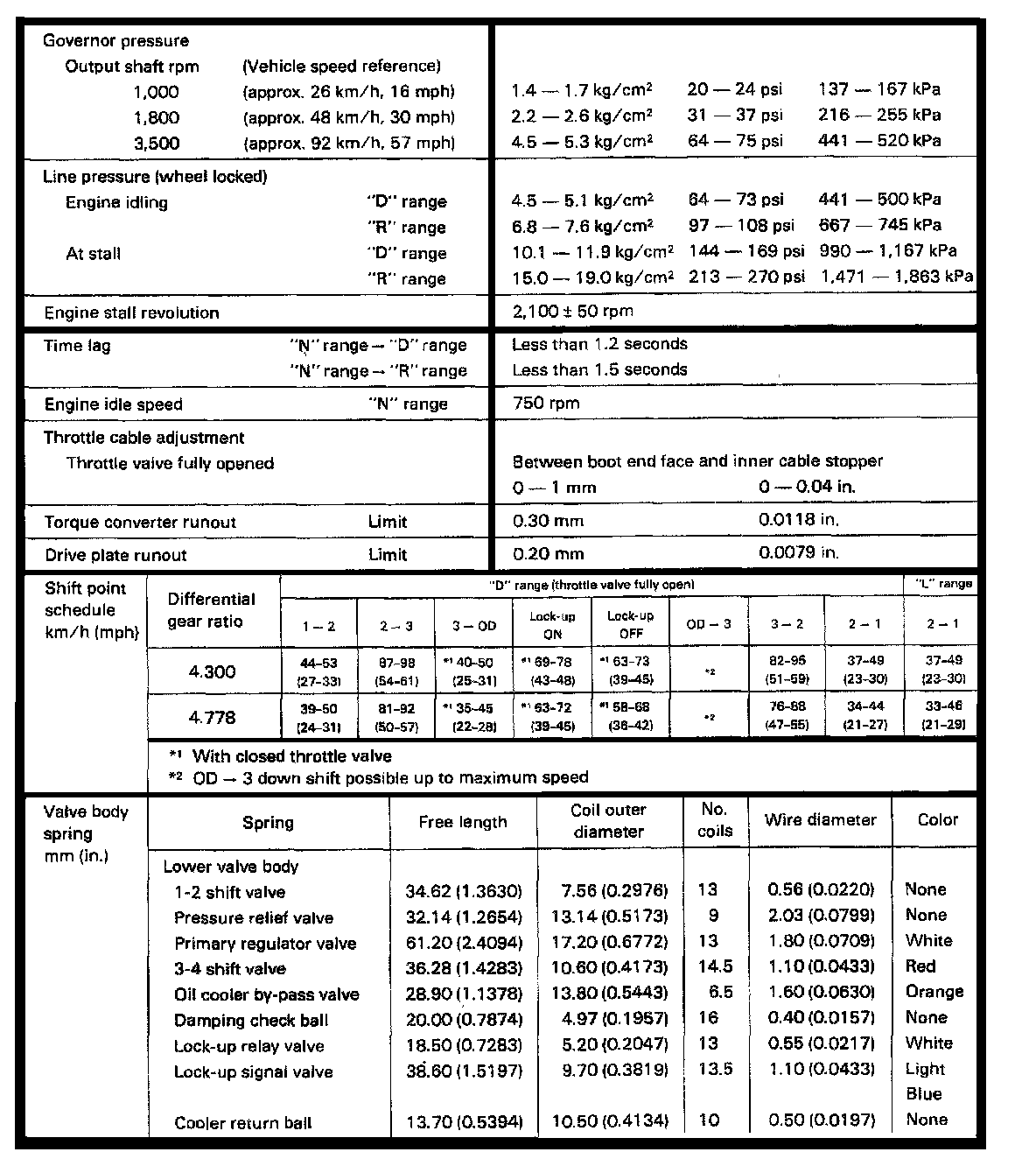

A45DL/DF 3-spd O/D A/T, Line Pressure/Shift Point:

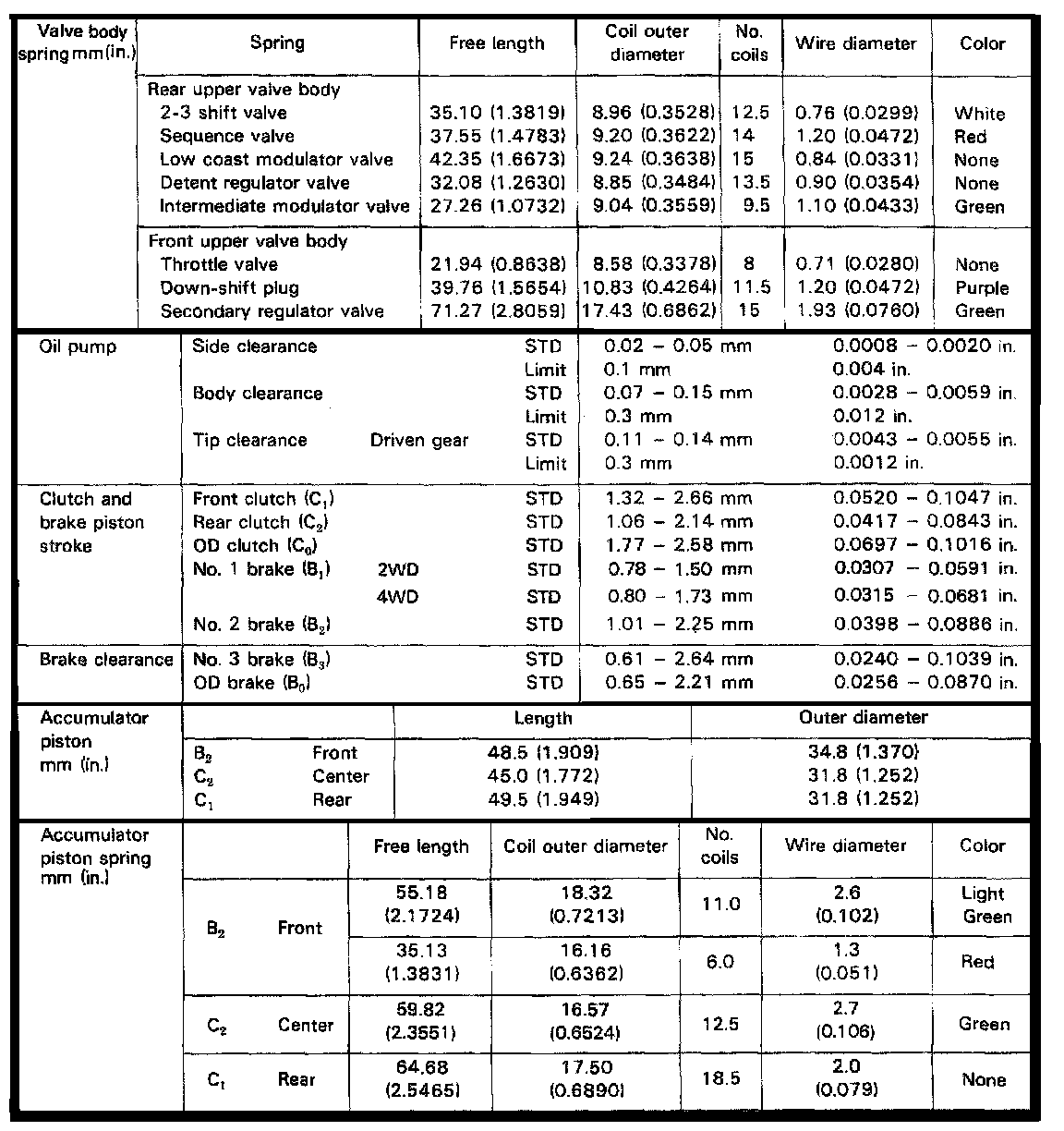

A45DL/DF 3-spd O/D A/T, Valve Body/Clutch & Brake Clearance:

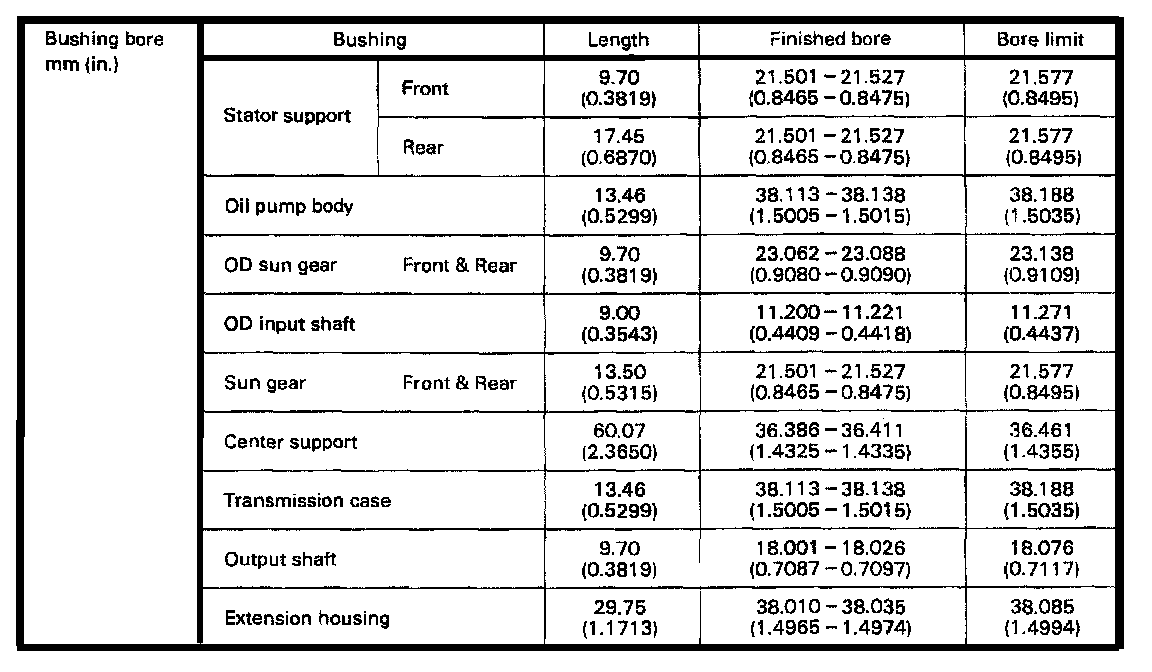

A45DL/DF 3-spd O/D A/T, Bushing Clearance/Tolerance:
