Torque Specifications

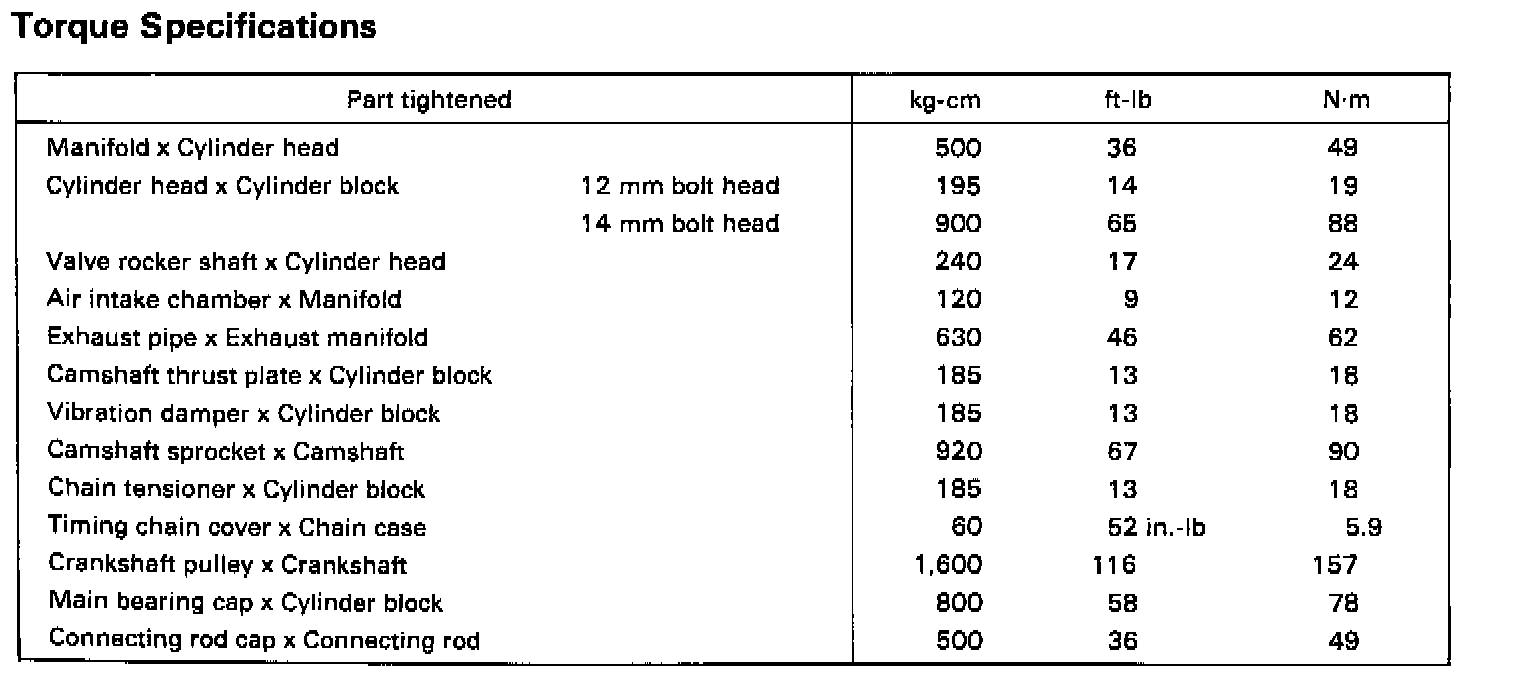

Torque Chart 4Y-EC:

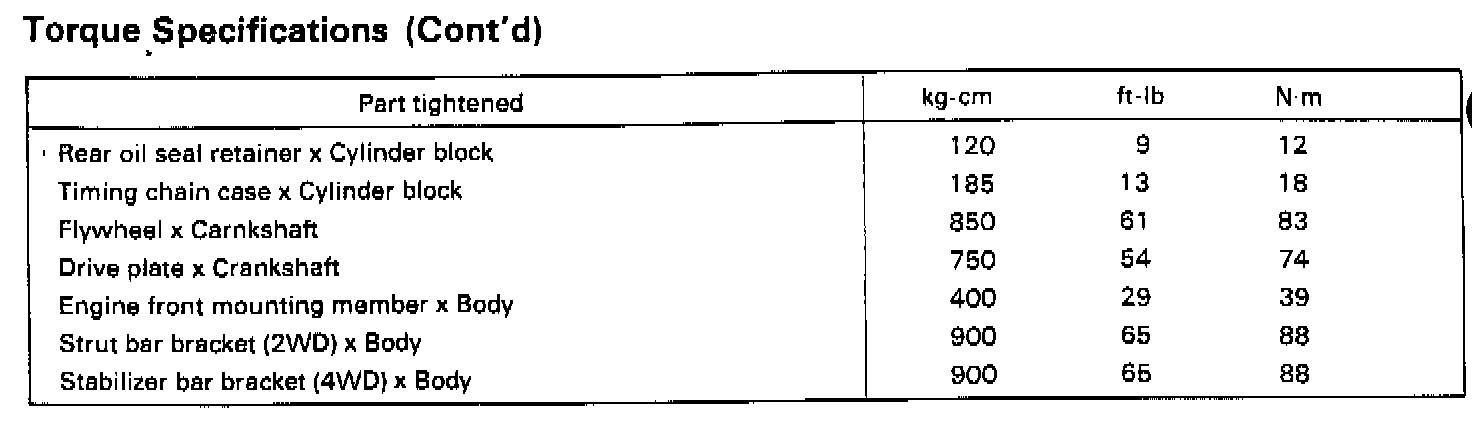

Torque Chart 4Y-EC (Cont.):

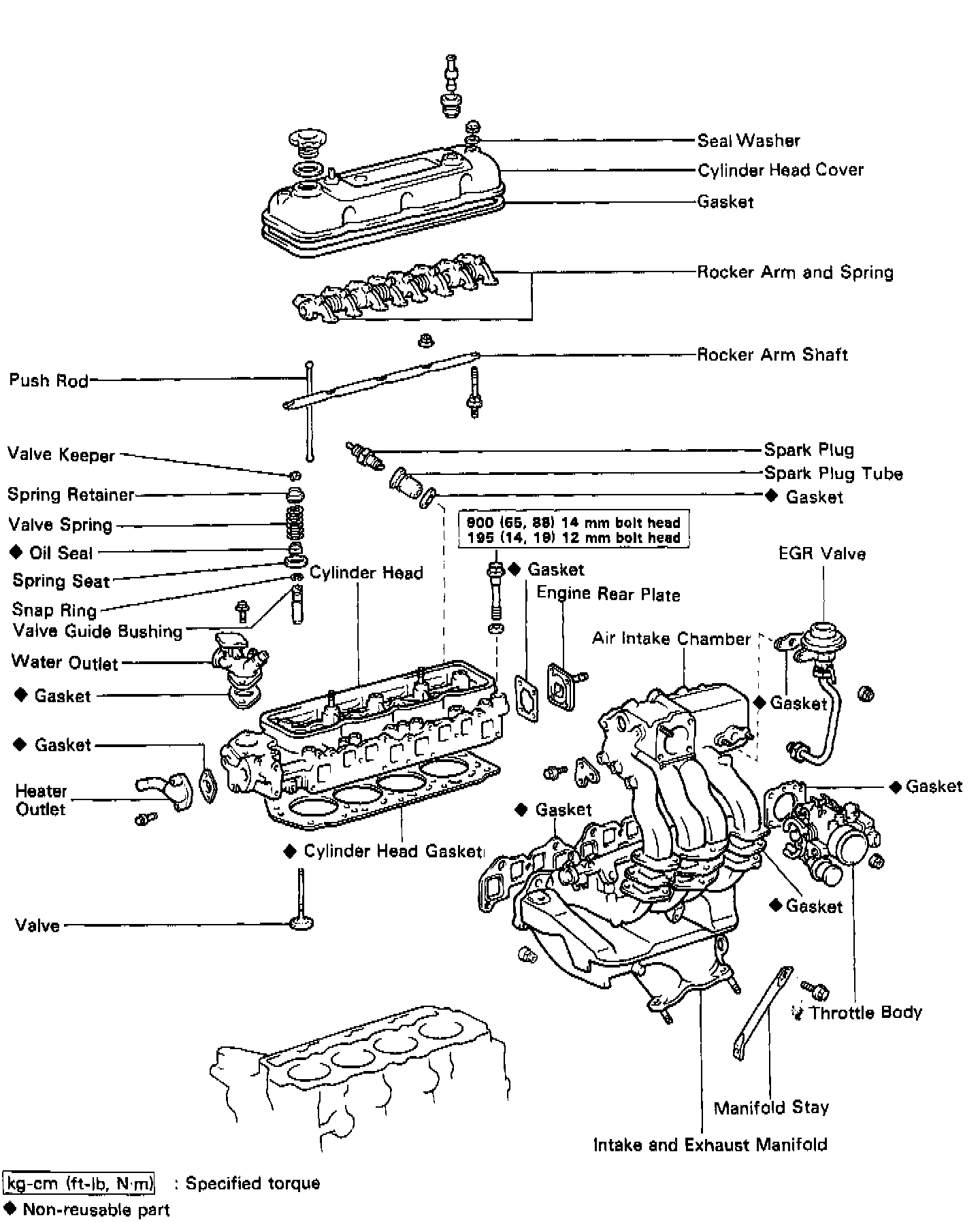

Upper Engine Torque Values 4Y-EC:

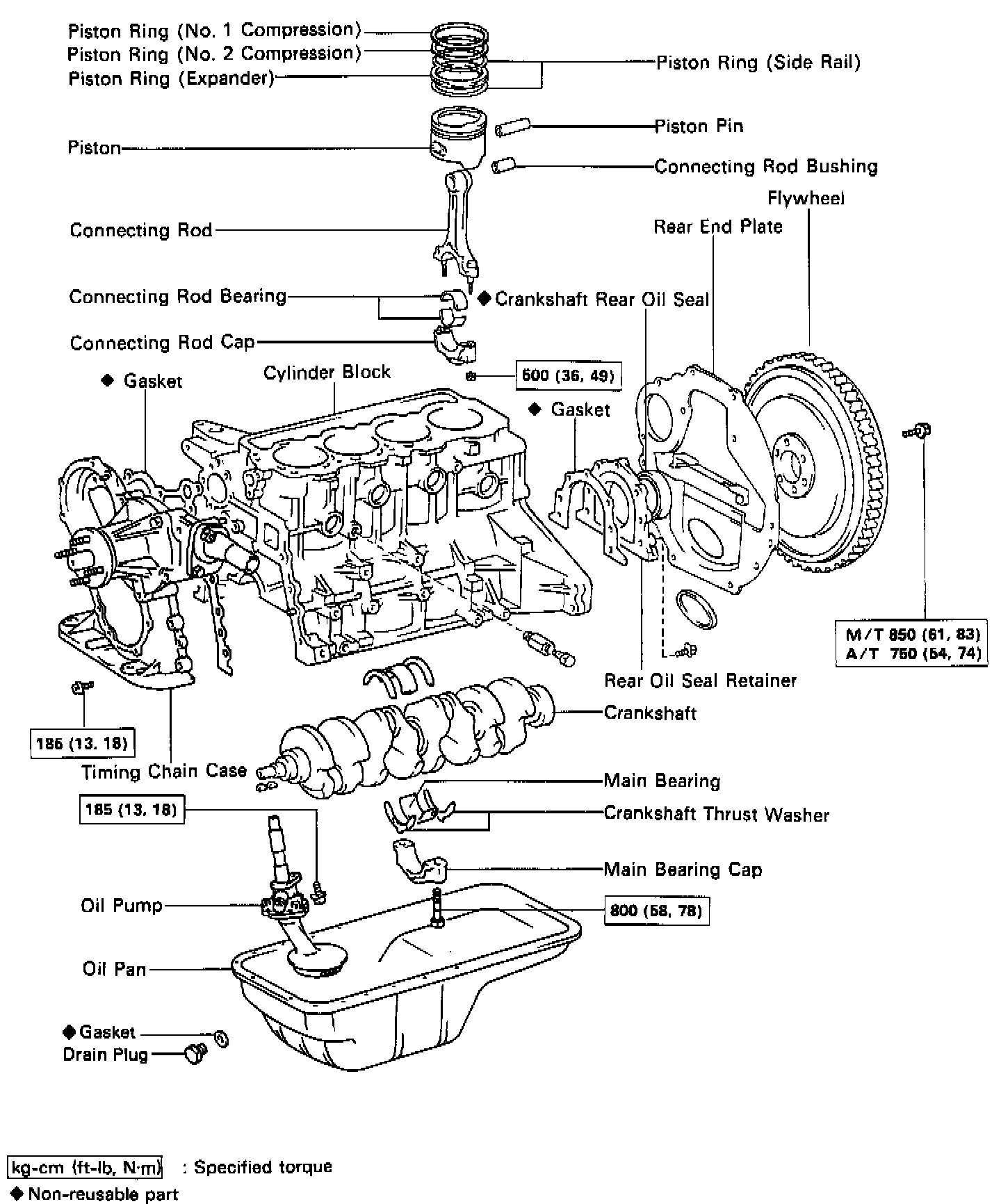

Lower Engine Torque Values 4Y-EC:

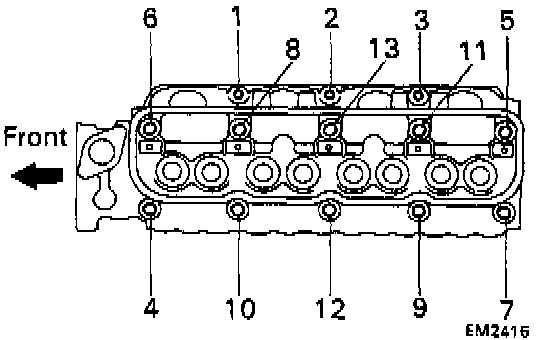

Head Loosening Sequence:

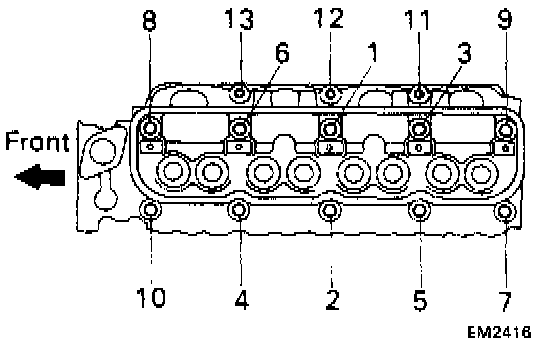

Head Tightening Sequence:

Main Bearing Torque Sequence:

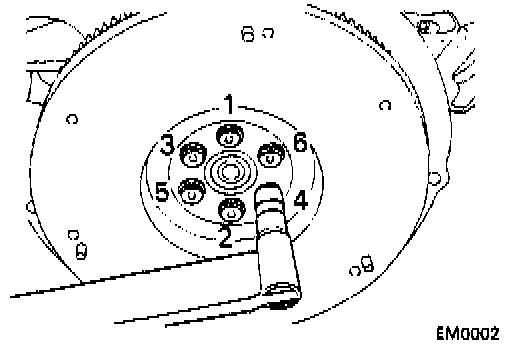

Flywheel Torque Sequence:
