Oxygen Sensor: Testing and Inspection

INSPECTION OF OXYGEN SENSOR

1. WARM UP ENGINE.
Allow the engine to reach normal operating temperature.






2. INSPECT FEEDBACK VOLTAGE (VF).
Connect the positive (+) probe of a voltmeter to terminal VF of the check connector, and negative (-) probe to terminal E1.

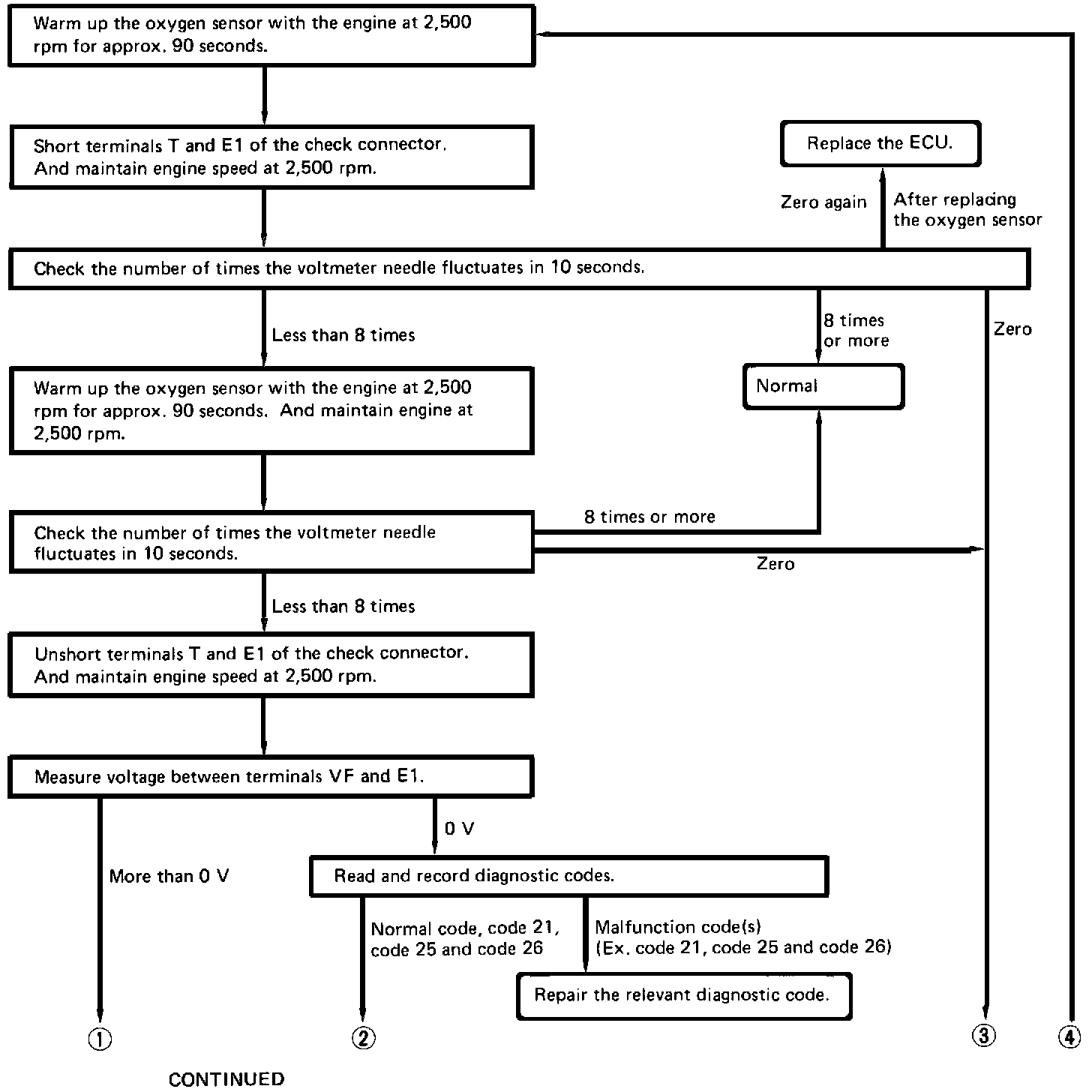

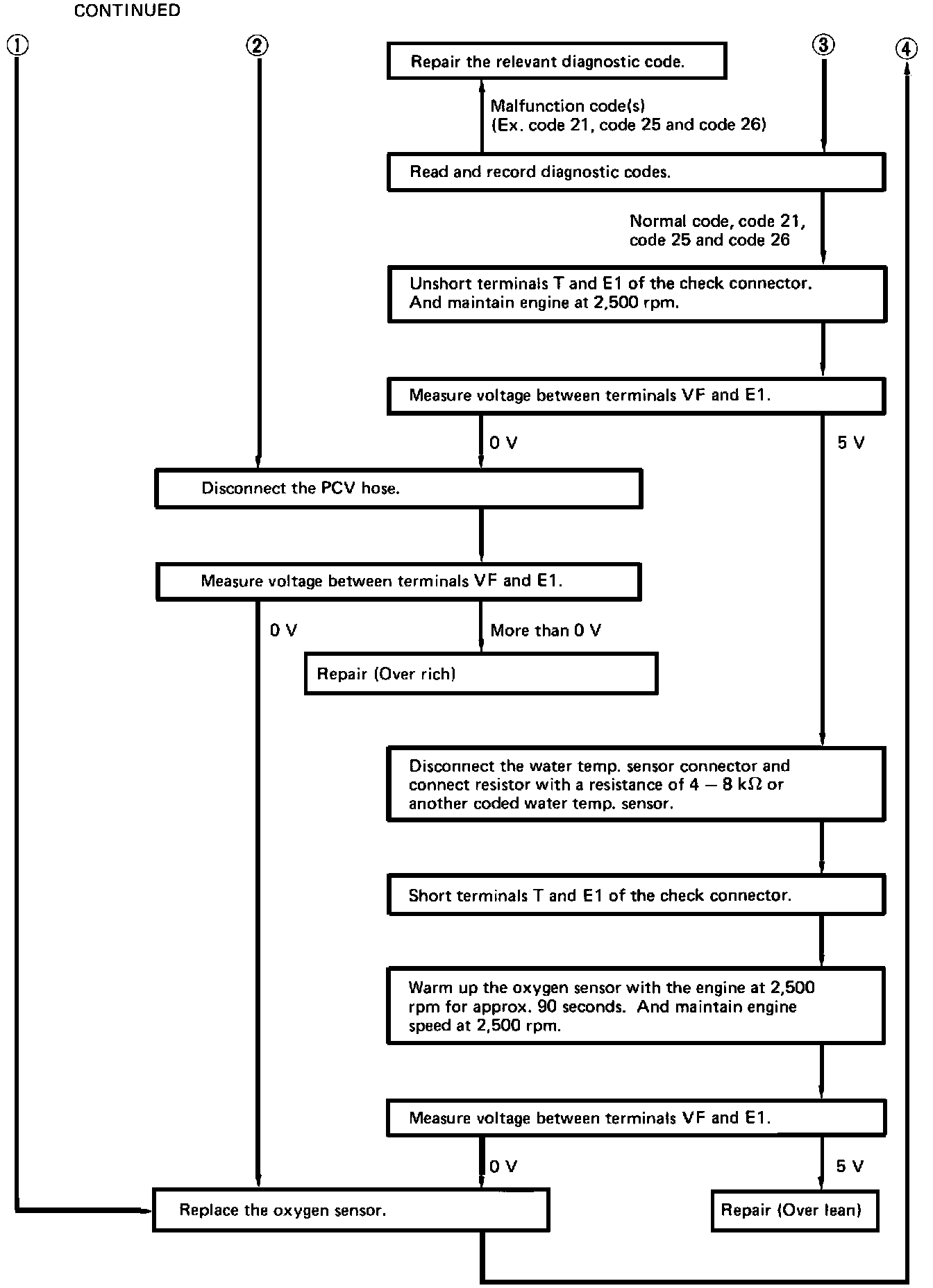

Perform the test as shown in flow charts.
