Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1988
>>
Celica 2WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Service Specifications
Service Specifications

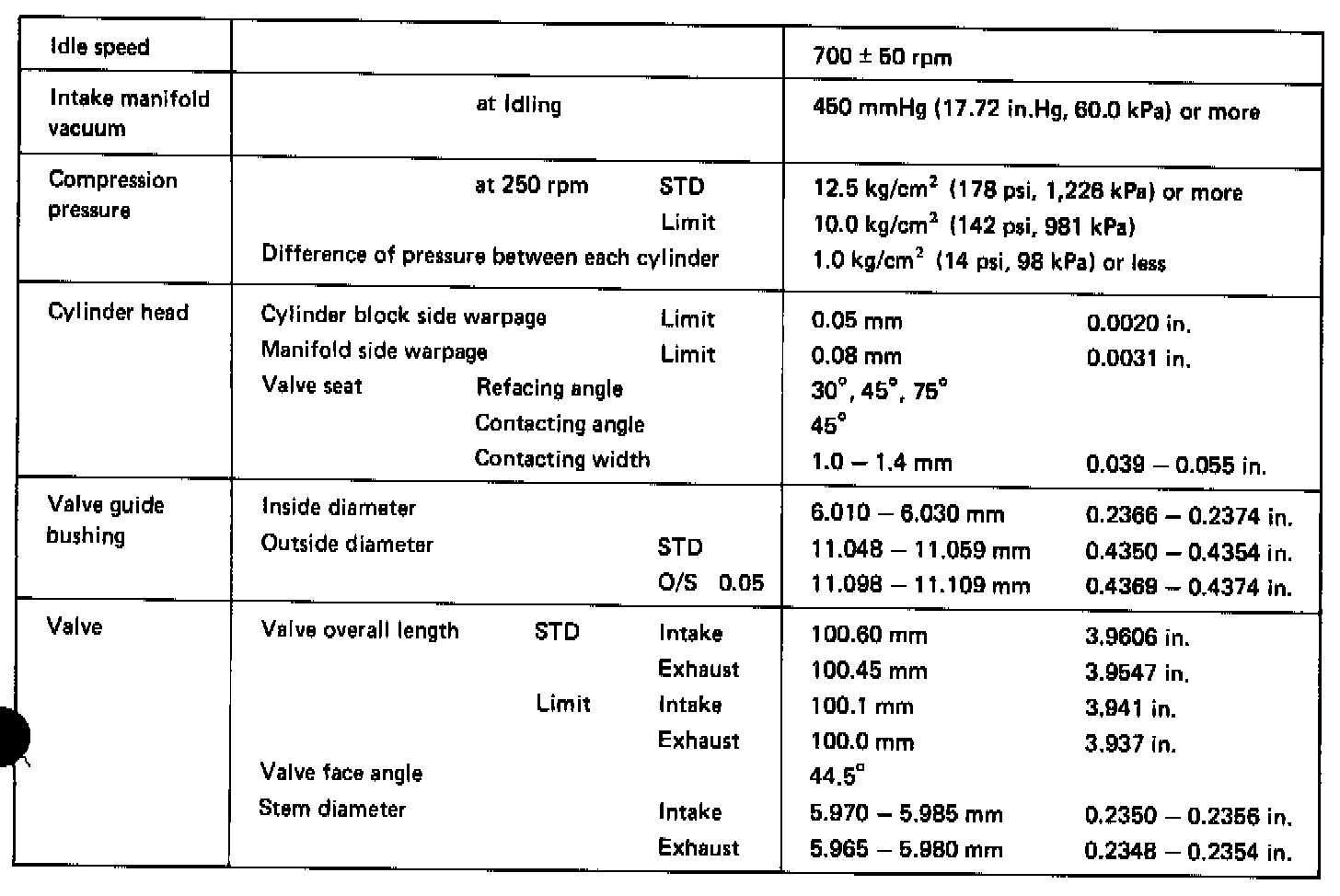

3S-FE Mechanical Specifications (1 Of 3):

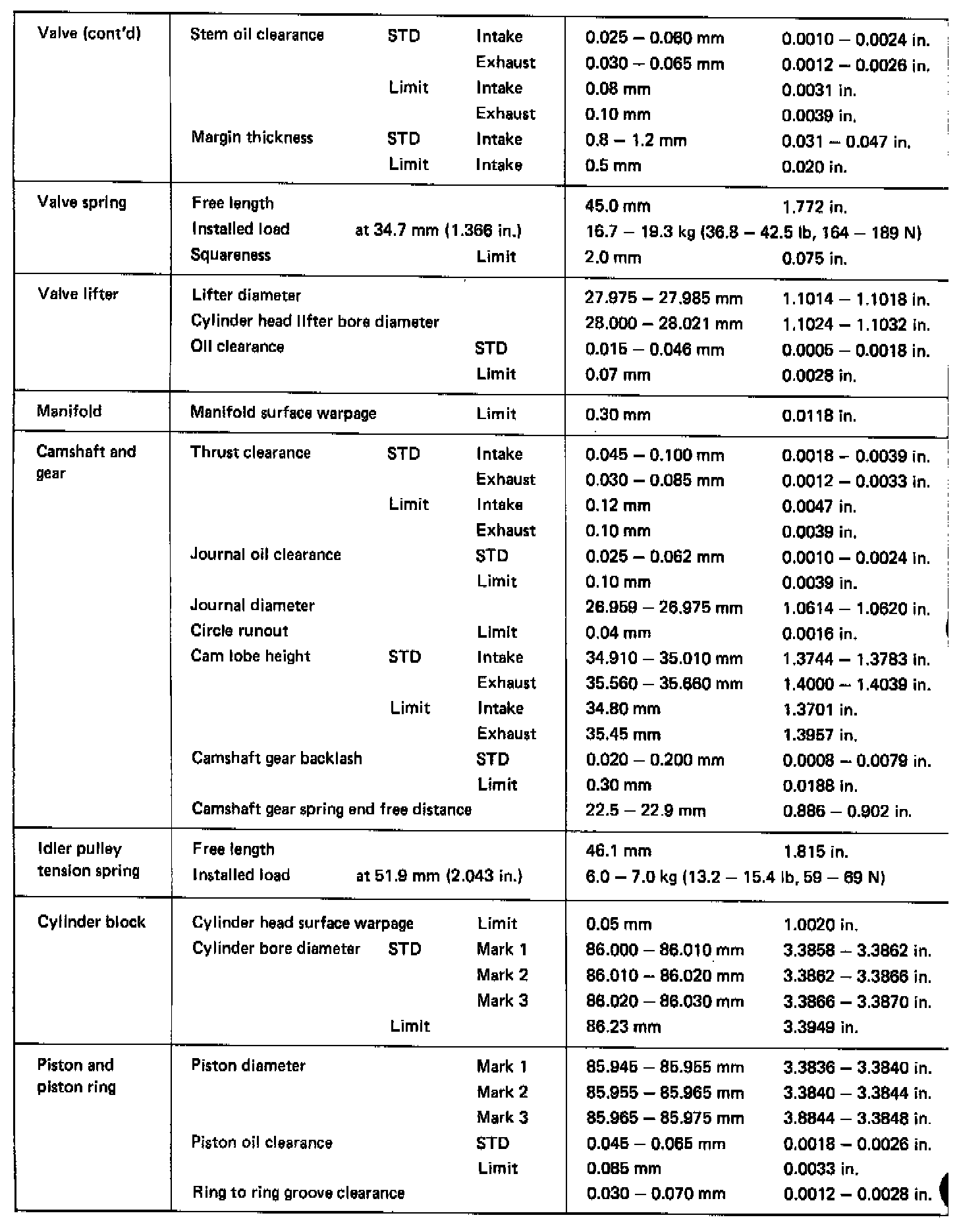

3S-FE Mechanical Specifications (2 Of 3):
3S-FE Mechanical Specifications (3 Of 3):
Mechanical Specifications
