Refrigerant Volume

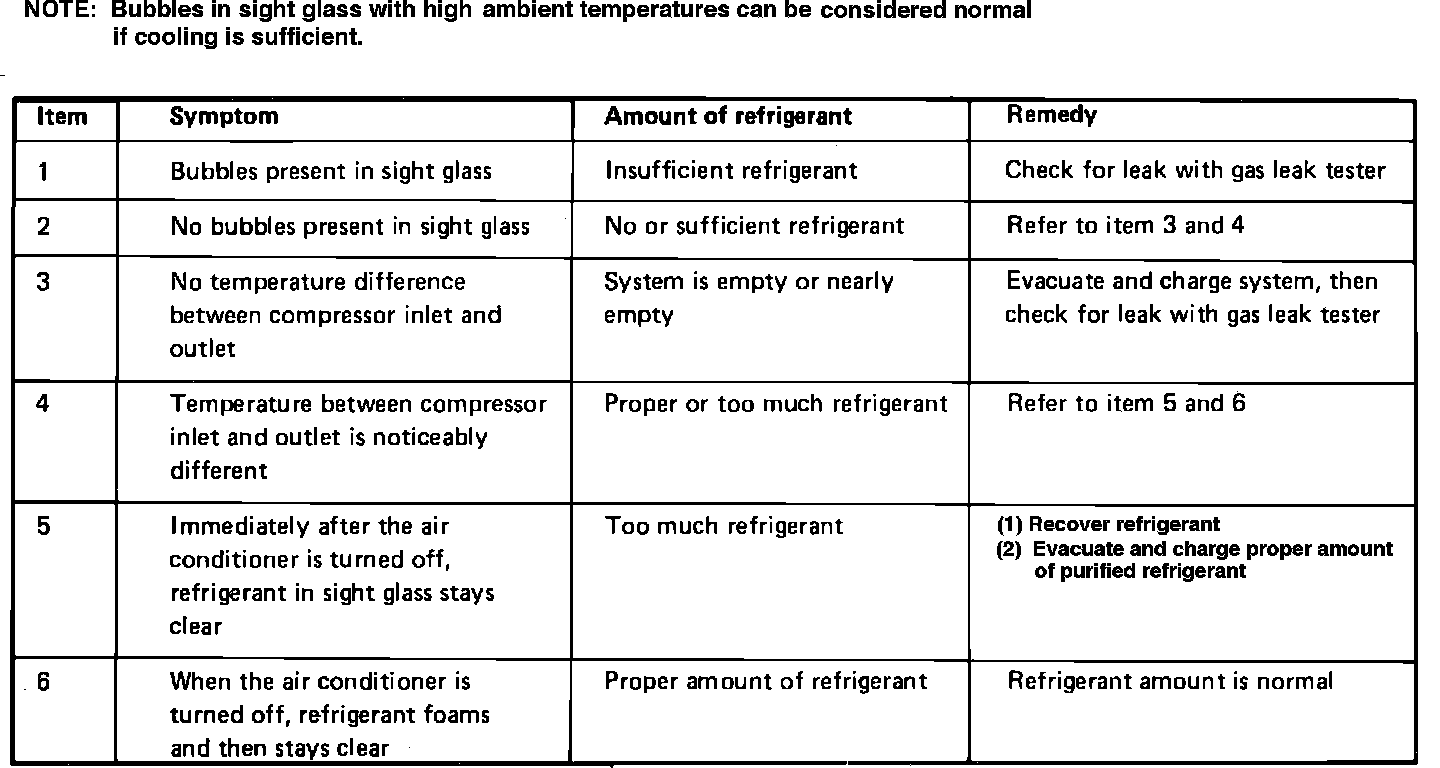

Fig. 1 Refrigerant charge indication chart:

To check the refrigerant charge, allow engine to run at fast idle and operate air conditioner at maximum cooling for several minutes. Check the amount of refrigerant by observing the sight glass on the receiver. Refer to chart, Fig. 1, for refrigerant charge indications.
