Pressure Too High at Low Side/Pressure Too Low at High Side
Pressure Too High at Low Side/Pressure Too Low at High Side

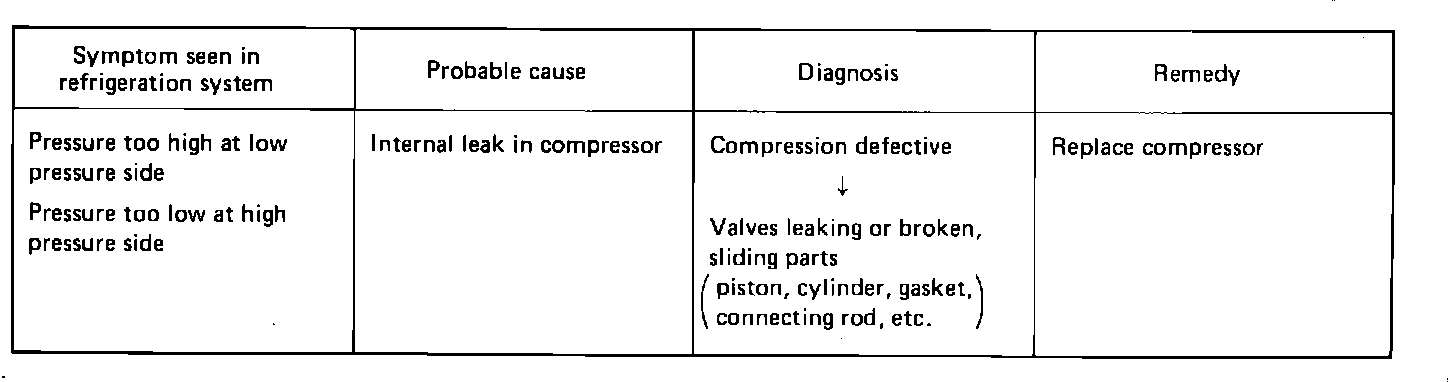

Fig. 2h Air conditioning system diagnostic chart:
