Maintenance Required Lamp/Indicator: Service and Repair

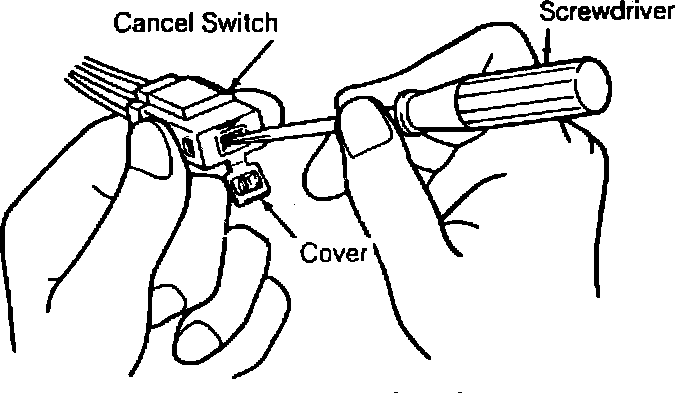

Light Reset:
This light illuminates at 30,000 mile intervals. Reset switch (white in color) is clipped to left kick panel. Free switch, open cover and move switch to opposite position.
