Home >> Toyota >> 1989 >> Celica L4-2.0L (3S-FE) >> Repair and Diagnosis >> Power and Ground Distribution >> Power Distribution Relay >> Locations

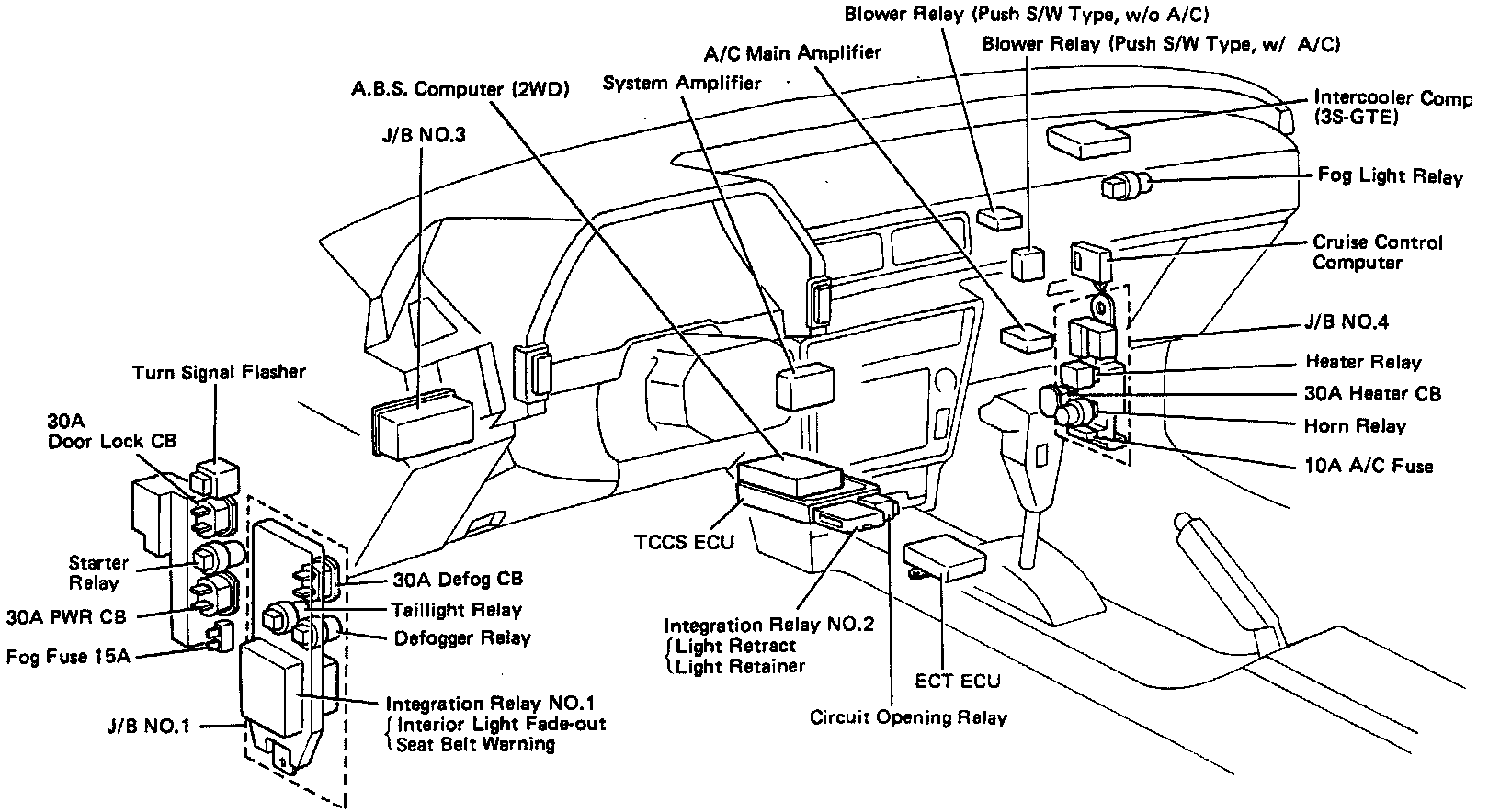

Power Distribution Relay: Locations

Electrical Components - Interior:
