Coolant Temperature Sensor/Switch (For Computer)
>>
Testing and Inspection
>>
Component Troubleshooting
Component Troubleshooting

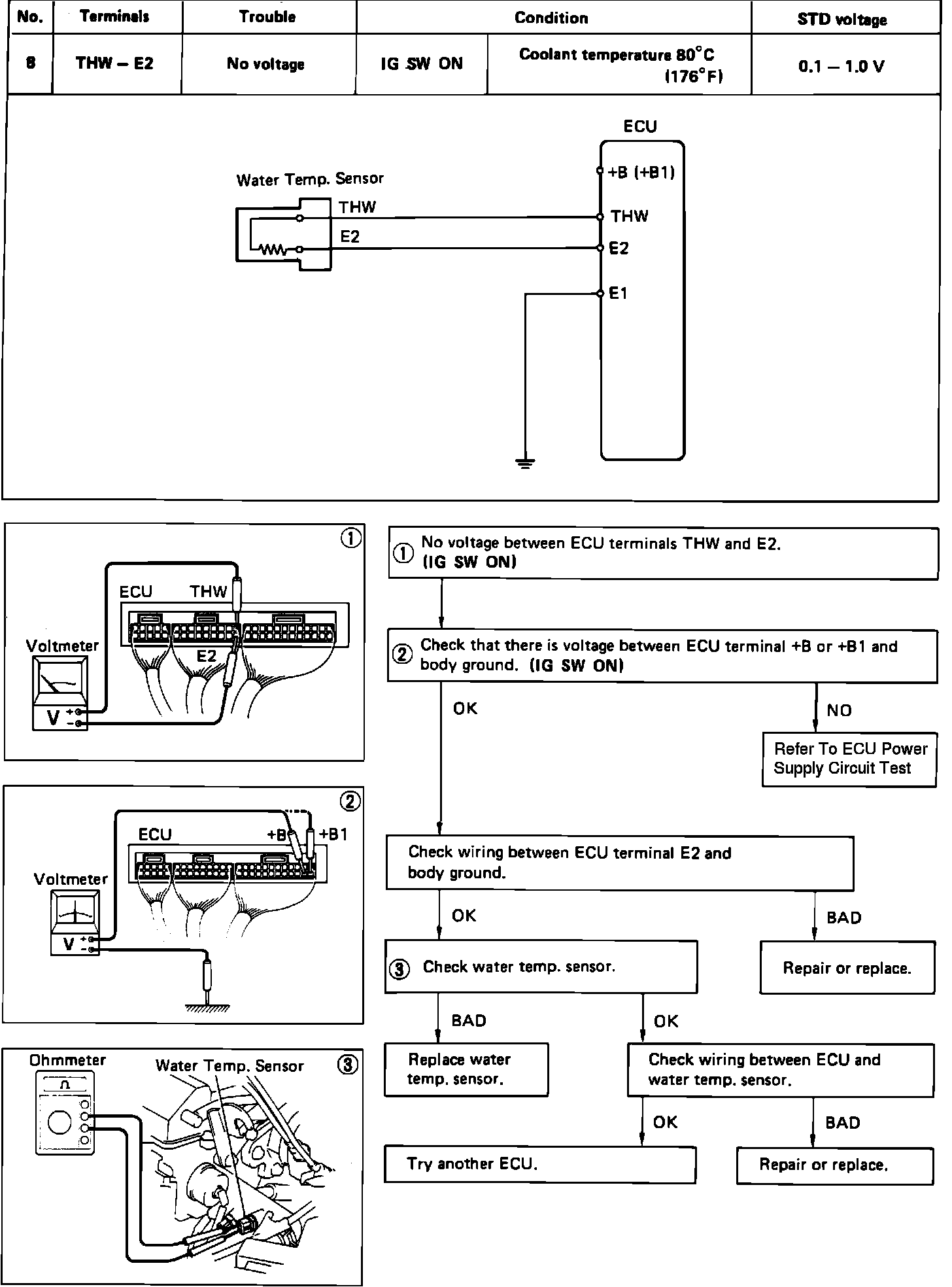

Water Temperature Sensor Circuit Test:
