Home
>>
Toyota
>>
1989
>>
Celica L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Testing and Inspection
>>
Component Troubleshooting
Component Troubleshooting

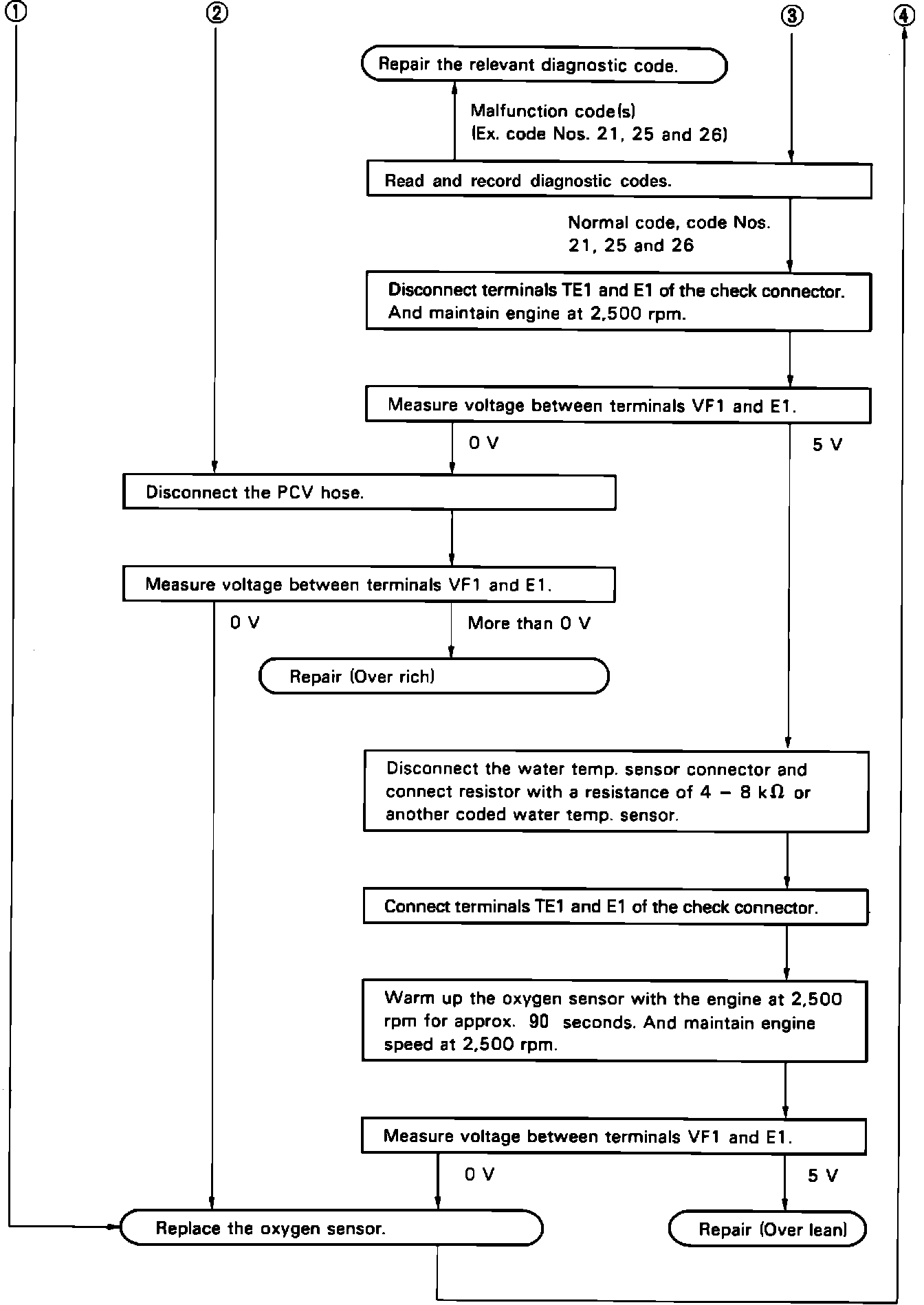

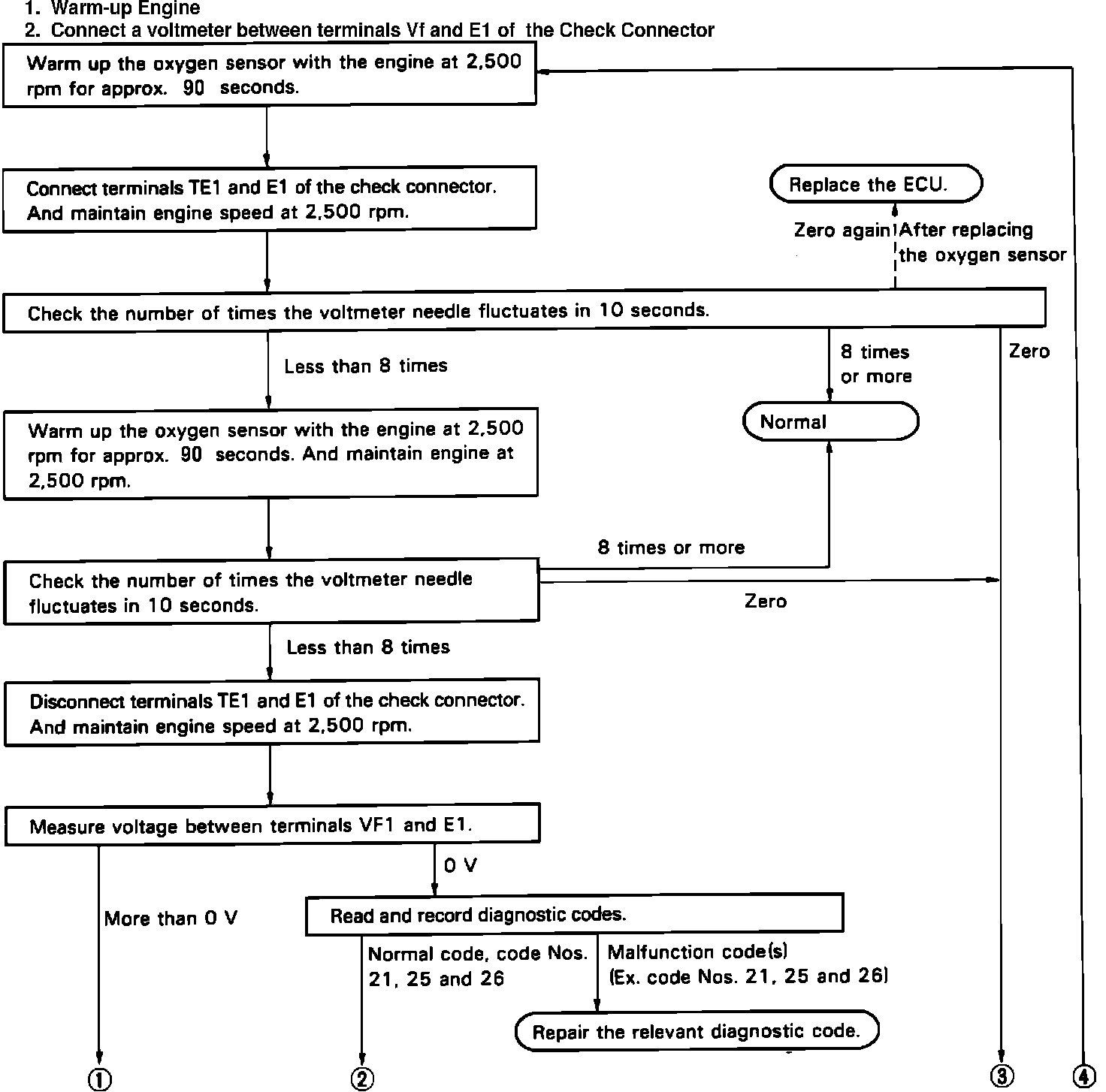

Oxygen Sensor Circuit Test:
Oxygen Sensor Circuit Test:
