D/F Technical Data

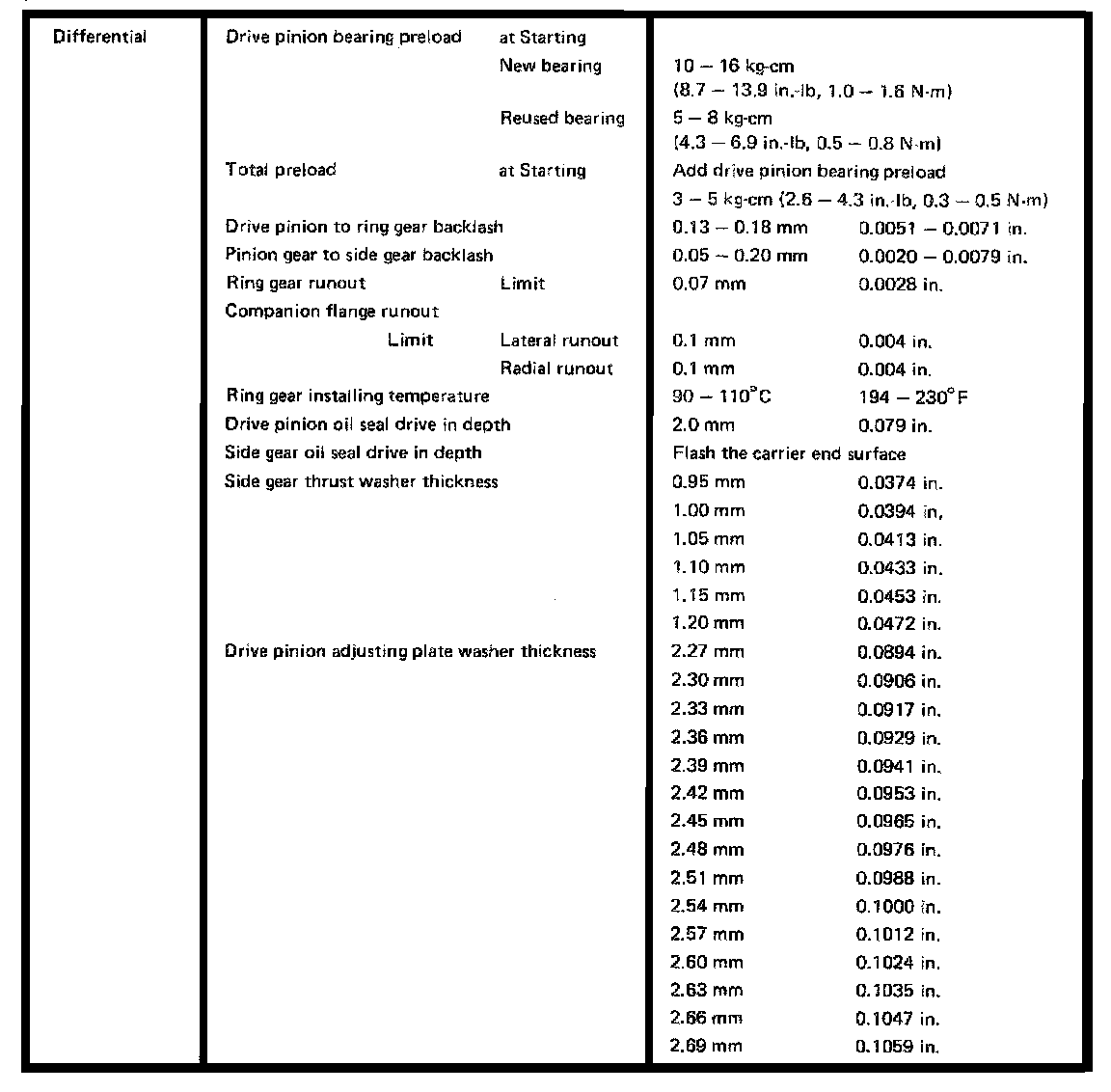

Rear Differential, Preload/Side Gear Thickness:




Rear Differential, Side Bearing Thickness Cont.:
