Toyota
>>
1989
>>
Tercel Hatchback L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Testing and Inspection
>>
System Circuit Test

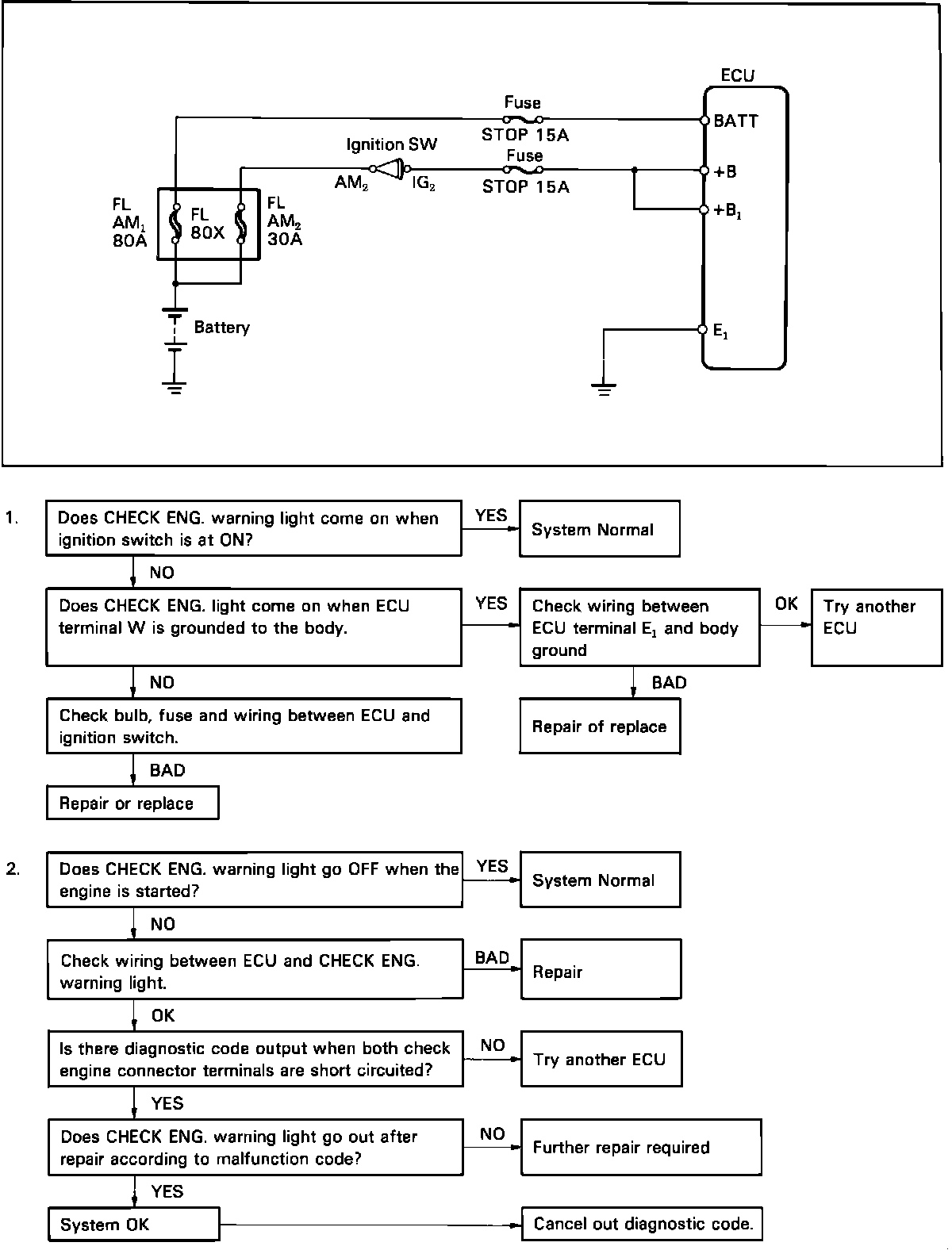

System Circuit Test
On-Board Diagnostic Circuit Test:
