Home >> Toyota >> 1990 >> Camry Sedan 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> D/F Torque Data

D/F Torque Data

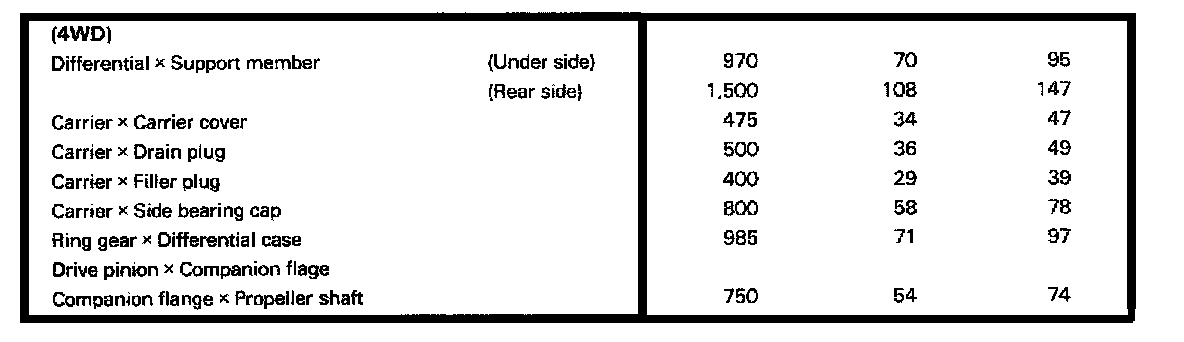

Rear Differential (4WD), Carrier Torque:
