Home >> Toyota >> 1990 >> Pickup 2WD V6-180.5 2959cc 3.0L SOHC (3VZ-E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Air Conditioner & Heater Wiring Circuit

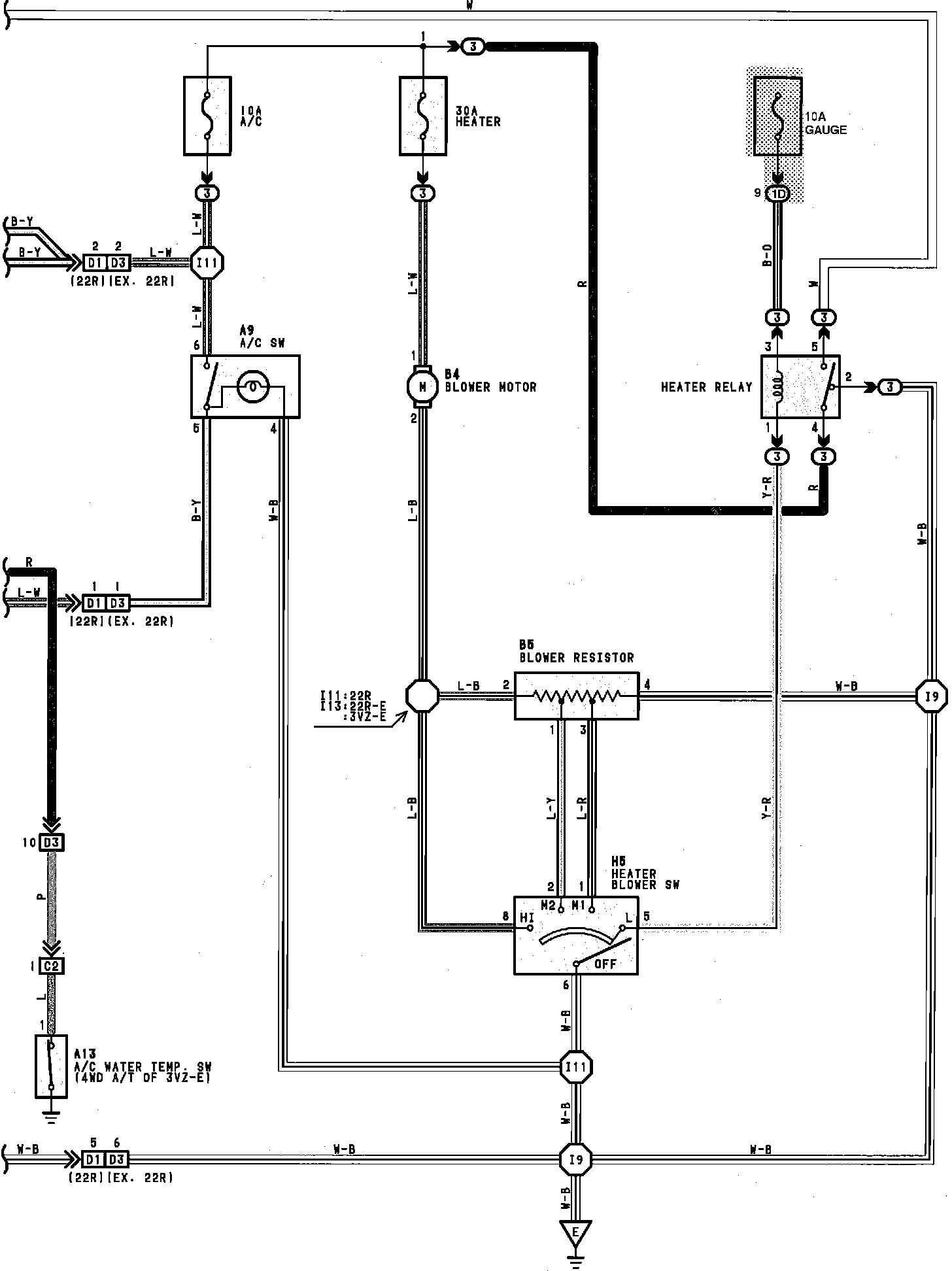

Air Conditioner & Heater Wiring Circuit

Air Conditioning:



Air Conditioning:
