Tercel Hatchback L4-1456cc 1.5L SOHC (3E-E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Cylinder Head Assembly

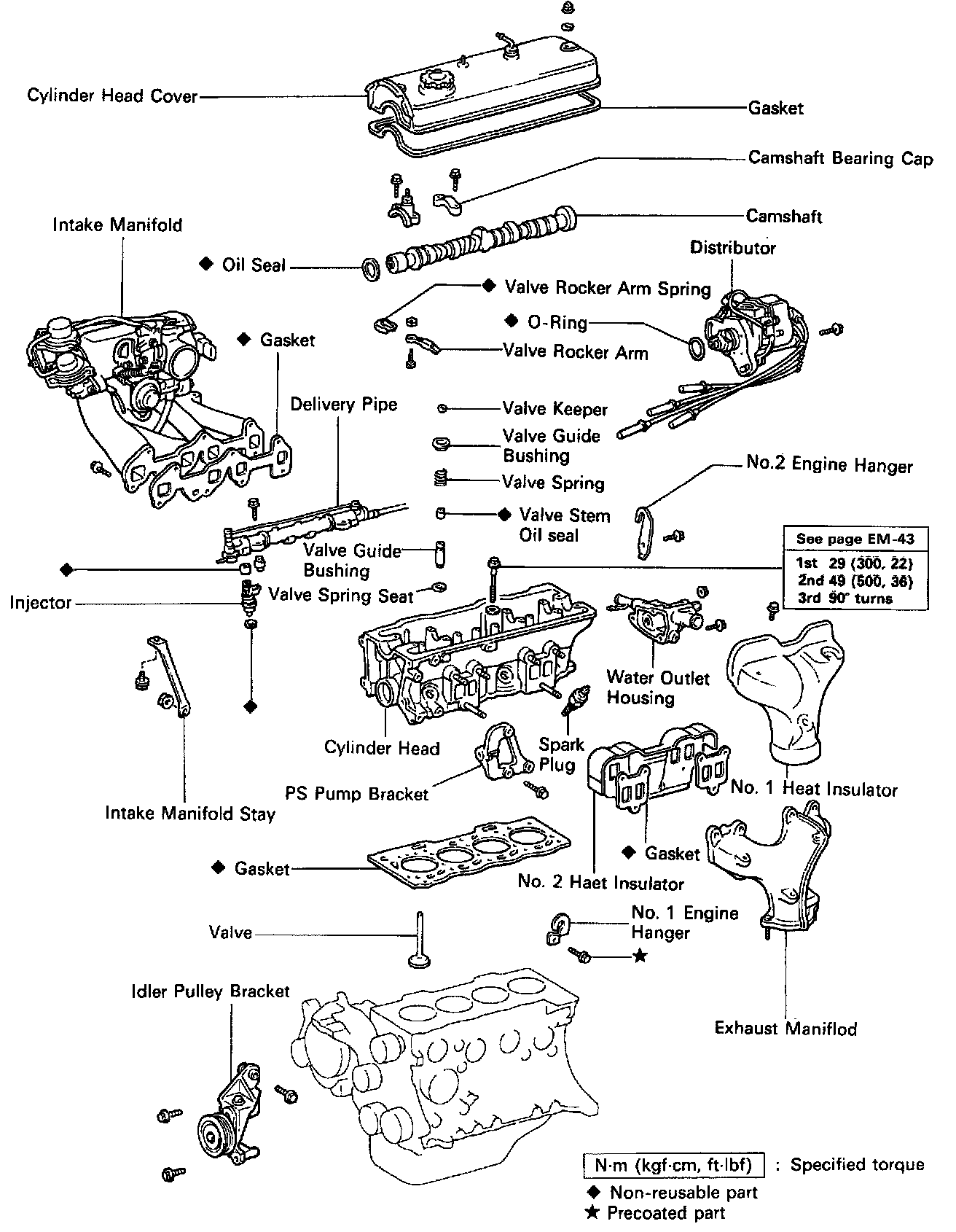

Cylinder Head Assembly
3E-E (MFI):
