Camry Sedan 2WD V6-2507cc 2.5L DOHC (2VZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Warning Indicators
>>
Seat Belt
Seat Belt

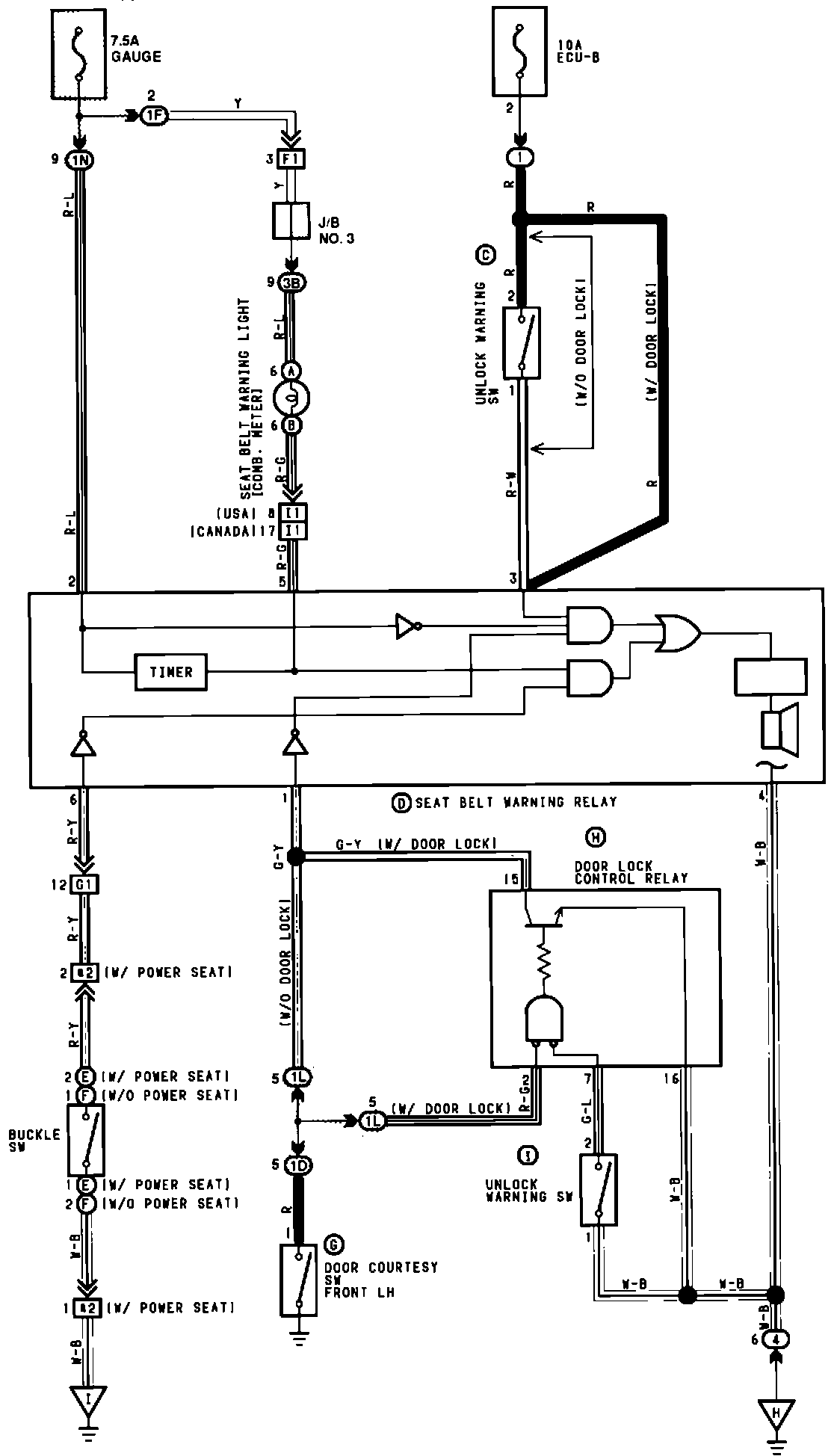

Unlock And Seat Belt Warning:
