Neutral Start Switch Inspection

INSPECT NEUTRAL START SWITCH

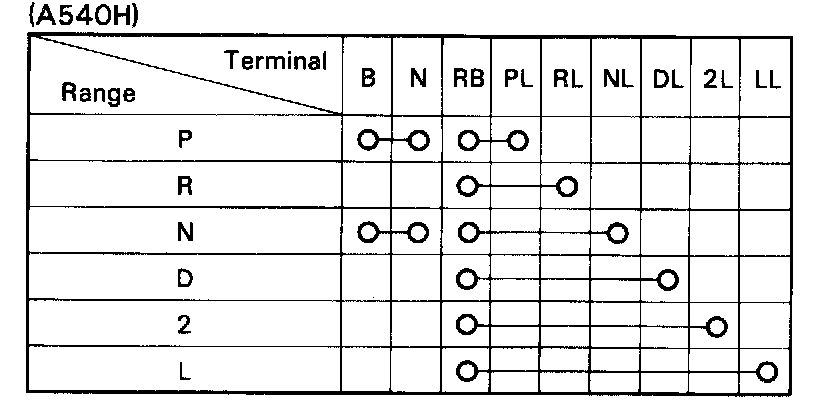

Using an ohmmeter, check the continuity of the terminals for each switch position shown in the table.
