Displaying & Reading Trouble Codes

READ DIAGNOSTIC CODE

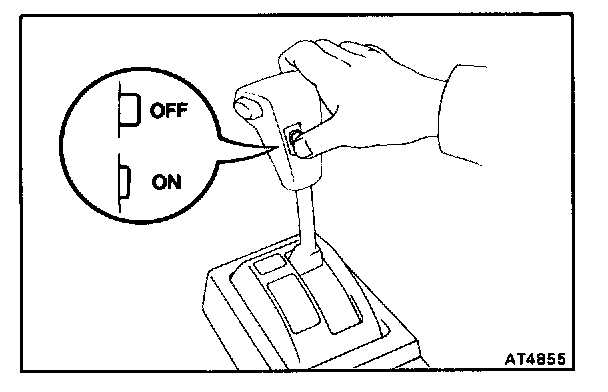

1. TURN IGNITION SWITCH AND O/D SWITCH TO ON
Do not start the engine.

HINT: Warning and diagnostic codes can be read only when the overdrive switch is ON. If OFF, the overdrive OFF light will light continuously and will not blink.

2. SHORT T(T) TERMINAL CIRCUIT OF CHECK CONNECTOR






Using SST, short terminals T(T) and E(1) of the check connector.
SST 09843-18020

3. READ DIAGNOSTIC CODE




Read the diagnostic code as indicated by the number of times the O/D OFF light flashes.

(Diagnostic Code Indication)

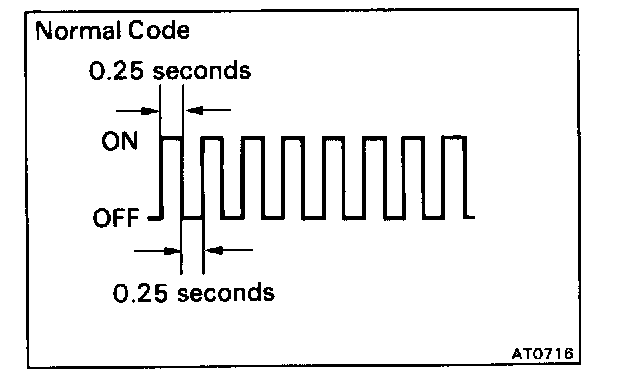

- If the system is operating normally, the light will blink once every 0.25 seconds.




- In the event of a malfunction, the light will blink once every 0.5 seconds. The number of blinks will equal the first number and, after 1.5 seconds pause, the second number of the two digit diagnostic code. If there are two or more codes, there will be a 2.5 seconds pause between each.

HINT: In the event of several trouble codes occurring simultaneously, indication will begin from the smaller value and continue to the larger.

4. REMOVE SST
SST 09843-18020
