Home >> Toyota >> 1991 >> Celica L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Warning Indicators >> High Beam Indicator >> USA

USA

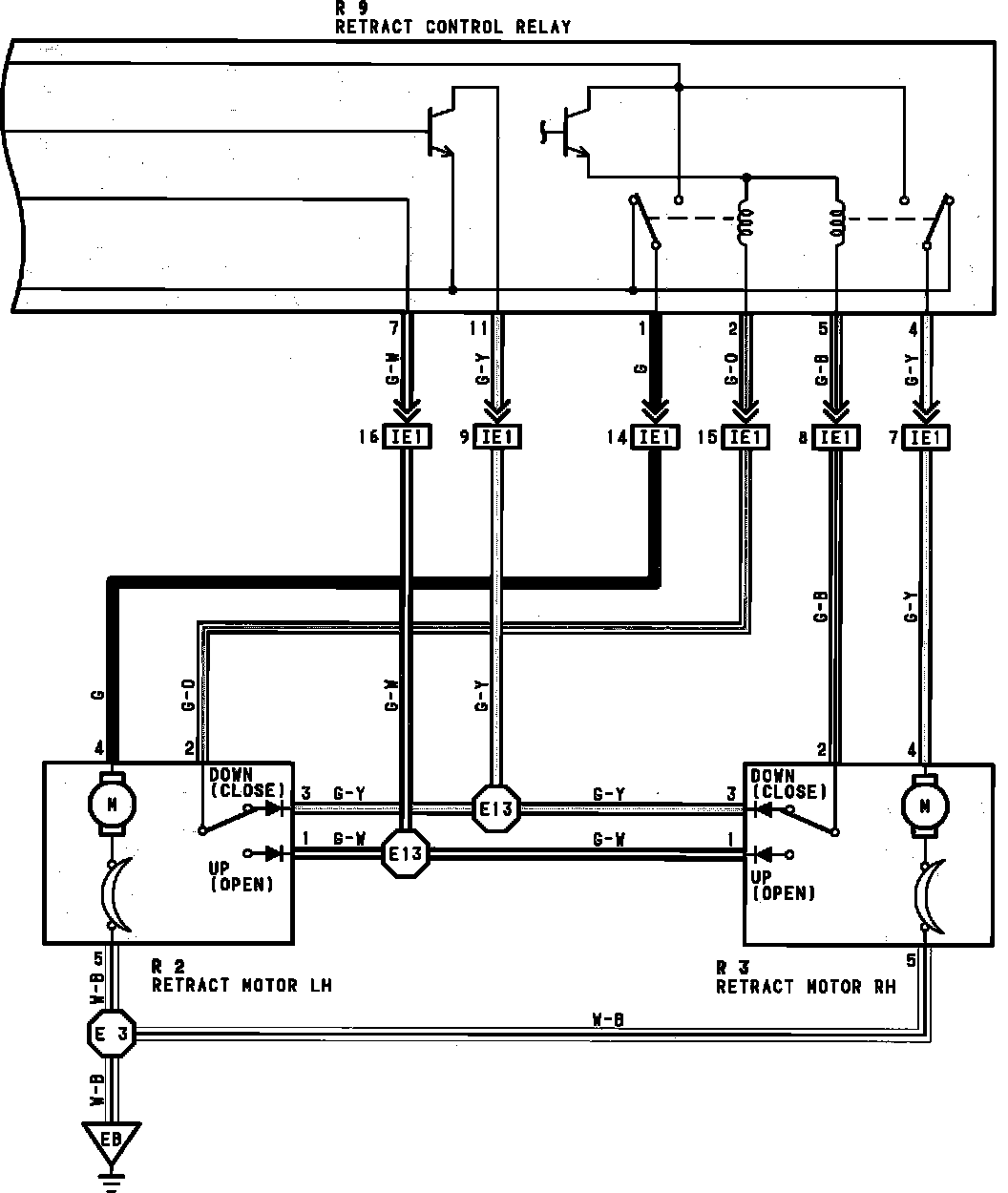

Headlights - Part 1 Of 2:

Headlights - Part 2 Of 2:
