ABS

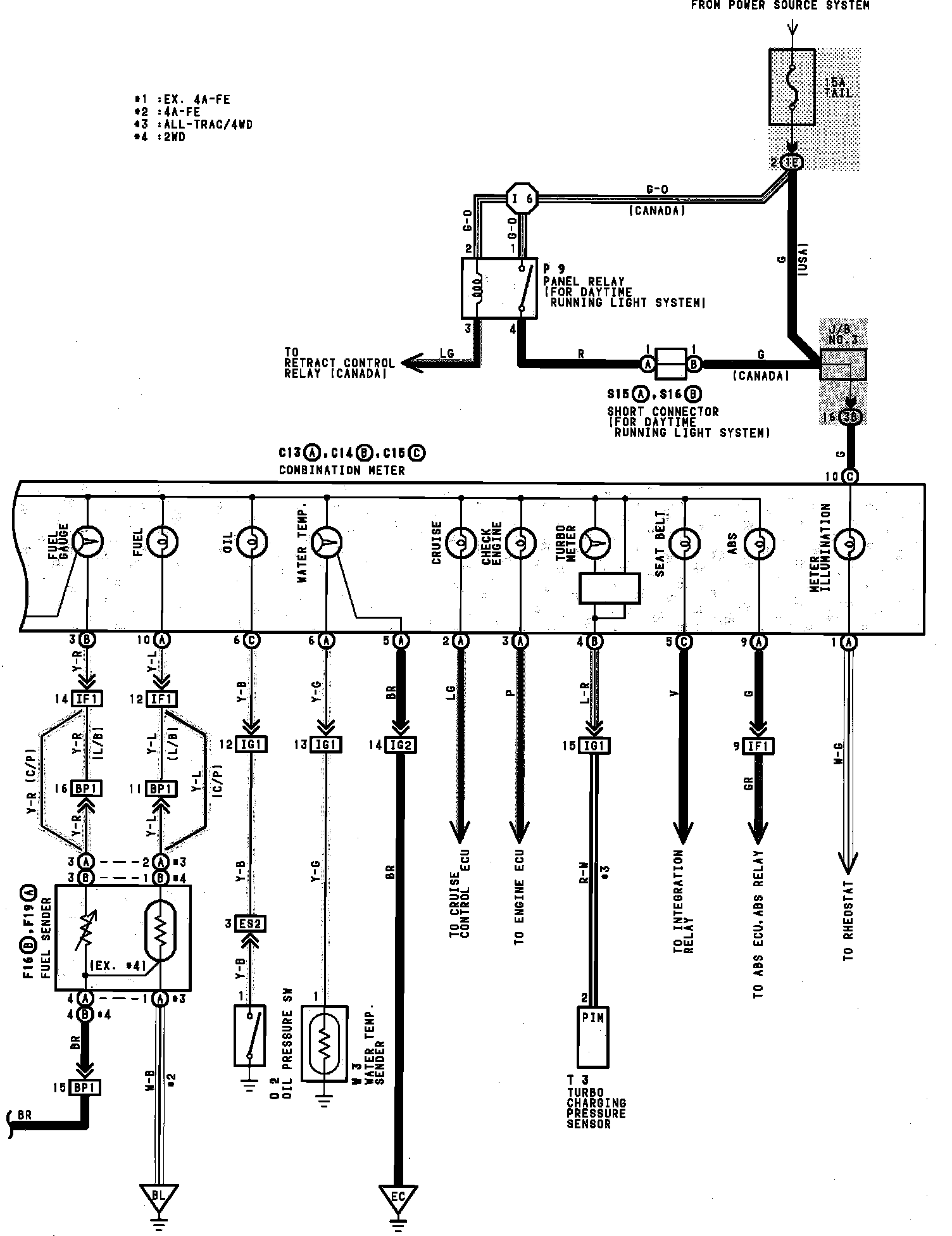

Gauges, Instrument Panel Circuit Board Wiring, ABS, Airbag, Brake, Charge, Check Engine, Cruise Control, Door, Fuel, Oil & Turn Signal Warning:



Gauges, Instrument Panel Circuit Board Wiring, ABS, Airbag, Brake, Charge, Check Engine, Cruise Control, Door, Fuel, Oil & Turn Signal Warning:
