Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Tail Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

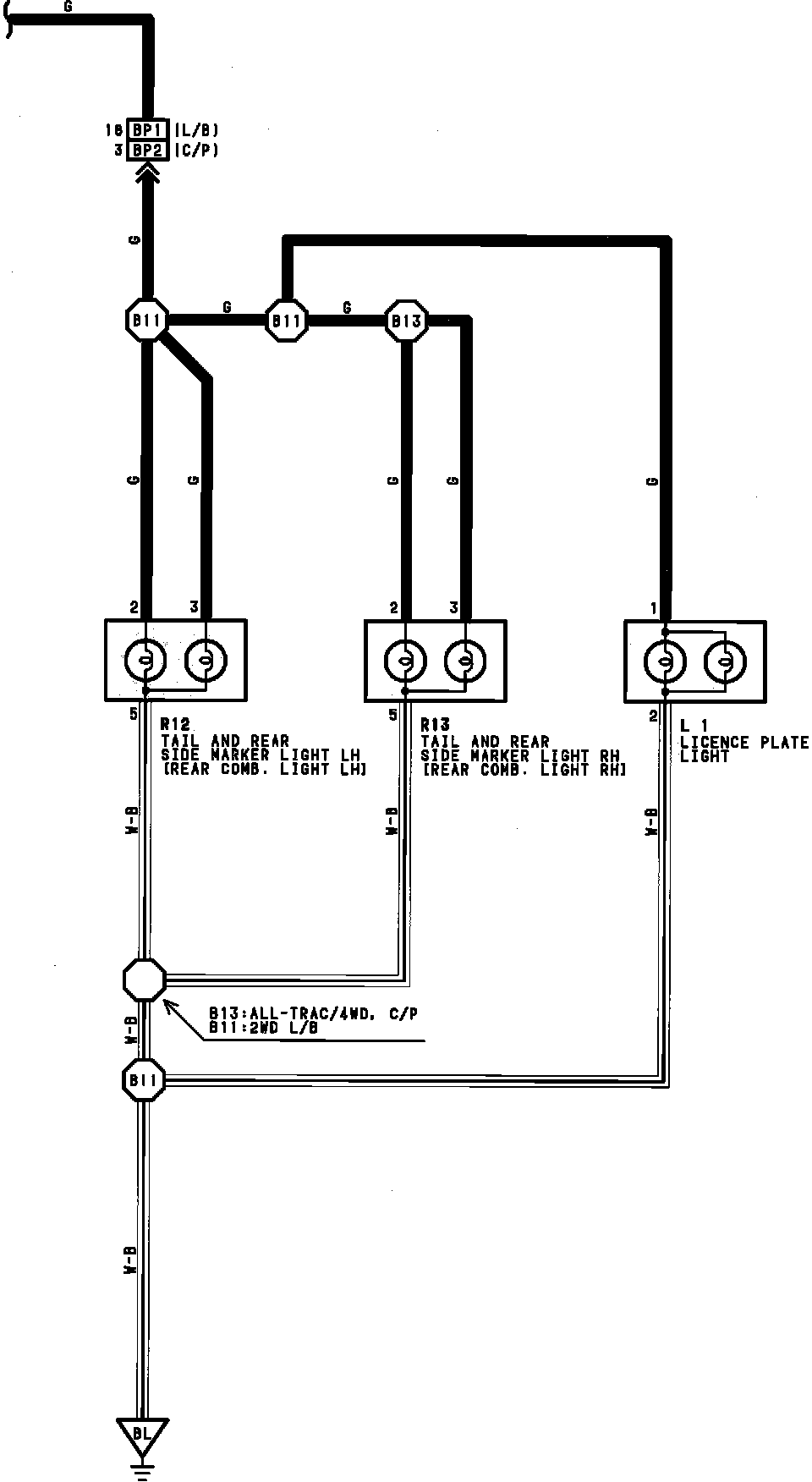

Tail Lights - Part 1 Of 2:
Tail Lights - Part 2 Of 2:
