MR2 L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Connector Identification
Connector Identification

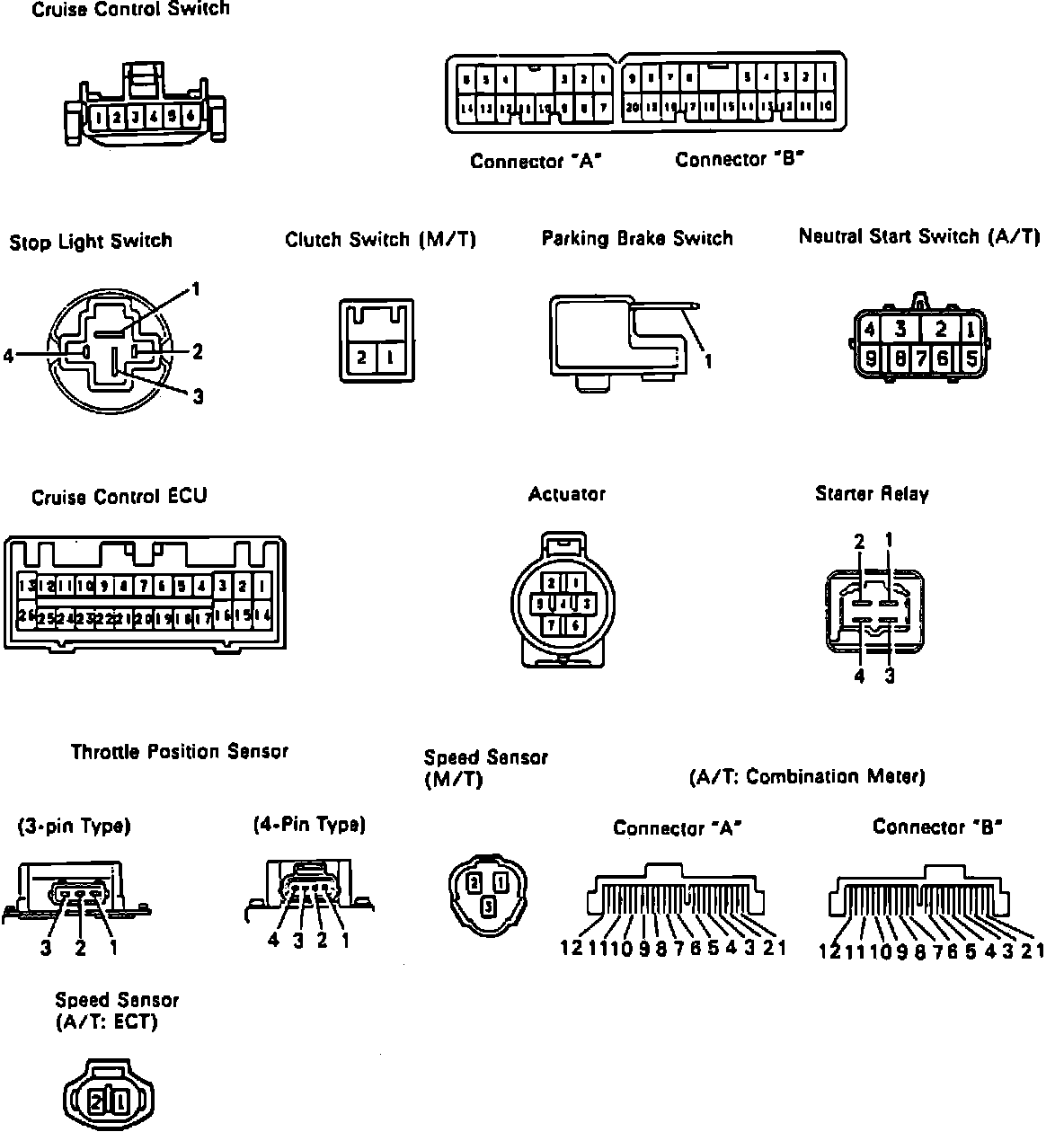

Fig. 43 Connector Identification:
