Home >> Toyota >> 1992 >> MR2 L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Locations

Oxygen Sensor: Locations

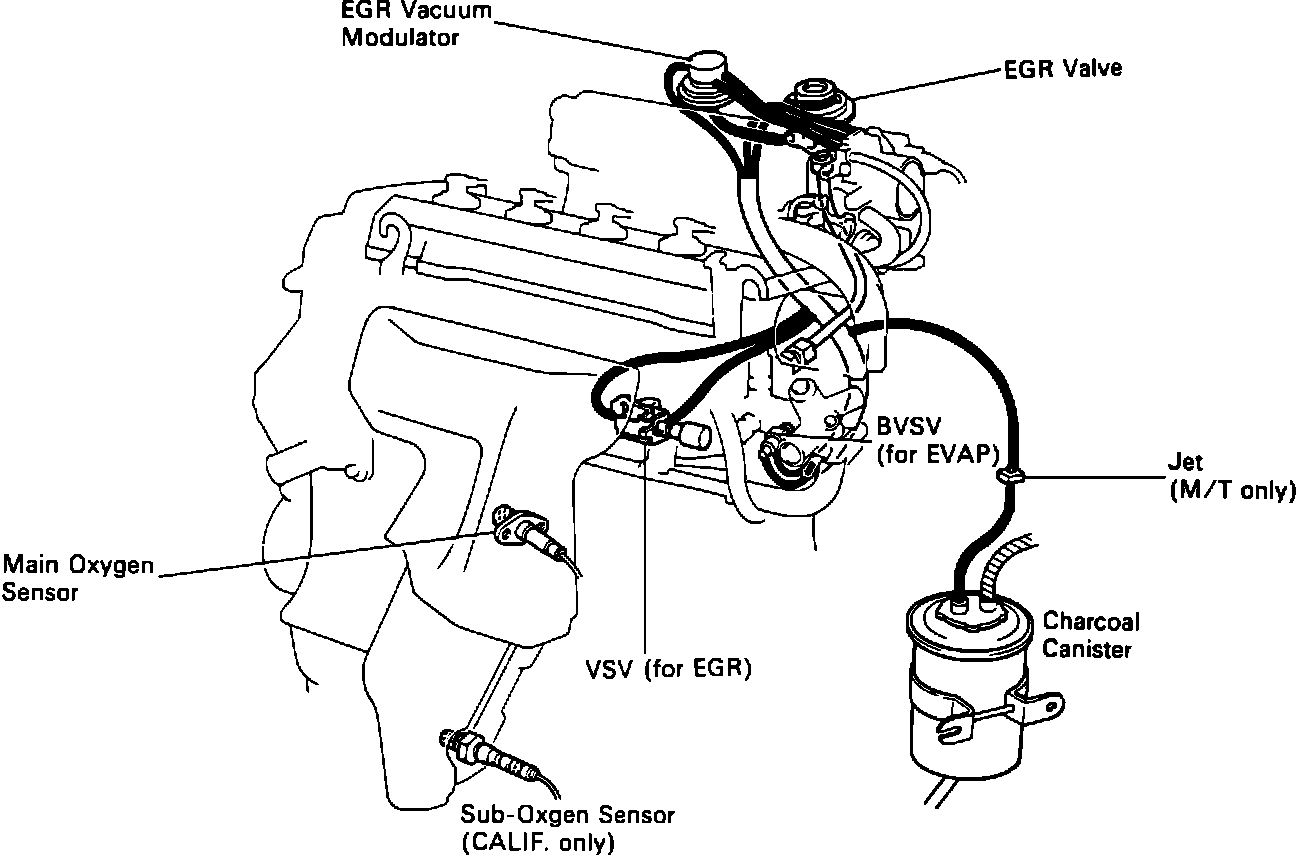

Oxygen/Sub-Oxygen Sensor Placement:
