Home >> Toyota >> 1992 >> Supra L6-3.0L DOHC (7M-GE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Connector Identification

Connector Identification

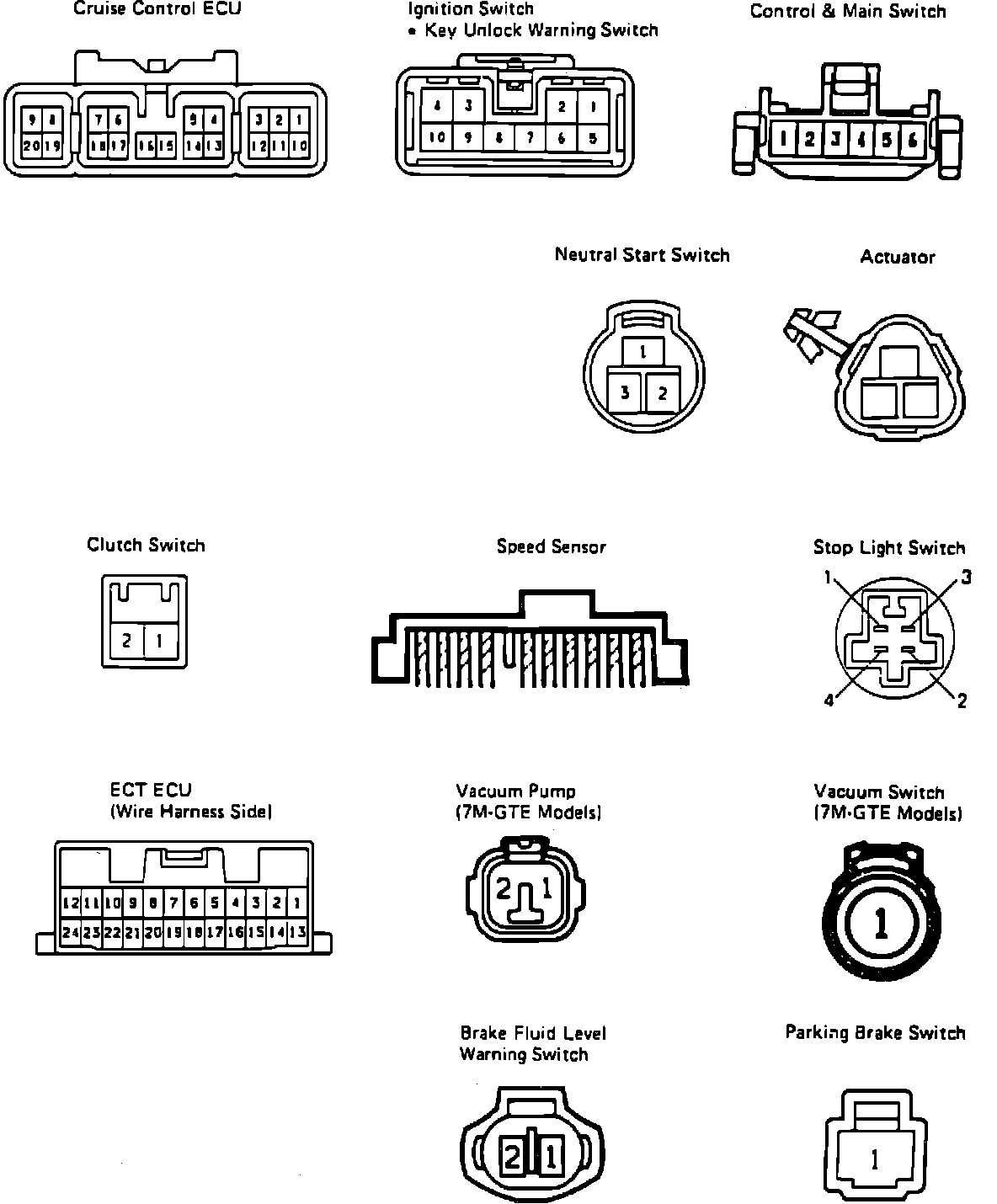

Fig. 51 Connector Identification:
