Cruise Control
>>
Testing and Inspection
>>
System Circuit Test
System Circuit Test

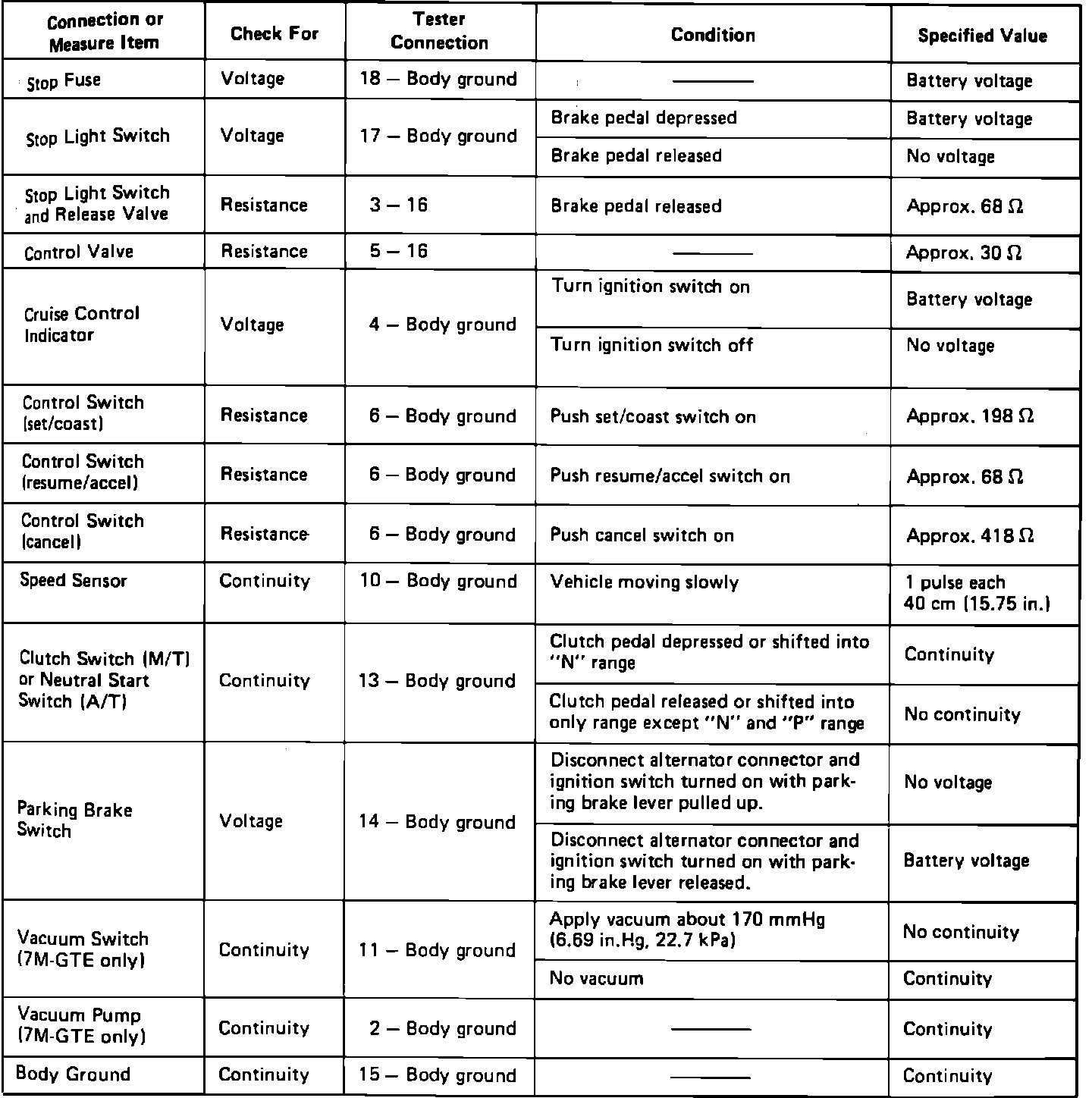

Fig. 69 System Circuit Test:
