Ride Height

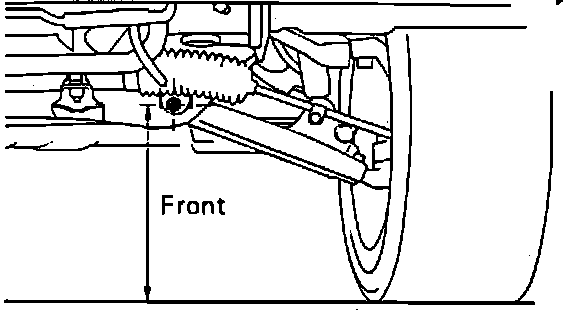

Fig. 7 Front Ride Height Measurement. Supra:



Fig. 8 Rear Ride Height Measurement. Supra:

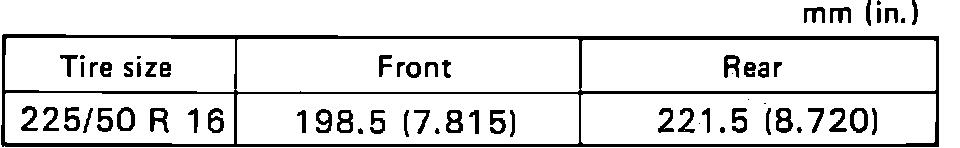

Fig. 10 Ride Height Specifications. 1991-92 Supra:
