Home >> Toyota >> 1992 >> Supra L6-3.0L DOHC (7M-GE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Relays and Modules - Transmission and Drivetrain >> Relays and Modules - A/T >> Control Module >> Testing and Inspection

Control Module: Testing and Inspection

ECT ECU Voltage Measurement:





- Turn on the ignition switch.
- Do not disconnect ECT ECU connector.

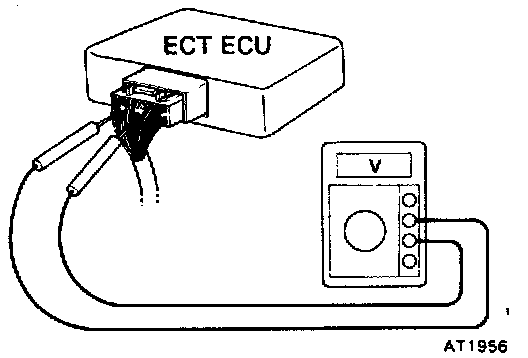

- Measure the voltage at each terminal.

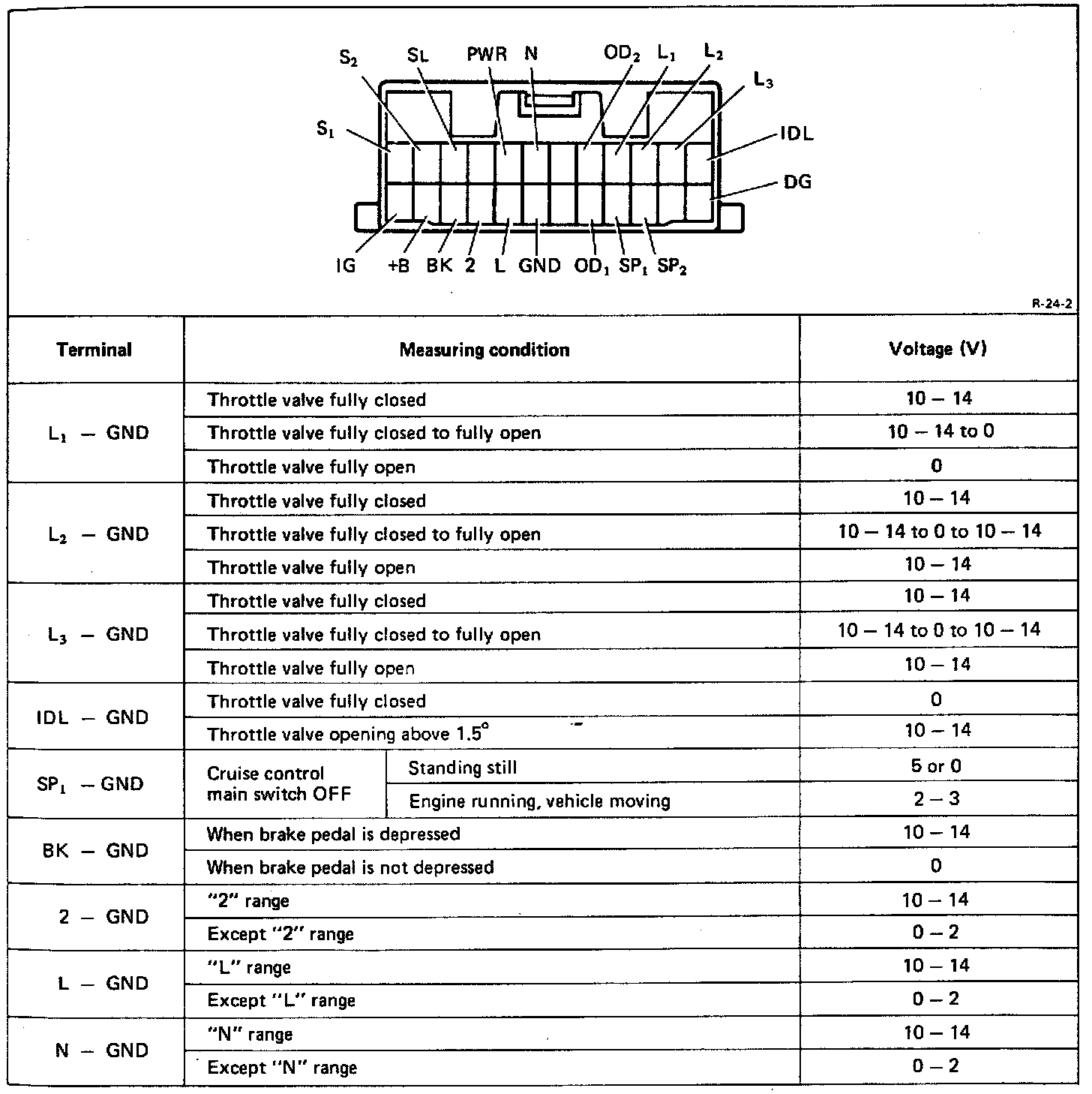

ECT ECU Pin Voltage, Page 1:




Terminal Voltage - Page 1

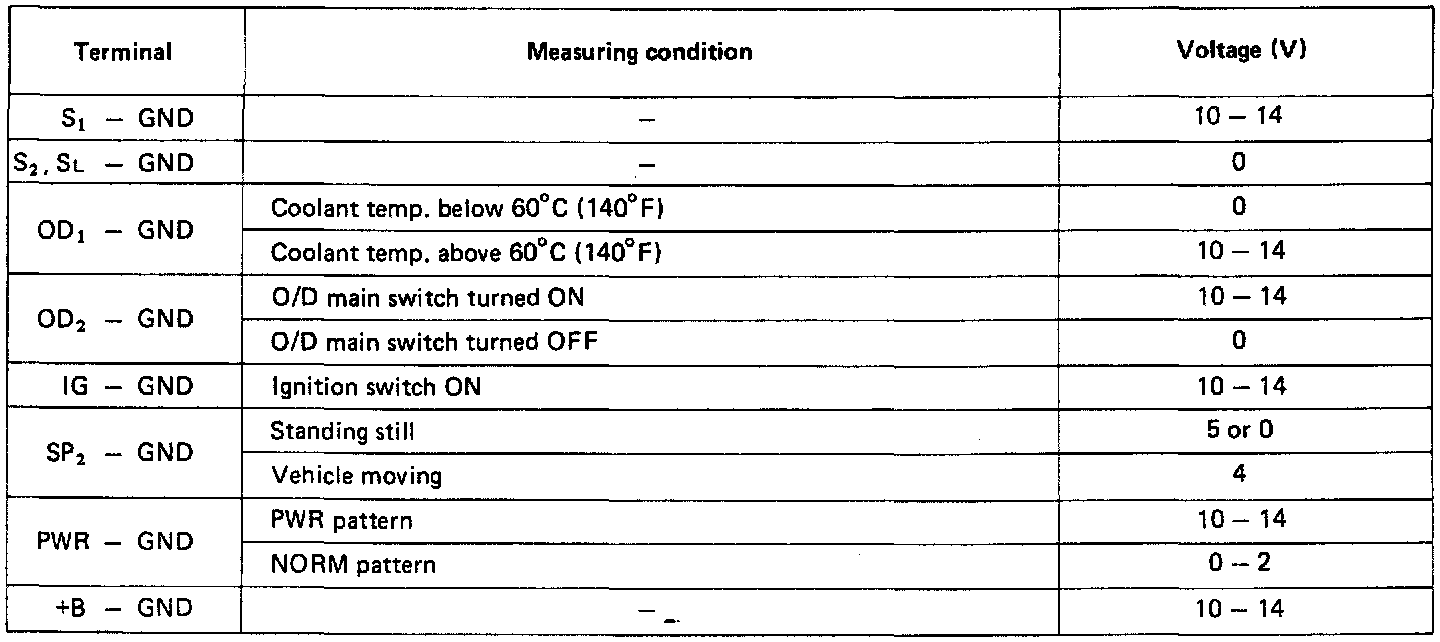

ECT ECU Pin Voltage, Page 2:




Terminal Voltage - Page 2
