Service Specifications

SERVICE DATA

A340E; A340F; A340H

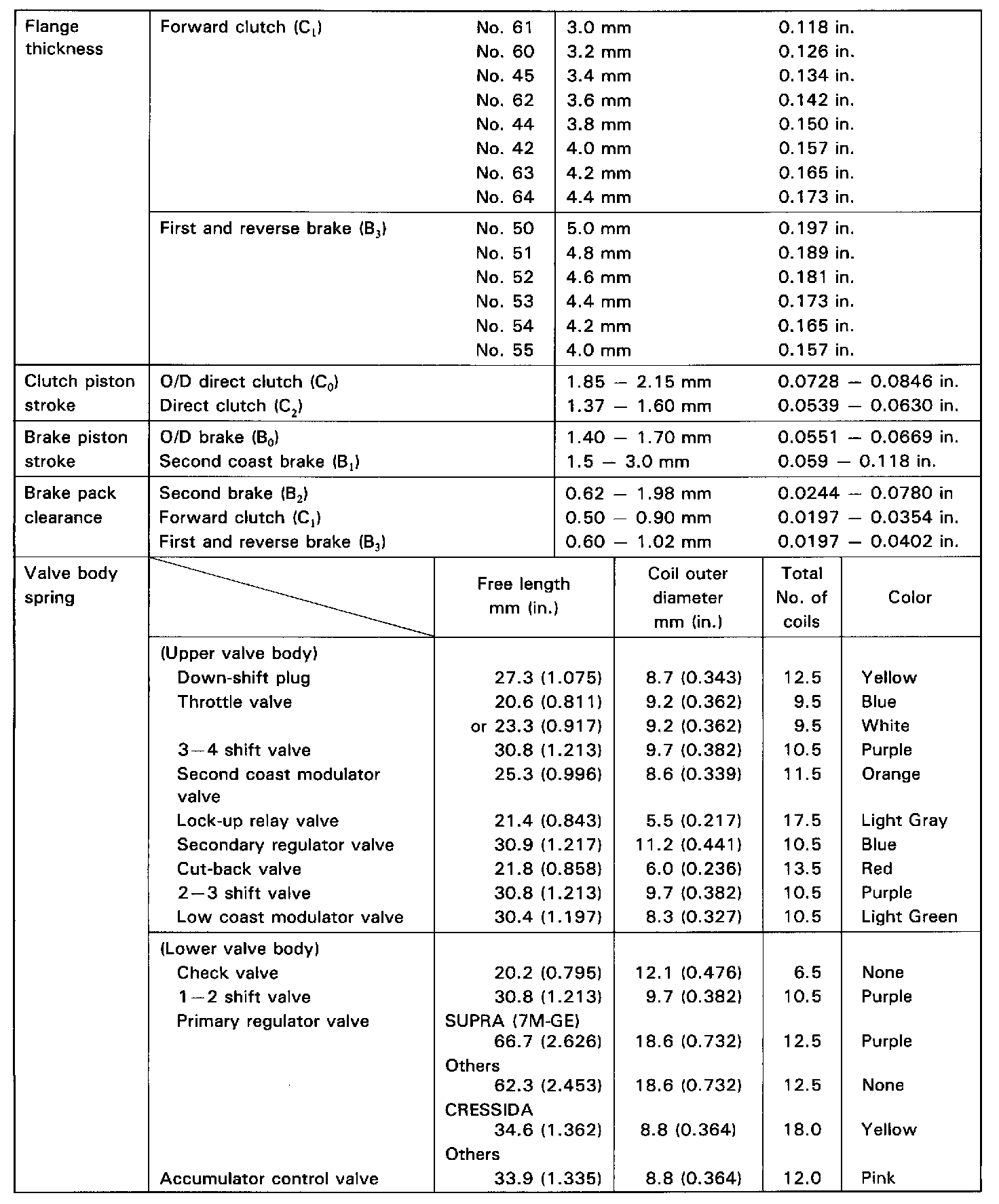

Part 1:

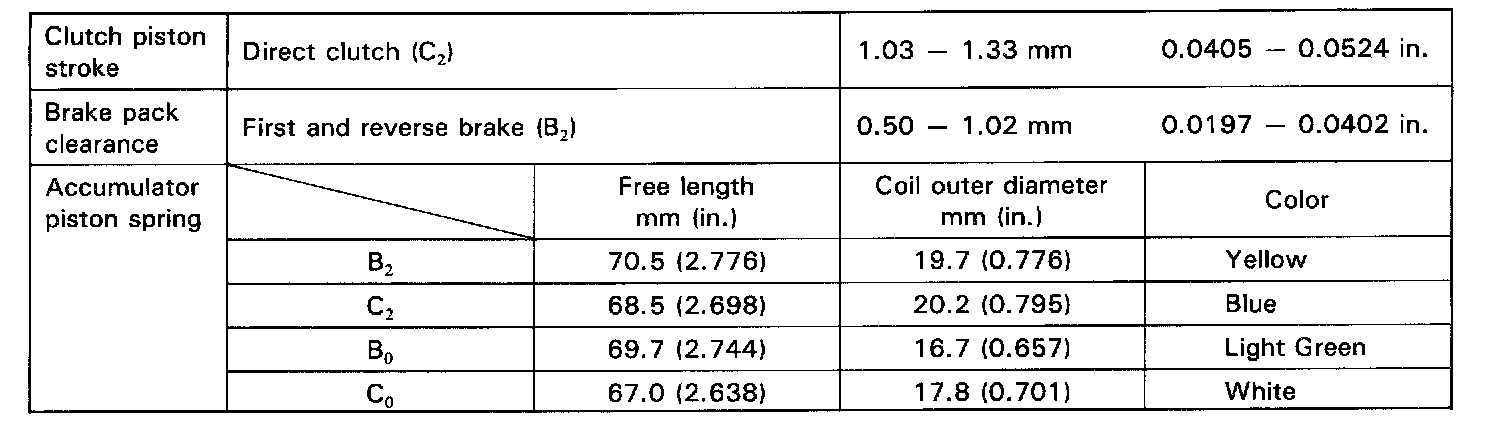

Part 2:

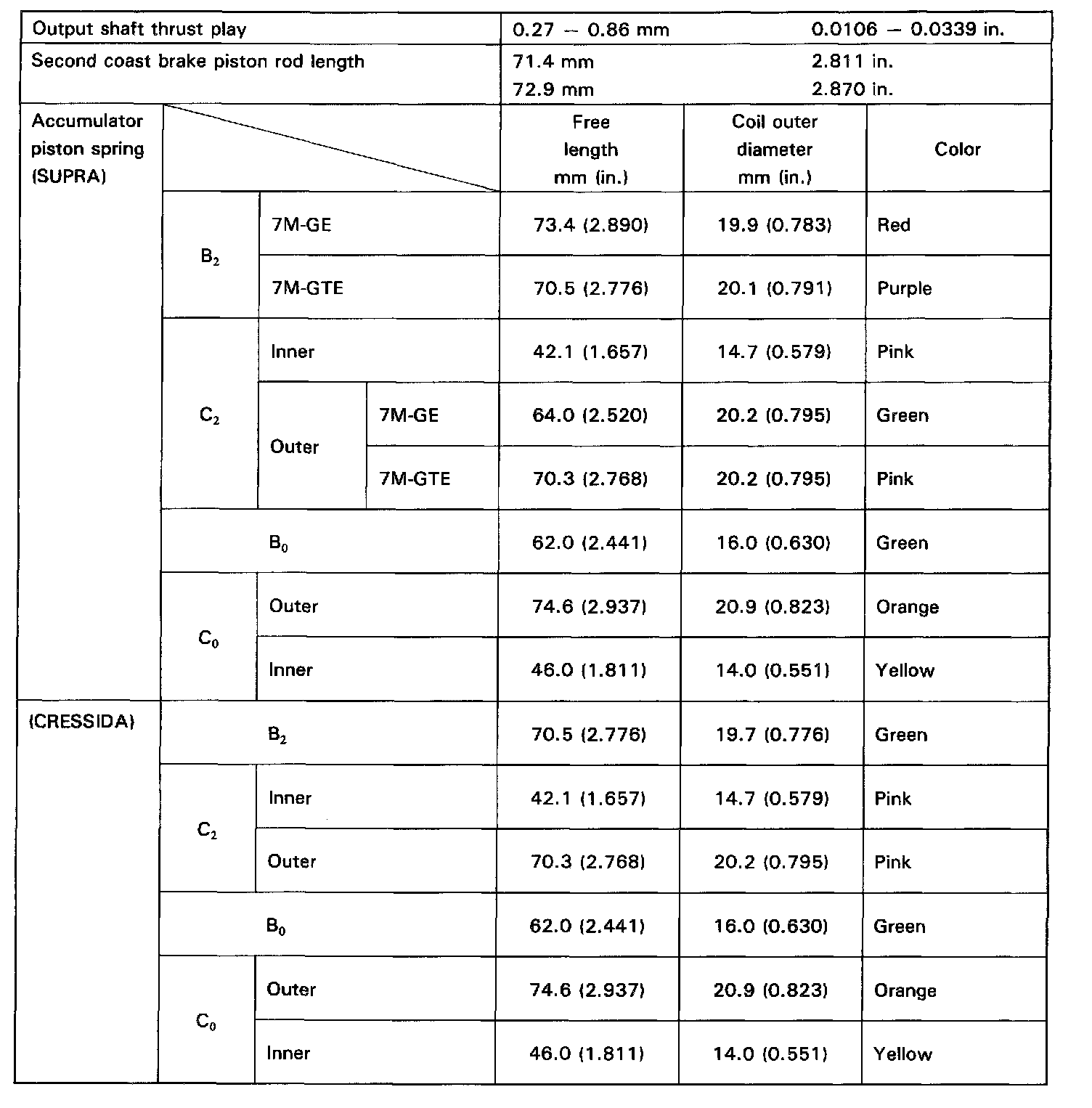

Part 3:

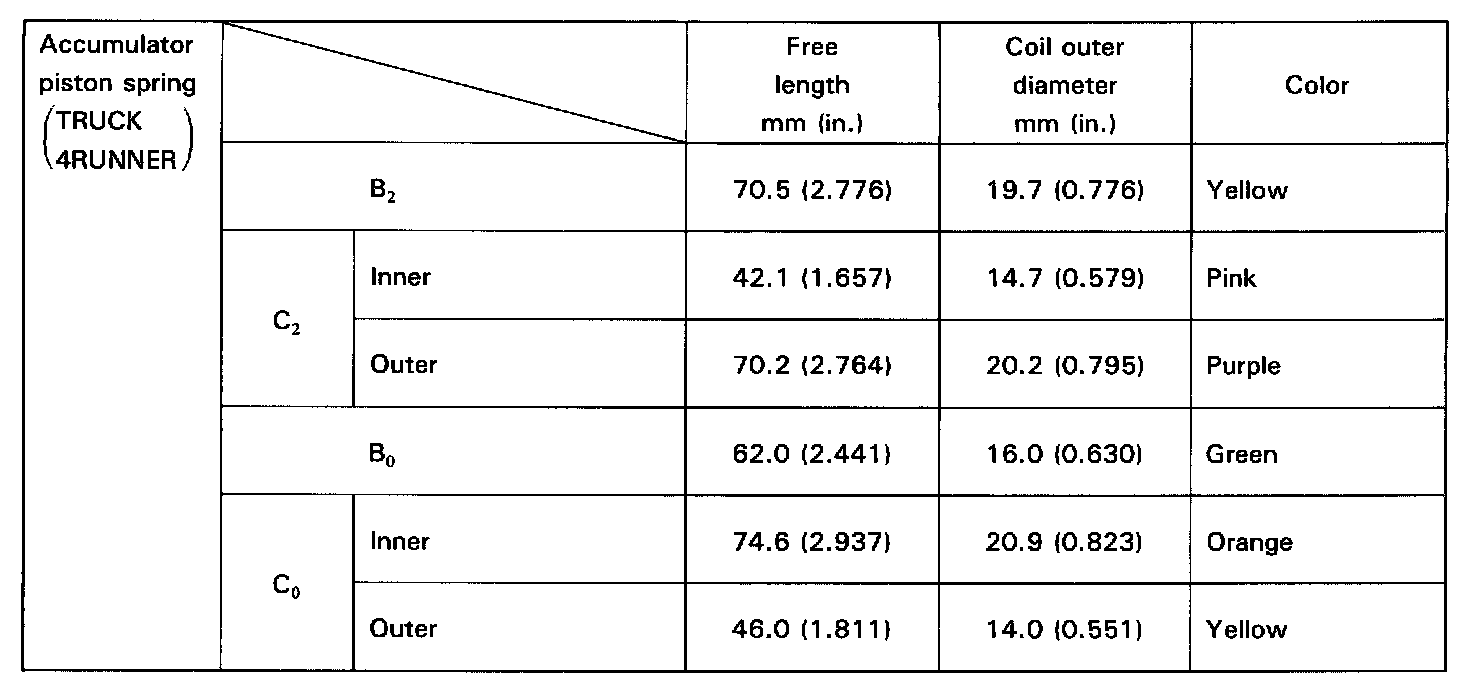

Part 4:

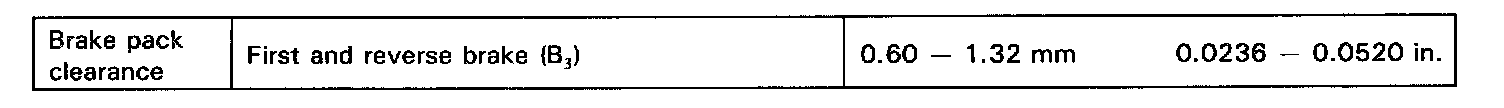

A340F ONLY





A340H ONLY

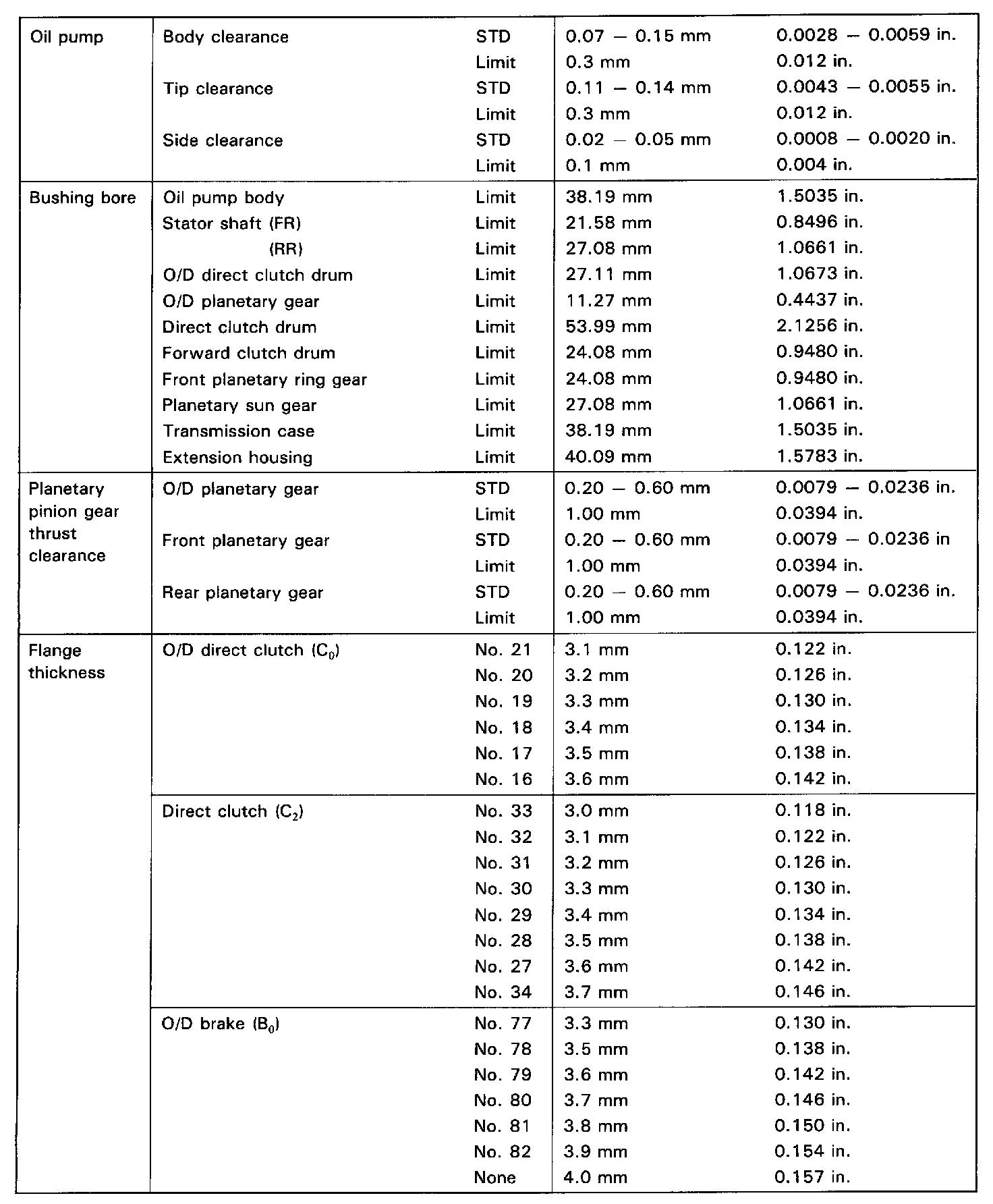

Part 5:
