Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1993
>>
Landcruiser 4WD L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Circuit Testing
>>
System Circuit Test
System Circuit Test

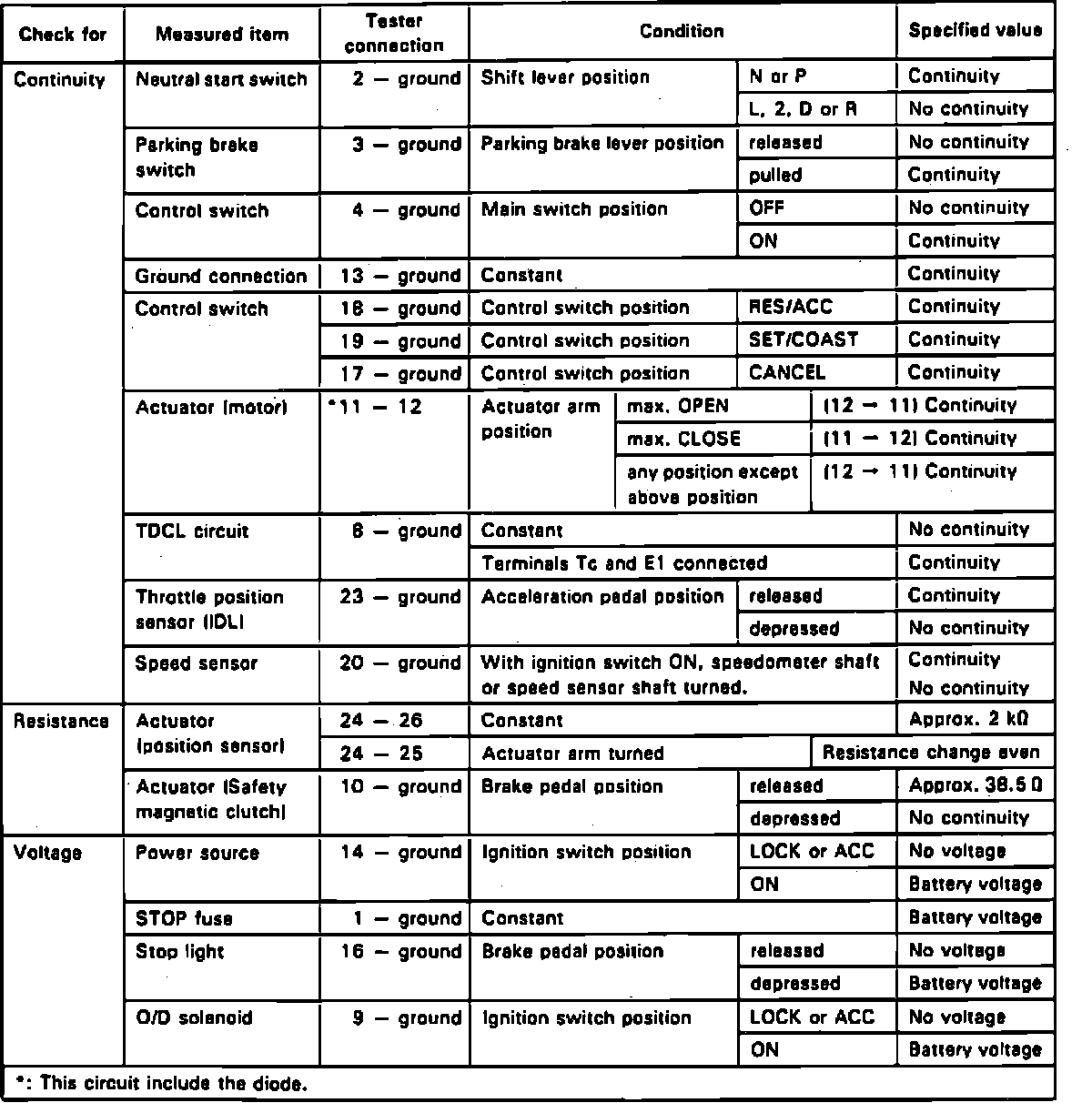

Fig. 61 System Circuit Test:
