Control Module Terminal ID
>>
With Manual Transmission
With Manual Transmission

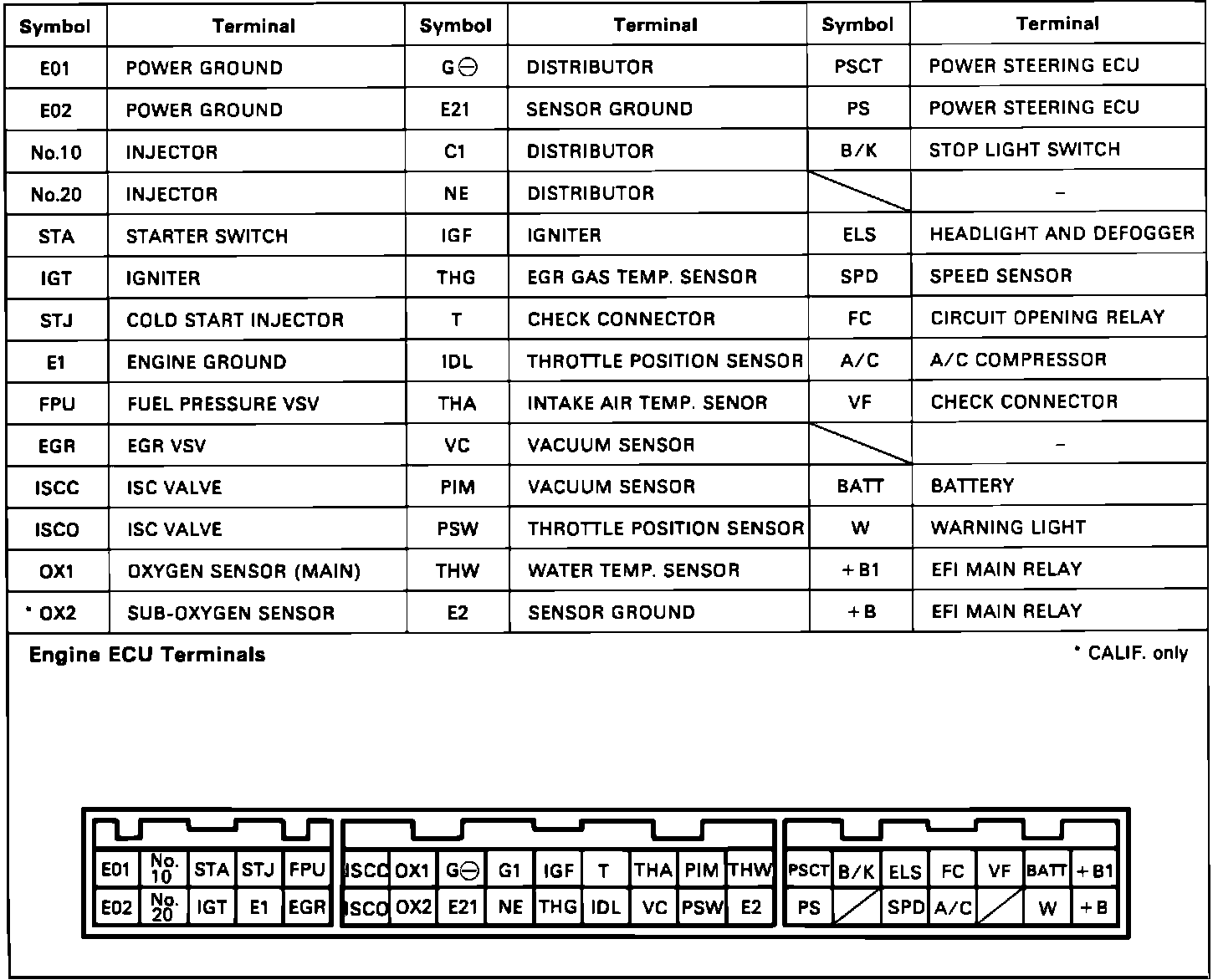

ECU Terminal Pin-outs (w/o Electronic Controlled Transaxle):
