EGR Control Solenoid: Testing and Inspection

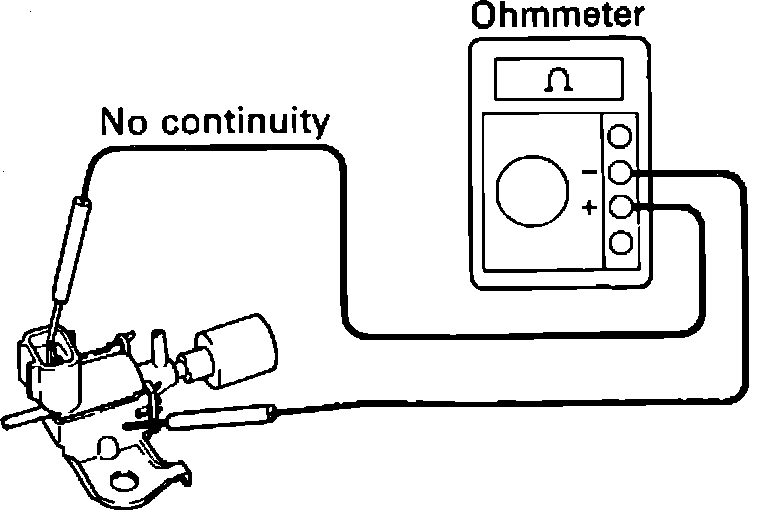

Fig. 60 Testing VSV For Short Circuit:

Fig. 59 Testing VSV For Open Circuit:

1. Disconnect electrical connector and vacuum hoses from the vacuum switching valve. Remove the VSV from the engine.
2. Using an ohmmeter, check for continuity between the terminals and the housing body. Fig. 60
3. If there is any continuity, replace the VSV.
4. Using an ohmmeter, check the resistance between the terminals, Fig. 59. The resistance should be 33 - 39 Ohms at 68°F ambient temperature.
5. If not as specified, replace the VSV.

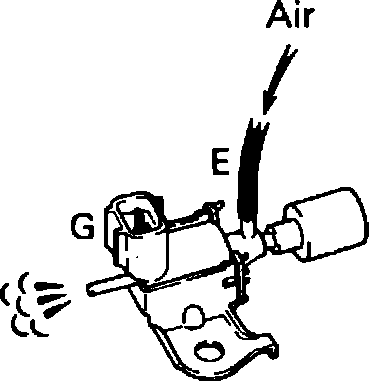

Fig. 61 Testing VSV Operation:

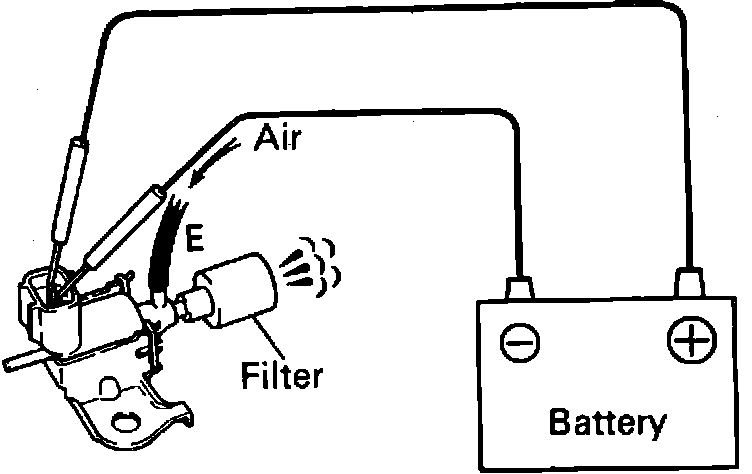

Fig. 62 Testing VSV Operation - Current Applied:

6. Check VSV operation by blowing air into pipe E, Fig. 61. If air does NOT flow through pipe G, replace the VSV.
7. Apply battery voltage across terminals. Fig. 62
8. Check that air flows from pipe E through the filter.
9. If not as specified, replace the VSV.
10. Reinstall the VSV. Reconnect electrical connector and vacuum hoses.
