Component Pin-Out Locations
>>
With Automatic Transmission
With Automatic Transmission

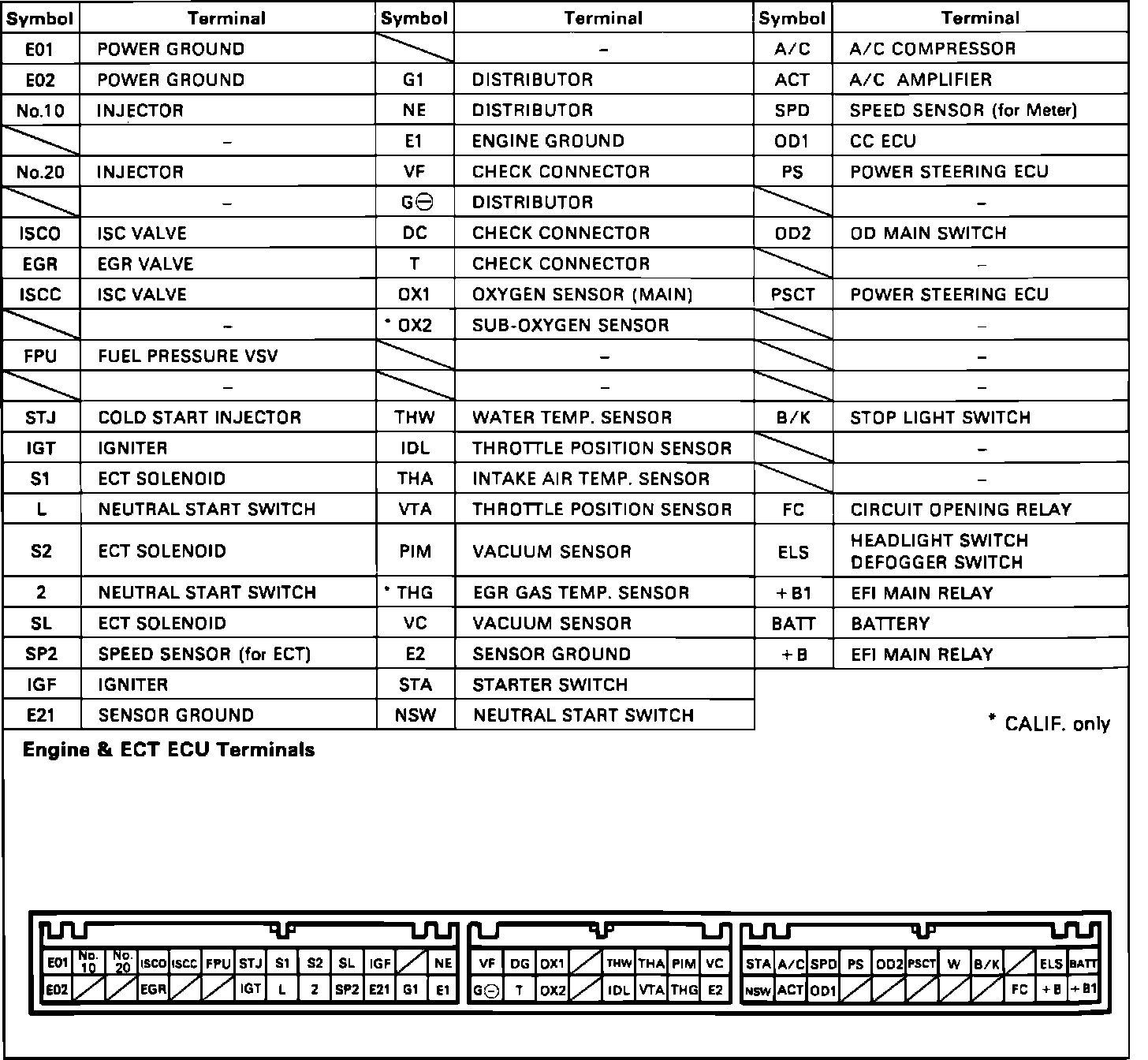

ECU Terminal Pin-outs (w/ Electronic Controlled Transaxle):
