Landcruiser 4WD L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Differential Lock
Differential Lock

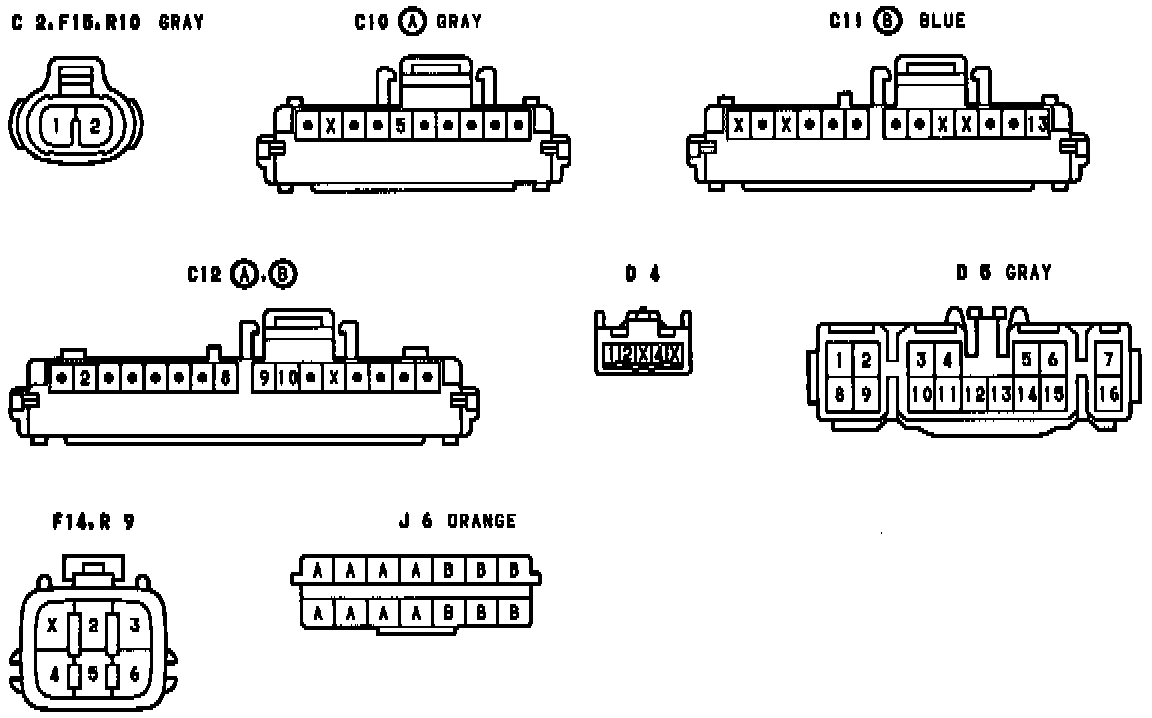

Front/Rear Differential Lock Connector Views:
