Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1994
>>
Landcruiser 4WD L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
Transfer Case

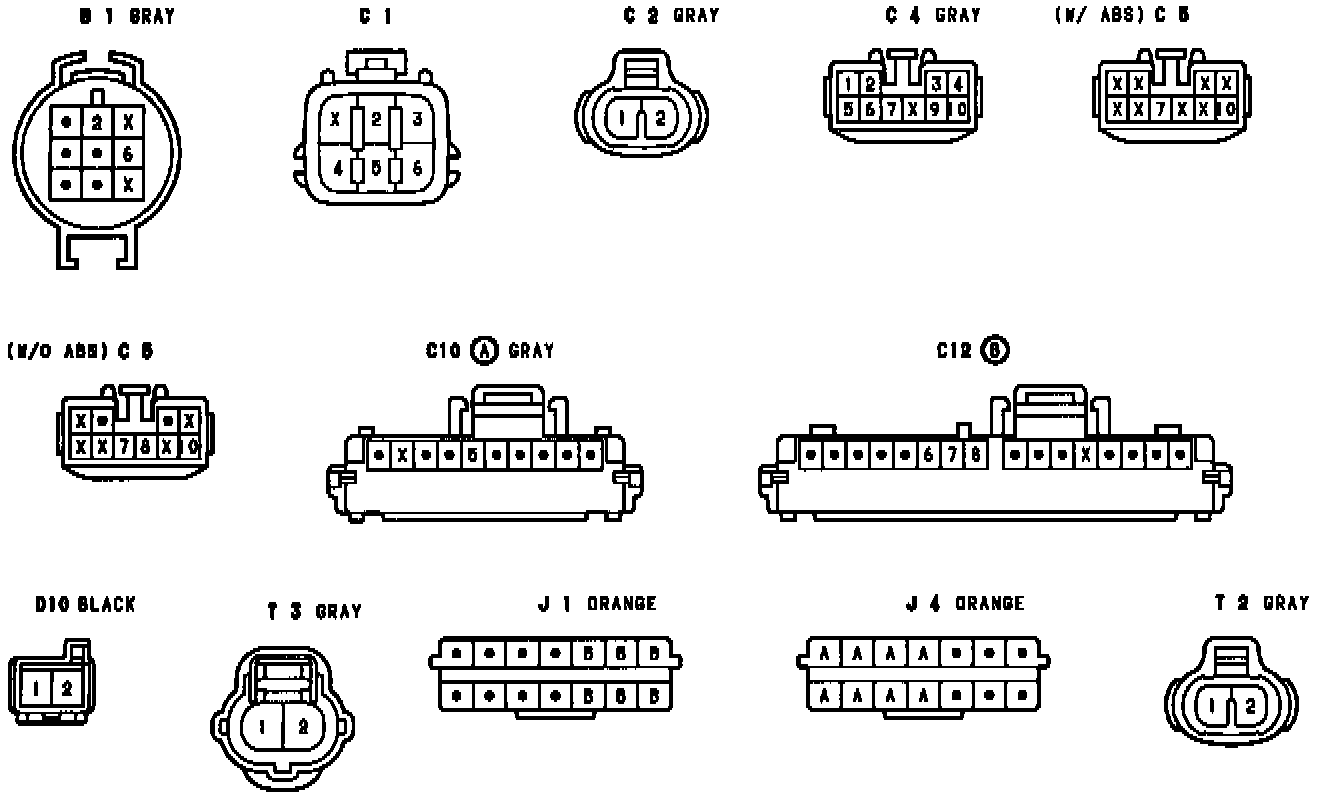

Center Differential Lock Connector Views:
