Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1994
>>
Landcruiser 4WD L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>

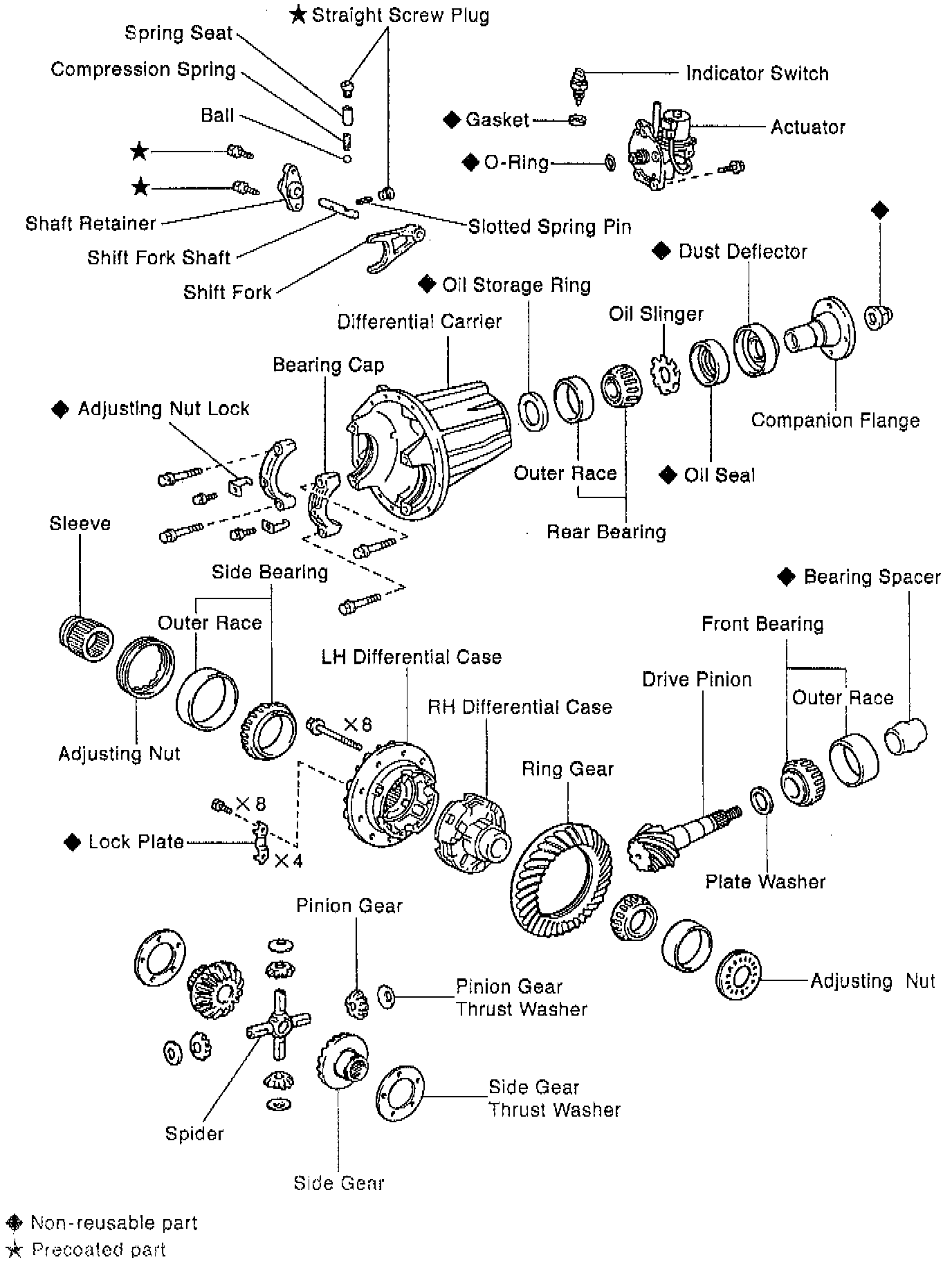

Exploded Views
>>
Differential Assembly
>>
Front
>>
With Differential Lock
With Differential Lock
