Home
>>
Toyota
>>
1994
>>
Landcruiser 4WD L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Additional Locations
>>
Engine Compartment
Engine Compartment

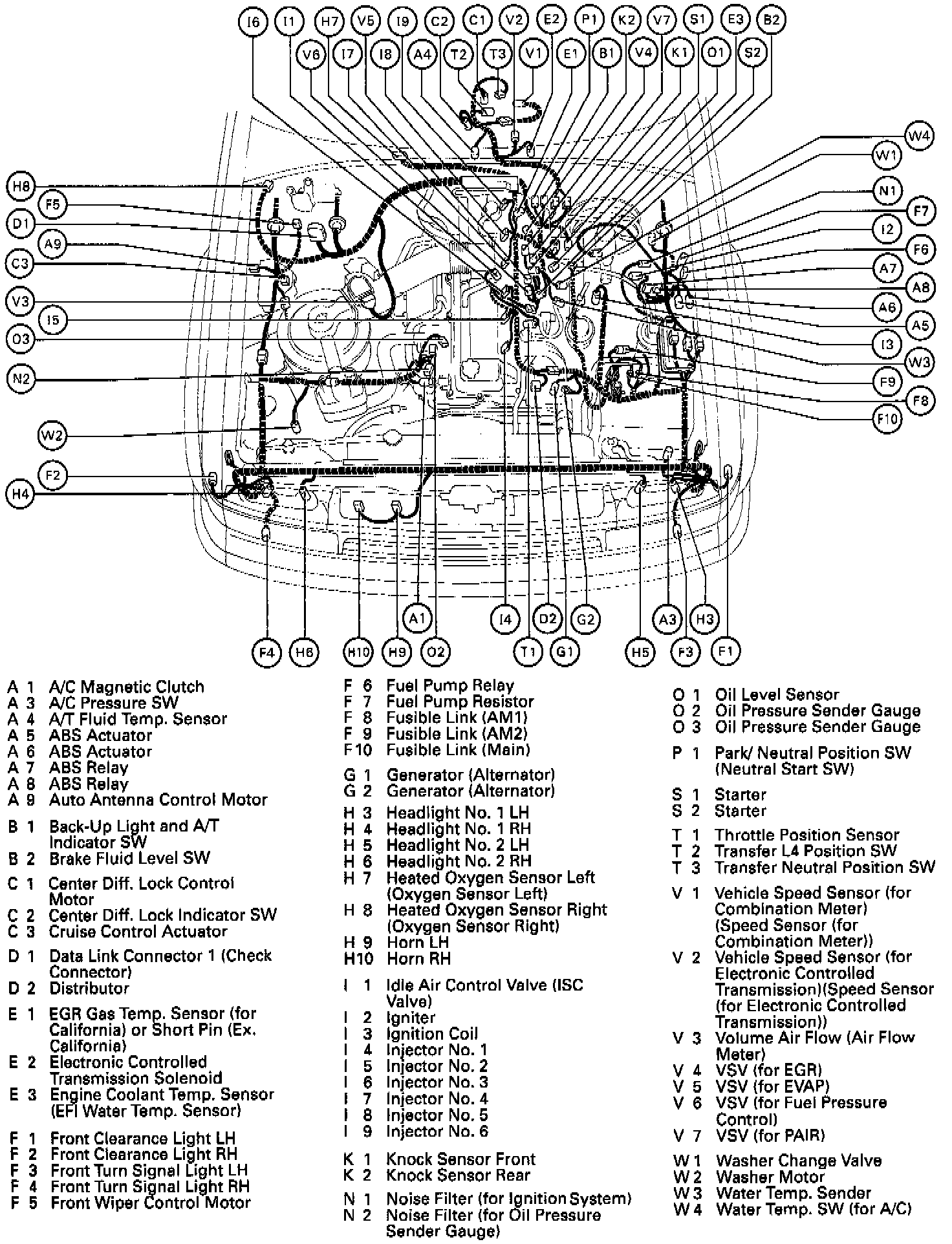

Engine Compartment Electrical Wiring Routing:
