Vehicle Ride Height

Fig. 8 Front Ride Height Measurement:

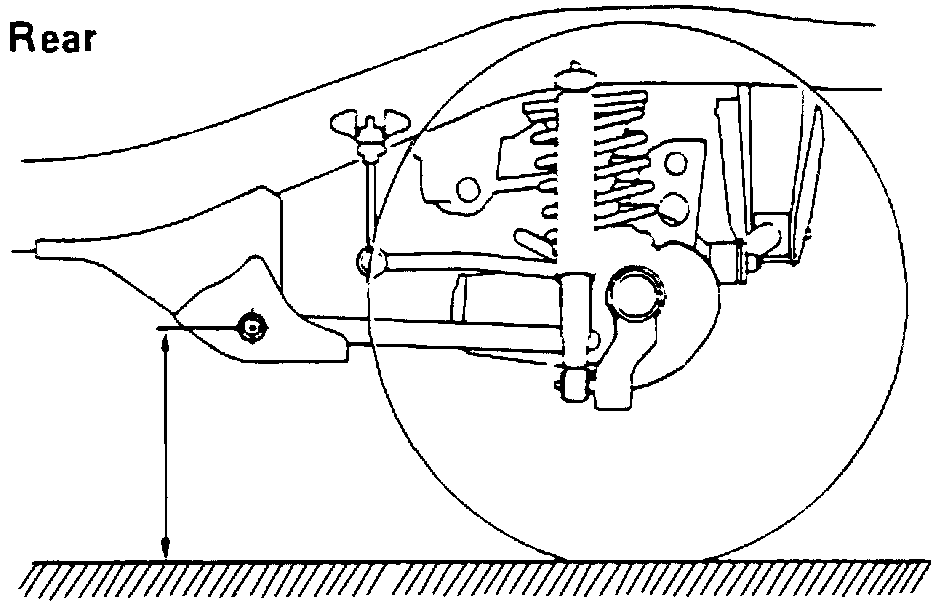

Fig. 12 Rear Vehicle Ride Height Measurement.:

Refer to Figs. 11 and 12 for vehicle ride height check locations. For models with tire size P235/75 R15, the front and rear should measure 13.193 inches. For models with tire size 31x10.50 R15LT (C), the front and rear should measure 14.193 inches.
