Air Flow Meter/Sensor: Service and Repair
PROCEDURERemoval
1. Disconnect negative terminal cable from battery.
2. Disconnect volume air flow meter connector and wire clamp.
3. Disconnect cruise control actuator cable.
4. Remove air cleaner cap, volume air flow meter and silencer.
- Disconnect the air cleaner hose from the volume air flow meter.
- Disconnect the No.2 air hose from the air injection reed valve.

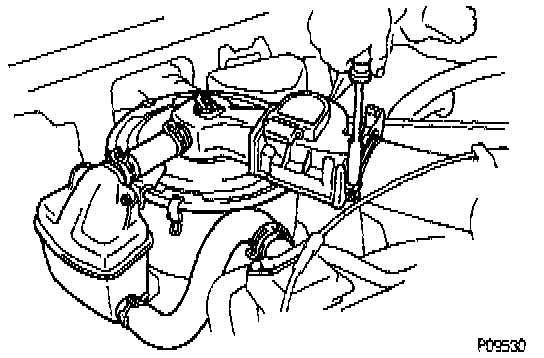

- Disconnect the three clamps, and remove the wing nut, air cleaner cap, volume air flow meter and silencer.
5. Remove volume air flow meter from air cleaner cap.

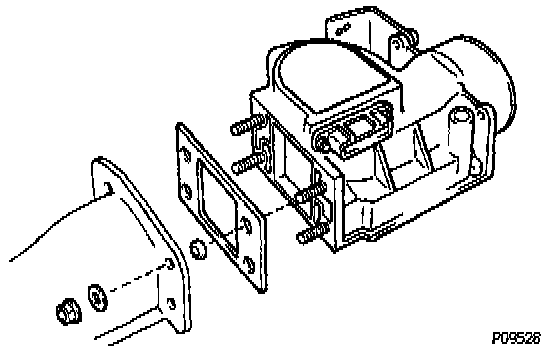

- Remove the 4 nuts, plate washers, volume air flow meter. gasket and 4 collars.

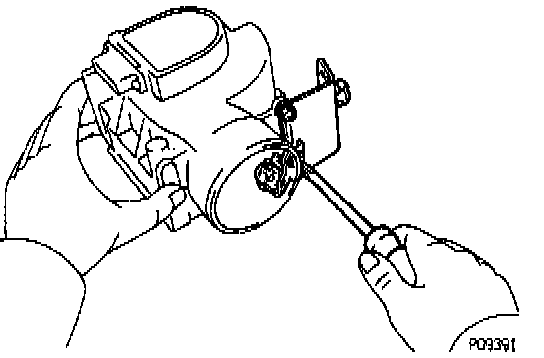

- Remove the 2 screws, bolt and bracket.
Installation
1. Install volume air flow meter to air cleaner cap.
- Install the bracket with the 2 screws and bolt.
Torque: 4.9 Nm (43 in lb)

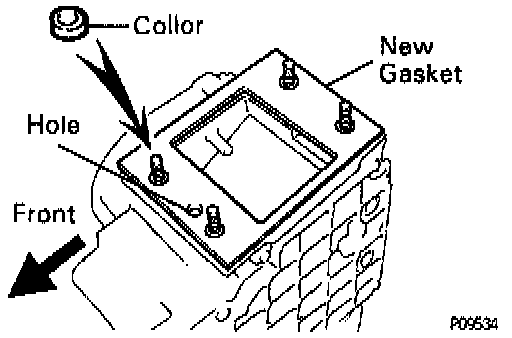

- Place a new gasket and the 4 collars on the volume air flow meter.
- Install the volume air flow meter with the 4 plate washers and nuts.
Torque: 10 Nm (7 ft lb)
2. Install air cleaner cap, volume air flow meter and silencer.
- Install the air cleaner cap to the air cleaner case with the 3 clips and wing nut.
- Connect the No.2 air hose to the air injection reed valve.
- Connect the air cleaner hose to the volume air flow meter.
3. Connect cruise control actuator cable.
4. Connect volume air flow meter connector and wire clamp.
5. Connect negative terminal cable to battery.
