EGR Backpressure Transducer: Testing and Inspection

INSPECTION

1. Inspect exhaust gas recirculation vacuum modulator operation.





- Disconnect the vacuum hoses from ports P, Q and R of the exhaust gas recirculation vacuum modulator.
- Block ports P and R with your finger.

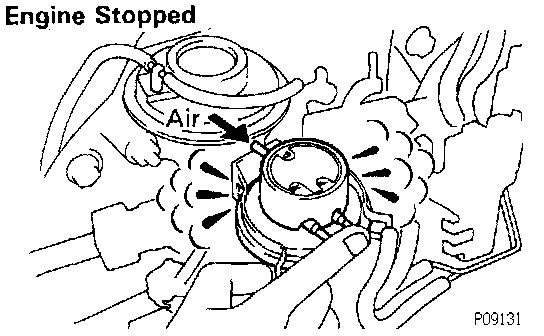

- Blow air into port Q, and check that the air passes through to the air filter side freely.

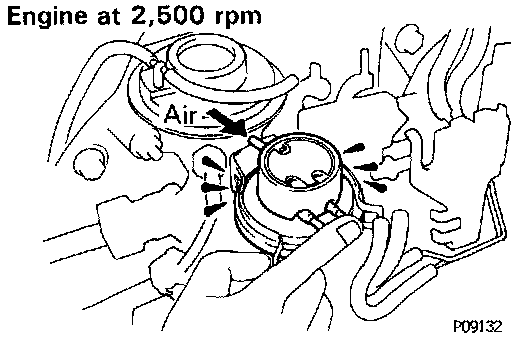

- Start the engine, and maintain speed at 2,500 rpm.
- Repeat the above test. Check that there is a strong resistance to air flow.
- If operation is not as specified, replace the exhaust gas recirculation vacuum modulator.
