Knock Sensor: Testing and Inspection

INSPECTION

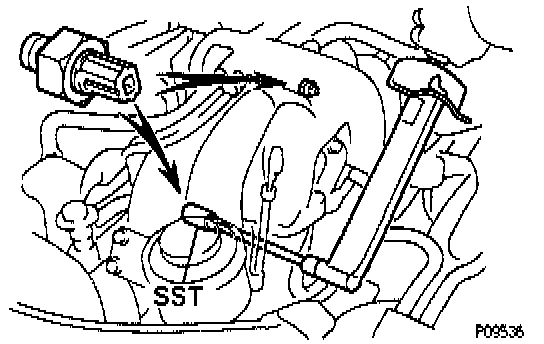

1. Remove knock sensor.





- Disconnect the knock sensor connector.
- Using SST, remove the knock sensor (SST 09816-30010).

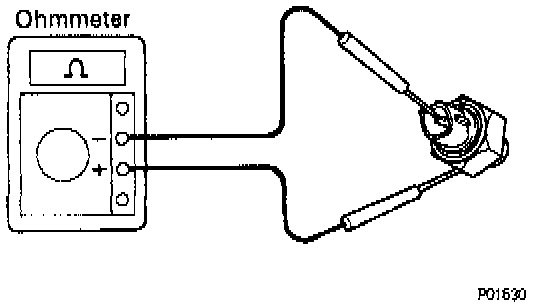

2. Using an ohmmeter, check that there is no continuity between the terminal and body.





- If there is continuity, replace the sensor.

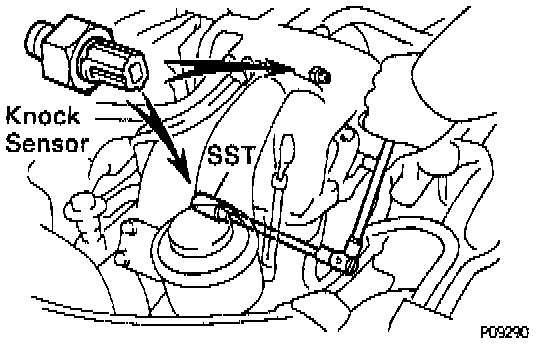

3. Reinstall knock sensor.





- Using SST, install the knock sensor. SST 09816-30010

Torque: 44 Nm (33 ft lb)

- Connect the knock sensor connector.
