Computers and Control Systems: Locations

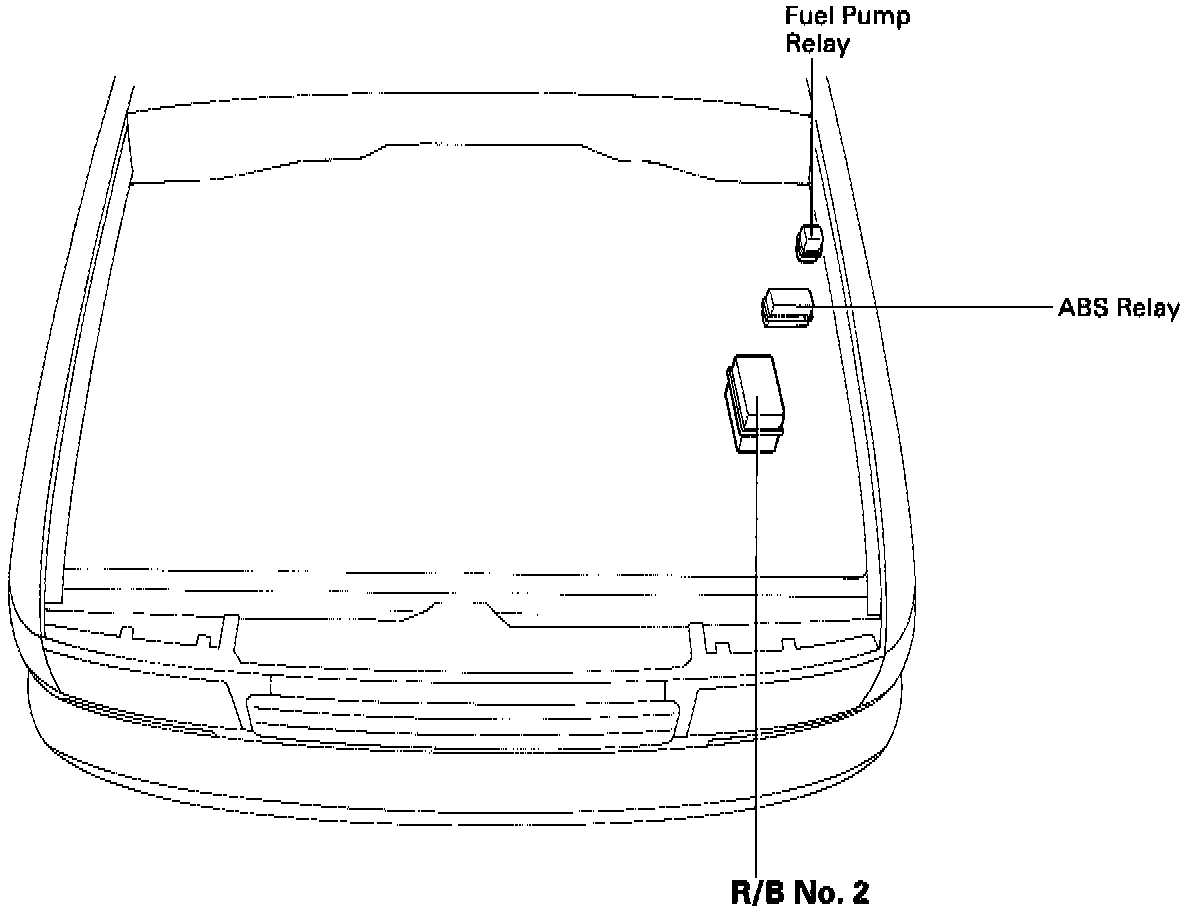

Engine Compartment Relay Locations:
Relay Locations:

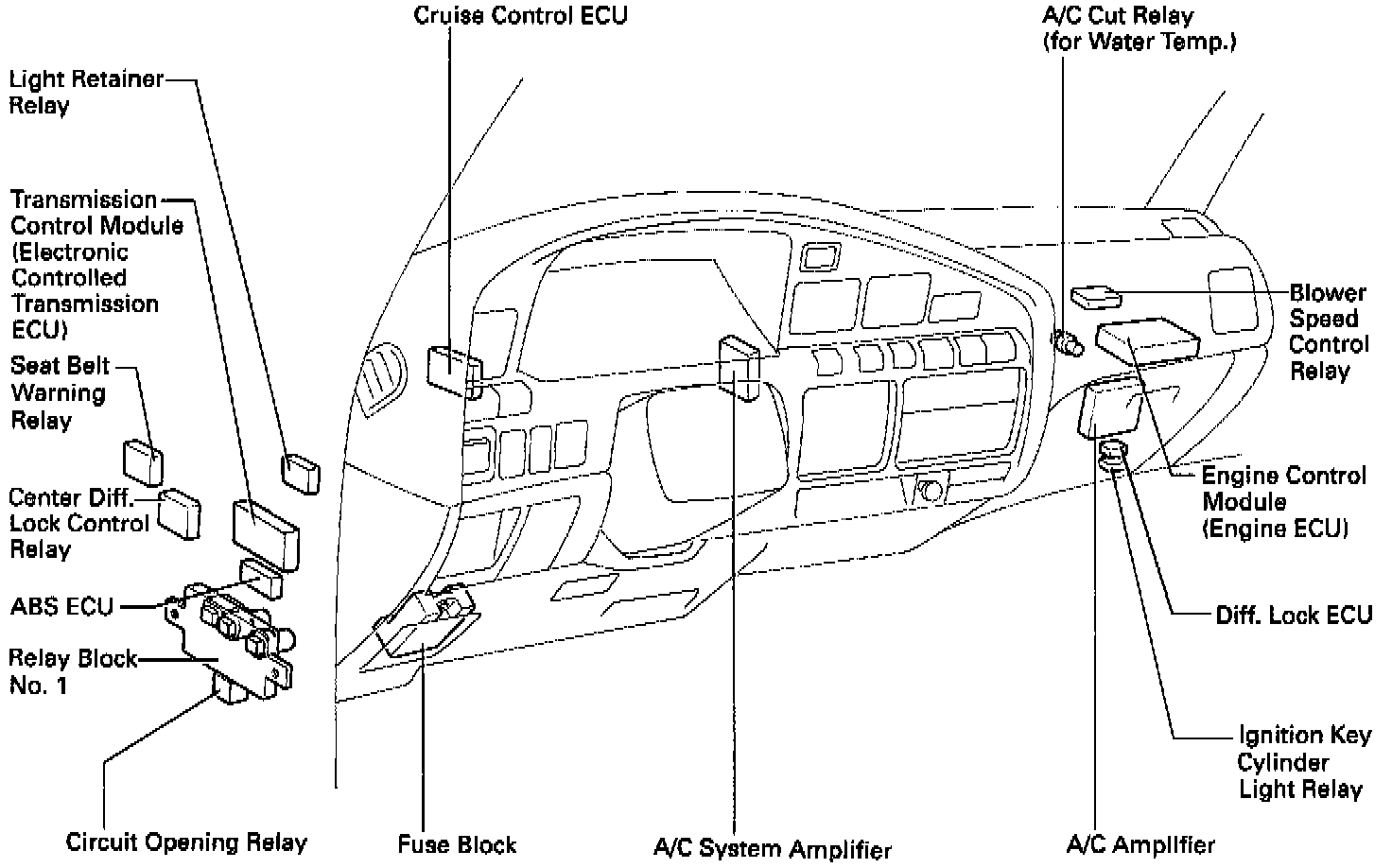

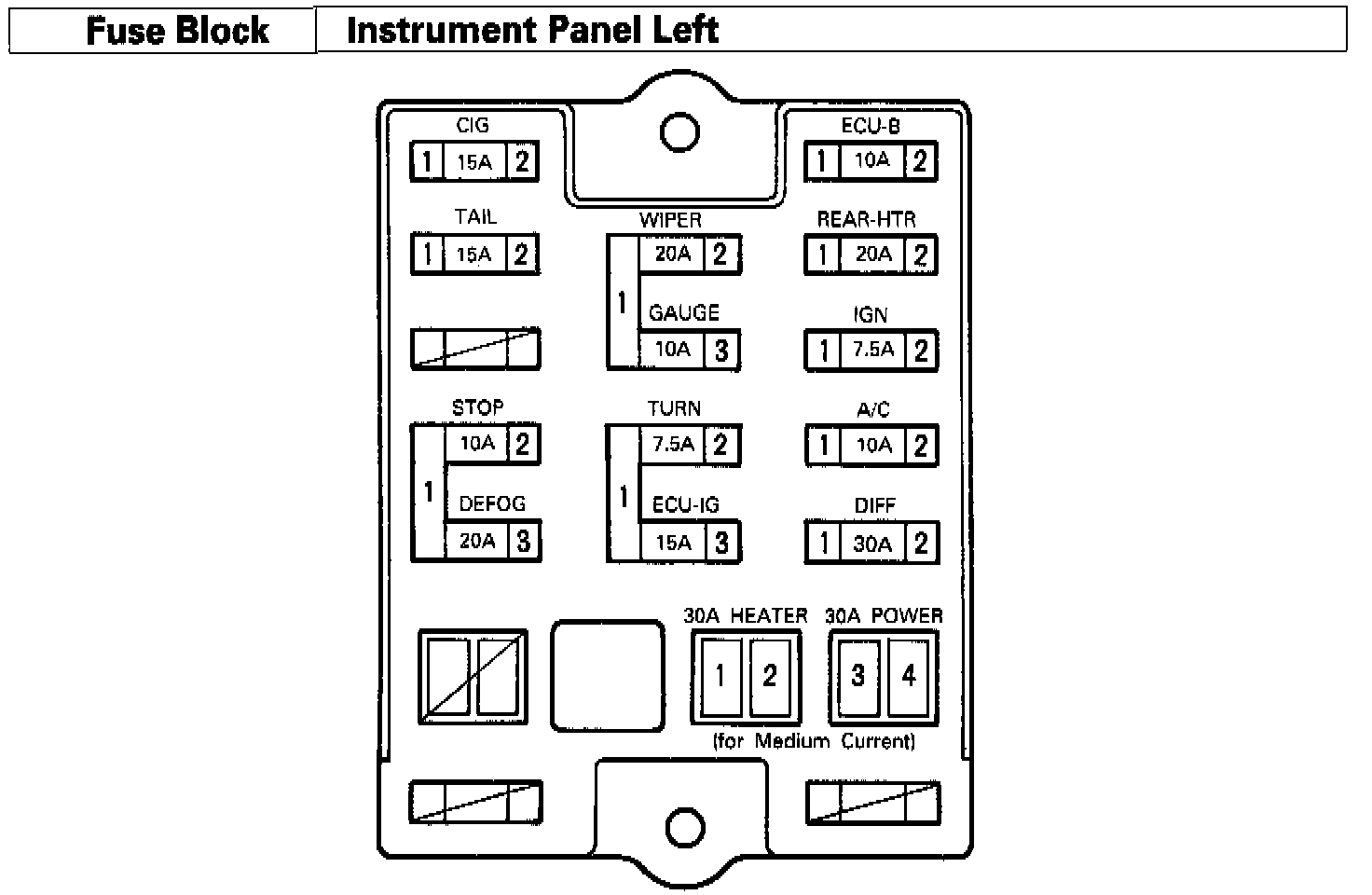

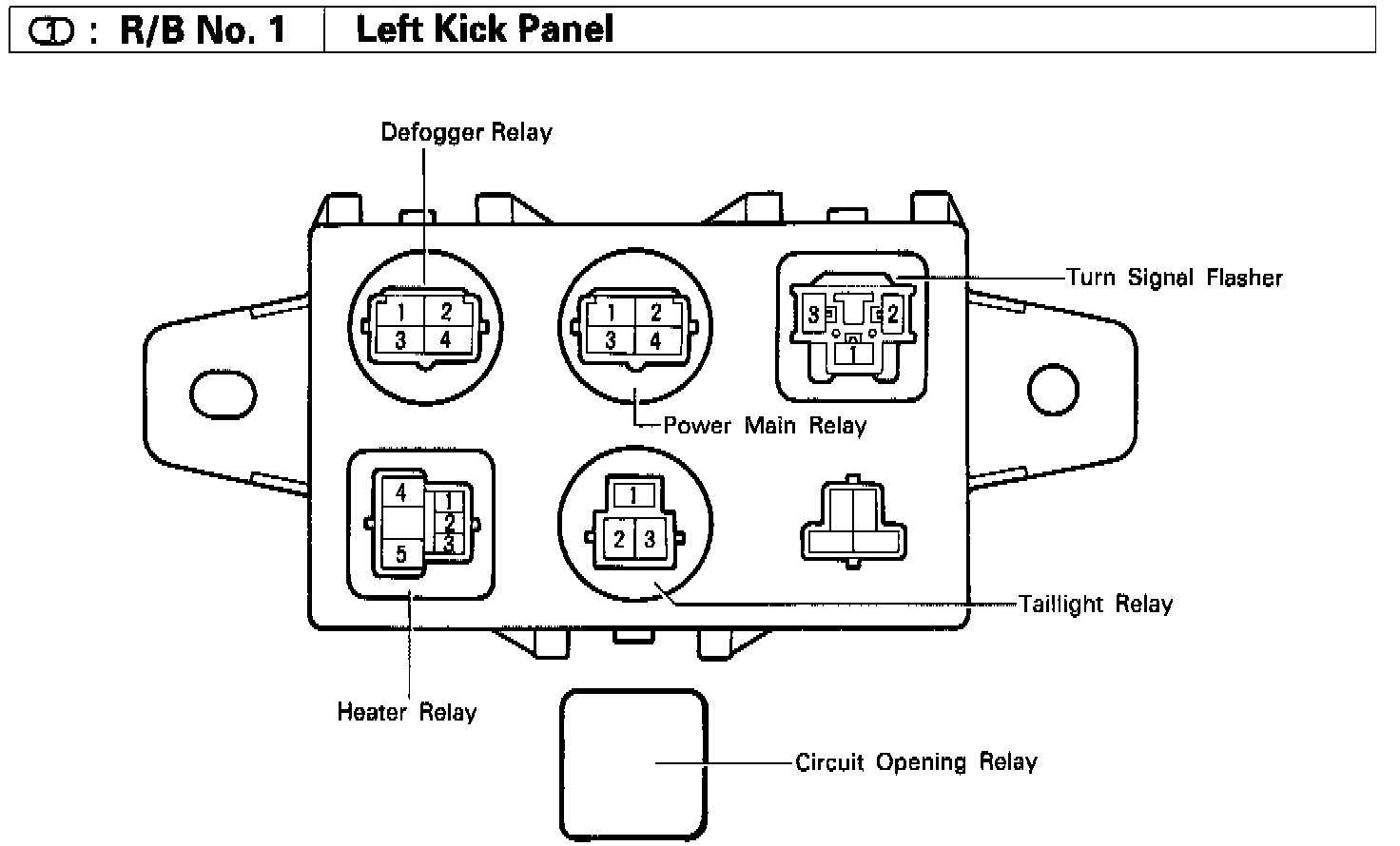

Instrument Panel Relay Locations:
Relay Locations:
Relay Locations:
