Specifications
>>
Electrical Specifications
>>
Powertrain Management
>>
Coolant Temperature Sensor/Switch (For Computer)
Coolant Temperature Sensor/Switch (For Computer)

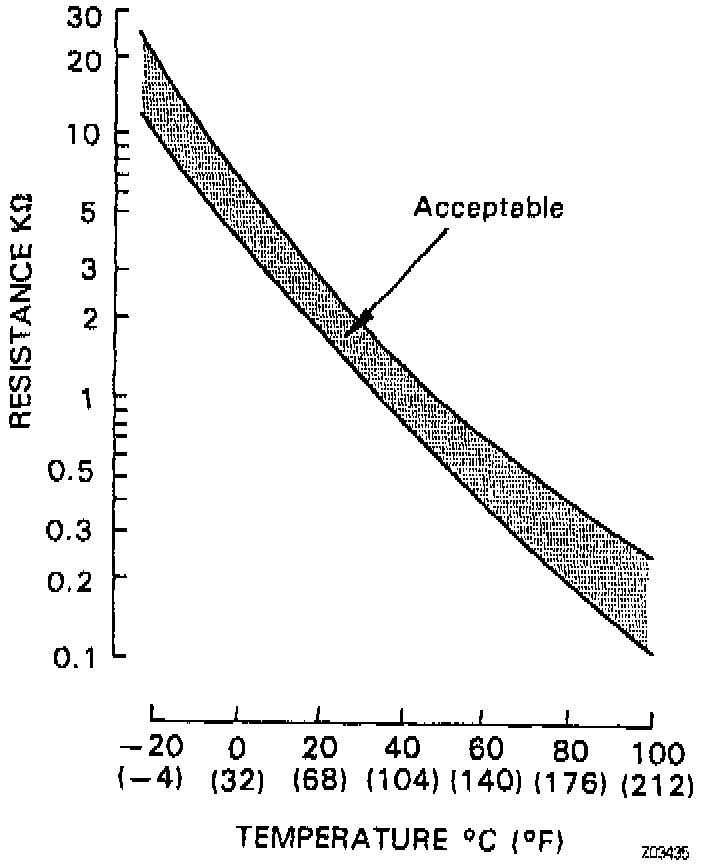

Resistance: Refer to the chart graph above.
