Removal





Remove the 2 bolts in front of the head before the other head bolts are removed.

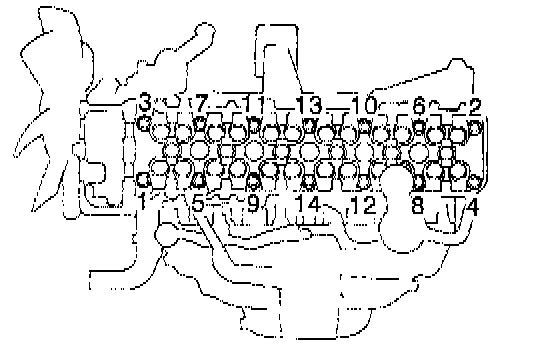

Uniformly loosen and remove the 14 cylinder head bolts, in several passes, in the sequence shown.

Note: Cylinder head warpage or cracking could result from removing bolts in incorrect order.
