Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1994
>>
MR2 L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Component Locations
Component Locations
Fuel System Components

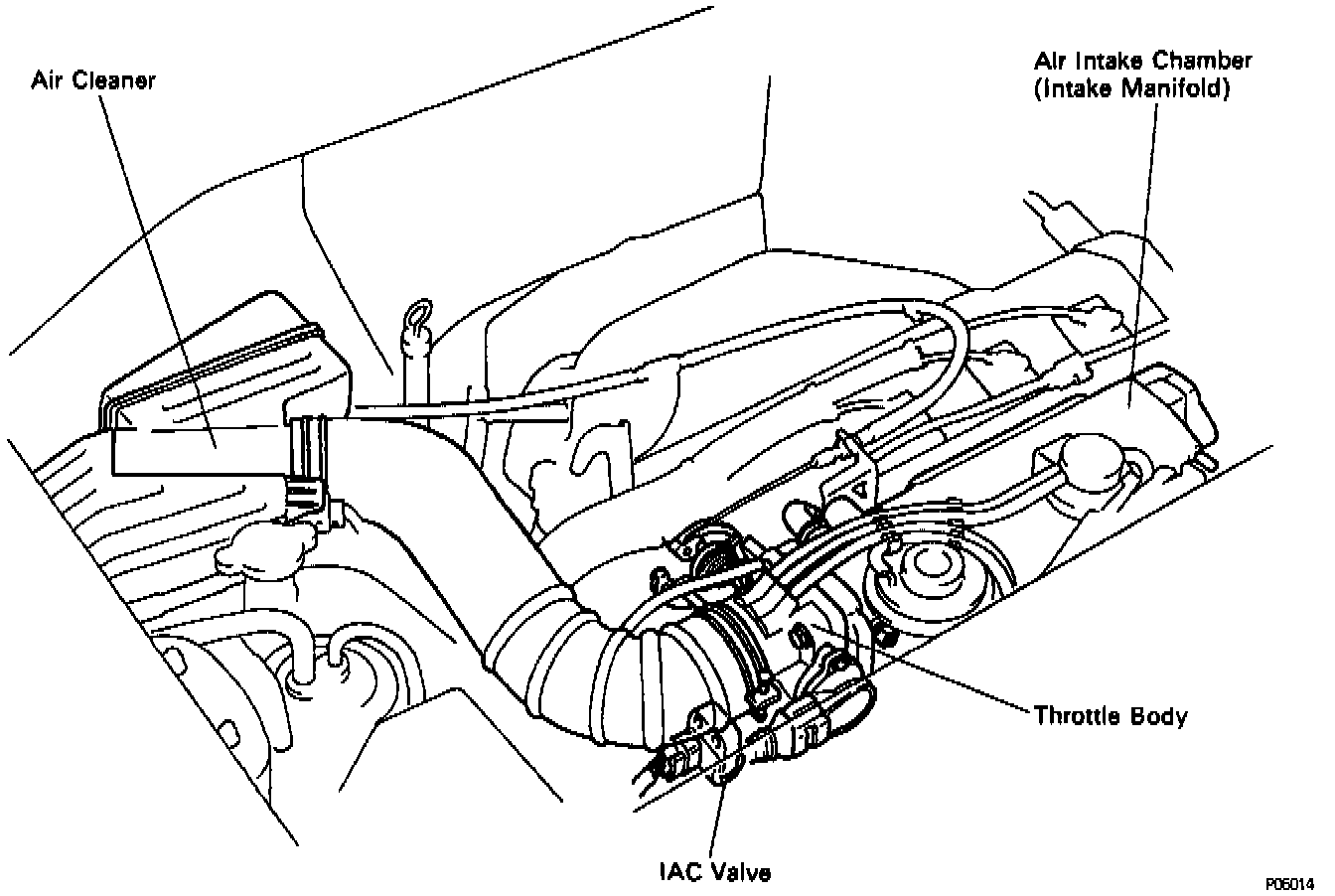

Induction System Components

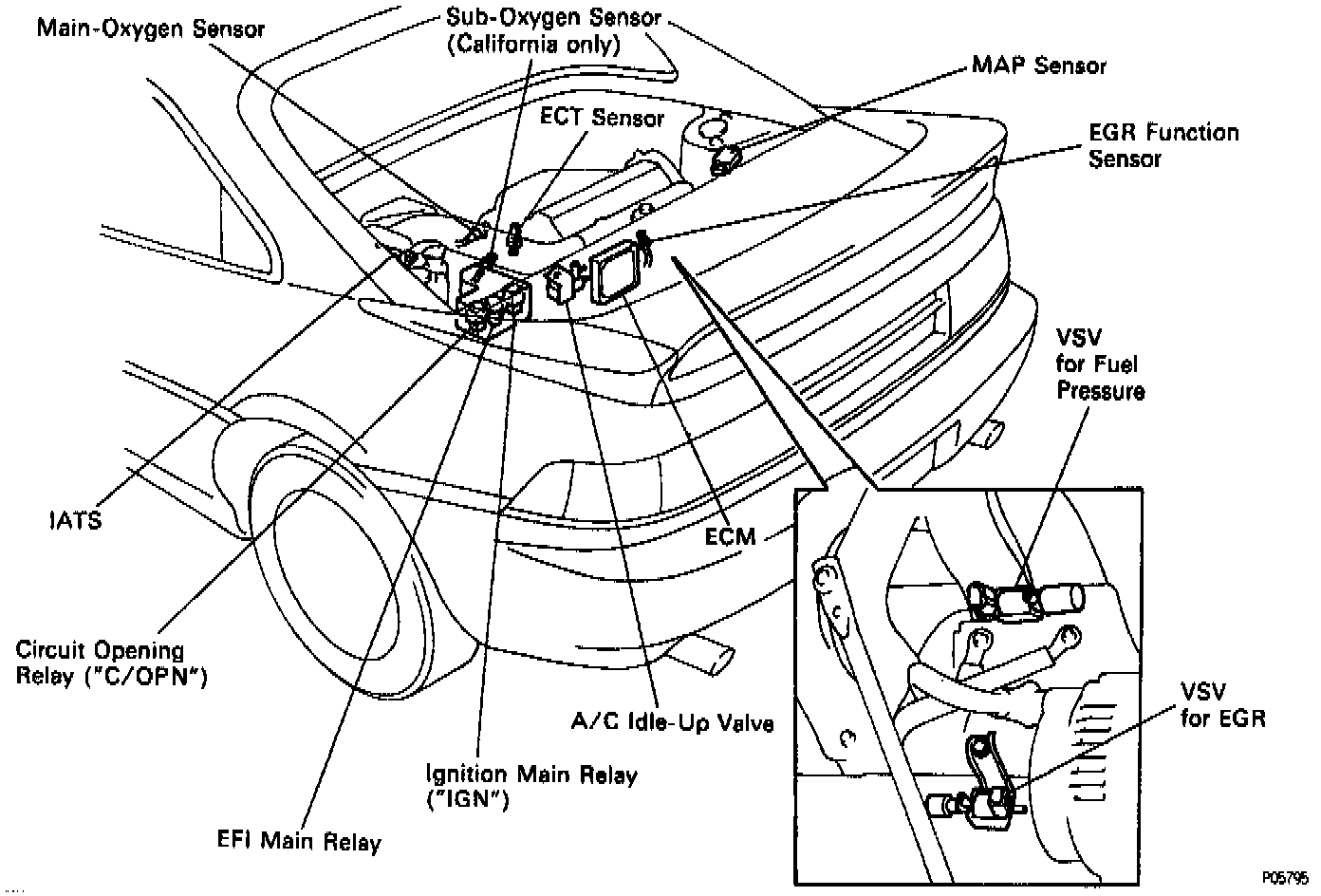

Electronic Control System Components
