Home >> Toyota >> 1994 >> MR2 L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations

Transmission Control Systems: Locations

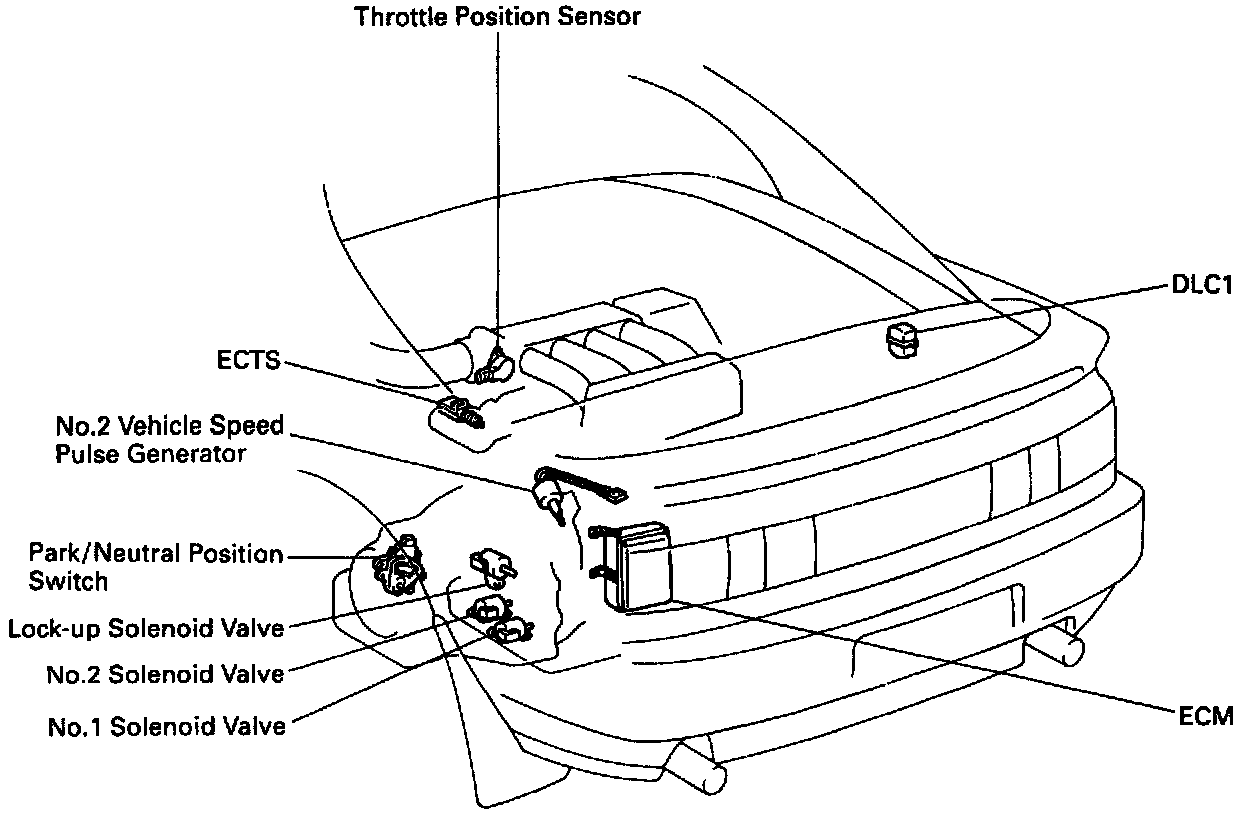

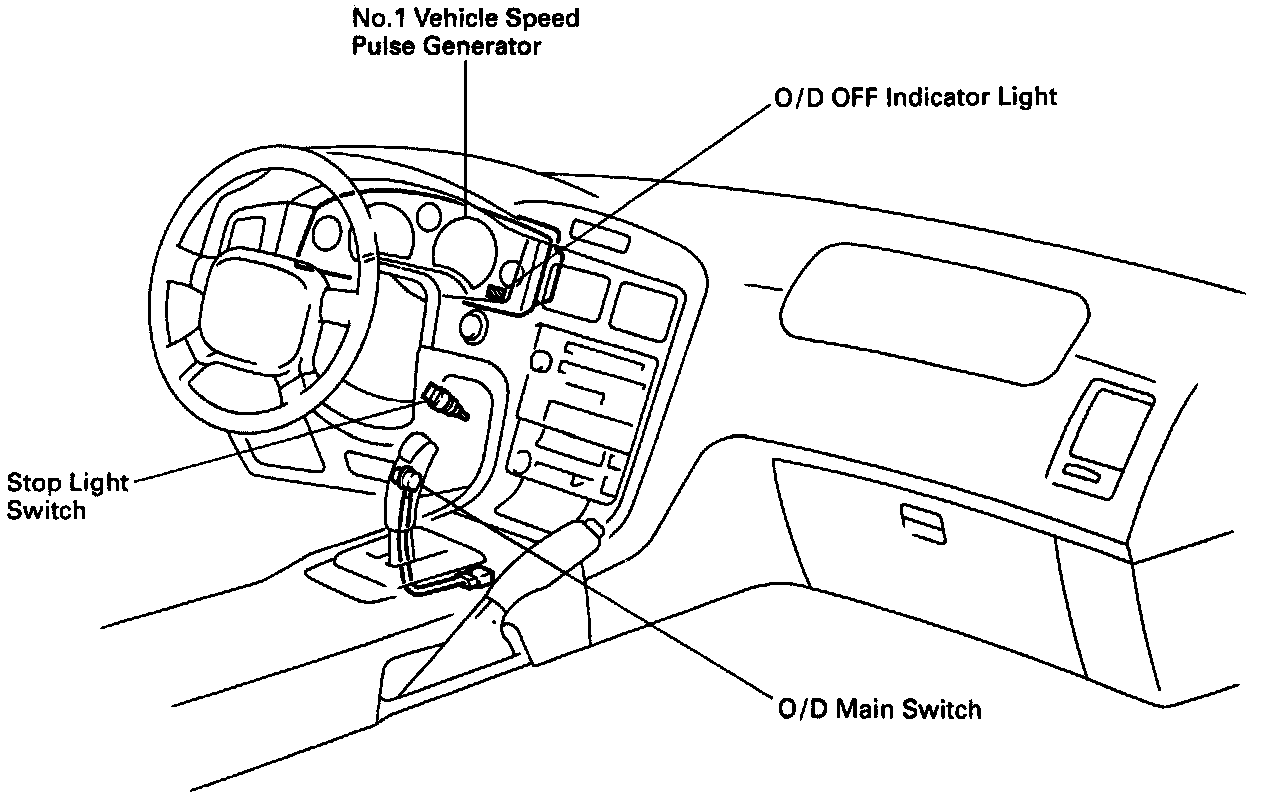

Electronically Controlled Transaxle - Components:
