Removal

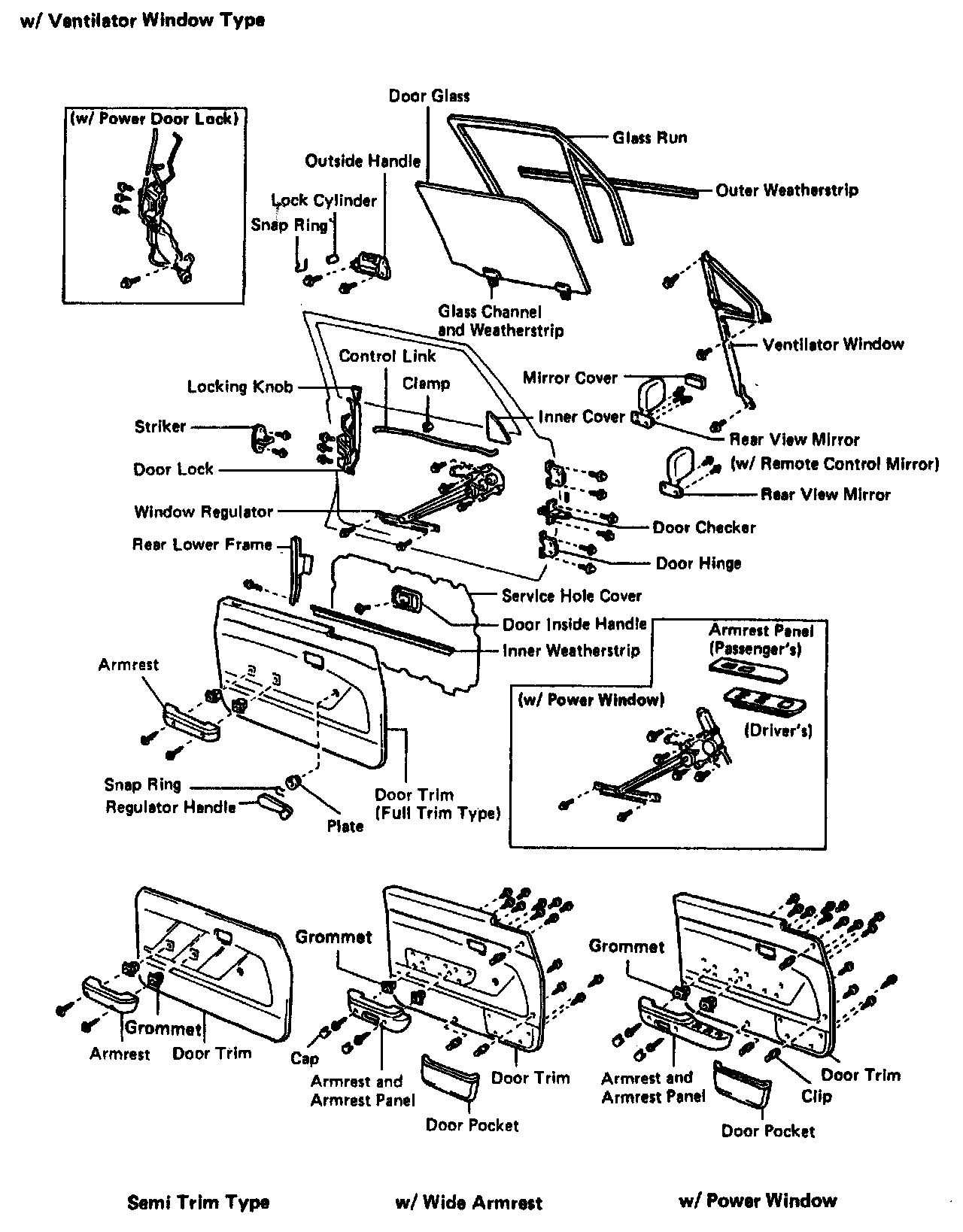

FRONT DOOR COMPONENTS






FRONT DOOR DISASSEMBLY
1. W/O Power Window:
REMOVE REGULATOR HANDLE
Pull off the snap ring with a cloth and remove the regulator handle and plate.






2. REMOVE DOOR INSIDE HANDLE
(a) Remove the screw and slide the handle forward.
(b) Disconnect the handle from the control link and remove the handle.






3. REMOVE INNER COVER
(a) Using a screwdriver, pry loose and remove the inner cover.

HINT: Tape the screwdriver tip before use.

(b) W/ Ventilator Window:
Remove the 3 screws.
4. REMOVE REAR VIEW MIRROR
W/O Ventilator Window:
(a) w/ Remote Control Mirror:
Using a screwdriver, pry loose a clip and remove the inner cover.
(b) Remove the 3 screws and the mirror.
w/ Ventilator Window:
(a) W/ Remote Control Mirror:
Disconnect the connector.
(b) W/O Remote Control Mirror:
Remove the mirror cover, the 2 screws and the mirror.
W/ Remote Control Mirror:
Remove the mirror cover, the 3 screws and the mirror.
5. REMOVE DOOR TRIM
(a) W/ Wide Armrest:
Remove the 2 caps and the 2 screws from the armrest.
Semi Trim Type and Full Trim type, W/O Wide Armrest:
Remove the 2 screws and the armrest.
(b) w/ Power Window:
Remove the armrest panel by pulling upward, then disconnect the connectors.
(c) W/ Wide Armrest:
Remove the 3 clips.
Full Trim Type, w/o Wide Armrest:
Remove the clip.
(d) Install the screwdriver between the retainers and door trim to pry it loose.

HINT: Tape the screwdriver tip before use.

(e) Remove the door trim.
(f) W/ Power Window:
Remove the 9 screws and the armrest. W/ Wide armrest, w/o Power Window:
Remove the 7 screws and the armrest.
(g) W/ Wide Armrest:
Remove the 4 screws and the door pocket.
(h) Full Trim Type:
Remove the inner weatherstrip from the door trim.
6. REMOVE SERVICE HOLE COVER






7. W/ Ventilator Window:
REMOVE VENTILATOR WINDOW
(a) Remove the bolt and 2 screws.
(b) Remove the ventilator window by pulling it upward.
8. w/O Ventilator Window:
REMOVE FRONT LOWER FRAME
Remove the bolt and the frame.
9. REMOVE REAR LOWER FRAME
Remove the bolt and the frame.
10. Semi Trim type:
REMOVE INNER AND OUTER WEATHERSTRIP
Pry loose the clip from the edge of the panel and remove the weatherstrip.






11. Full Trim type:
REMOVE OUTER WEATHERSTRIP
Pry loose the clip from the edge of the panel and remove the weatherstrip.
12. REMOVE GLASS RUN
Pry loose the clip from the edge of the panel and remove the weatherstrip.
13. REMOVE INSIDE LOCKING KNOB
Disconnect the link and remove the inside locking knob.






14. REMOVE OUTSIDE HANDLE WITH LOCK CYLINDER AND DOOR LOCK
(a) Disconnect the links from the outside handle with the lock cylinder.
(b) W/ Power Door Lock:
Disconnect the connectors, remove the 3 screws, the bolt and the door lock with the motor.
w/o Power Door Lock:
Remove the 3 screws and the door lock.
(c) Remove the 2 bolts and the outside handle with lock cylinder.
(d) Remove the snap ring and the lock cylinder.






15. REMOVE DOOR GLASS AND WINDOW REGULATOR
(a) Remove the 2 glass channel mounting bolts.
(b) Place the glass in the door cavity.






(c) W/0 Ventilator Window:
Remove the 2 equalizer arm bracket mounting bolts.
(d) W/ Power Window:
Disconnect the connectors, then remove the 4 regulator mounting bolts.
w/ Power window:
Remove the 3 regulator mounting bolts.
(e) Remove the regulator through the service hole.
(f) Remove the glass by pulling it upward.
