Matrix Chart of Problem Symptoms
>>

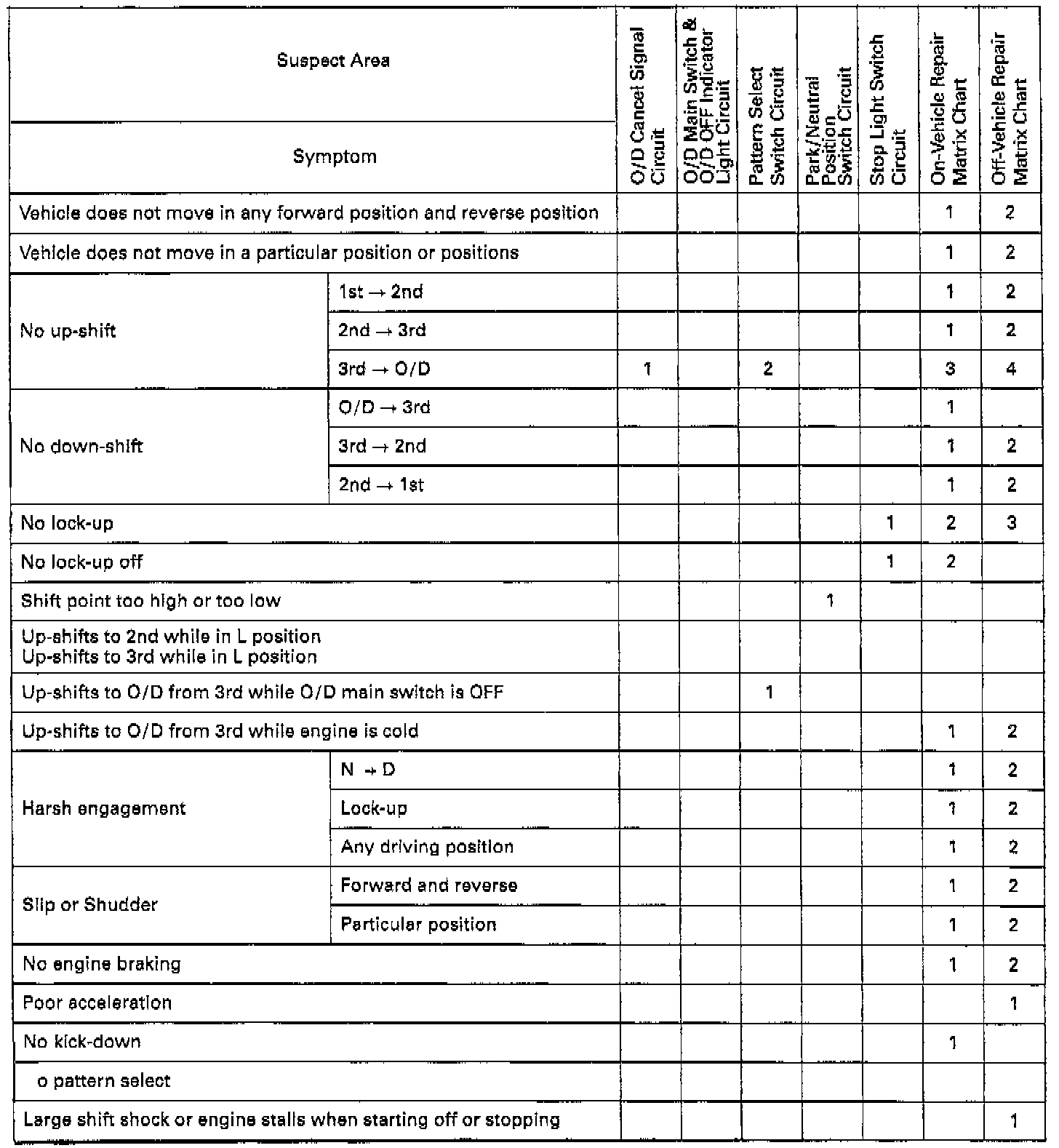

Troubleshooting Matrix Chart
Troubleshooting Matrix Chart
Electronic Circuit Matrix:
