Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1995
>>
Avalon V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Powertrain Management
>>
Throttle Body
Throttle Body

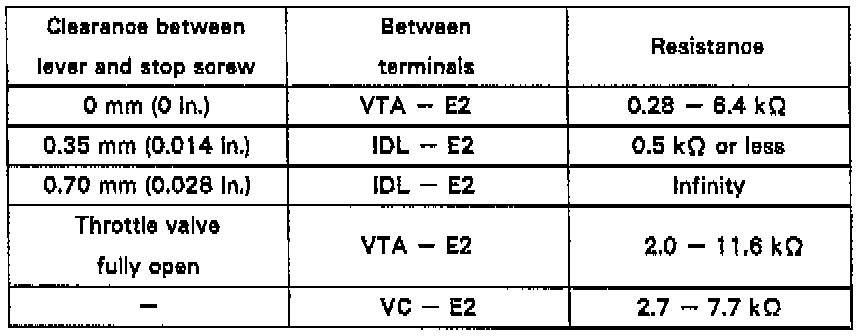

Throttle Position Sensor Terminals Resistance Specifications:
