DTC 32,34 Control Switch Circuit (Cruise Control Switch)
CIRCUIT DESCRIPTION
This circuit carries the SET/COAST RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.
Wiring Diagram:
INSPECTION PROCEDURE

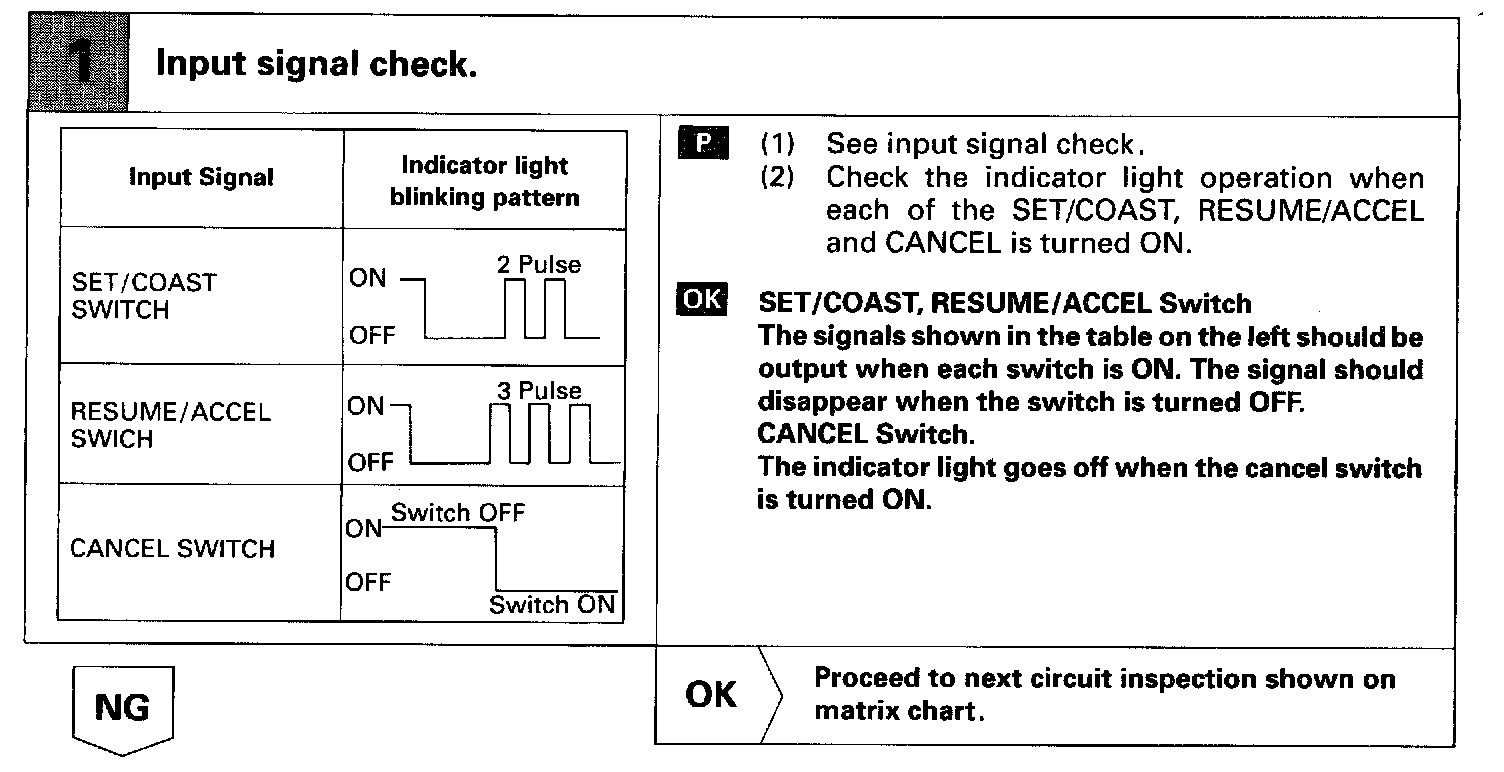

Step 1:
Step 2:
Step 3:
Step 4:
